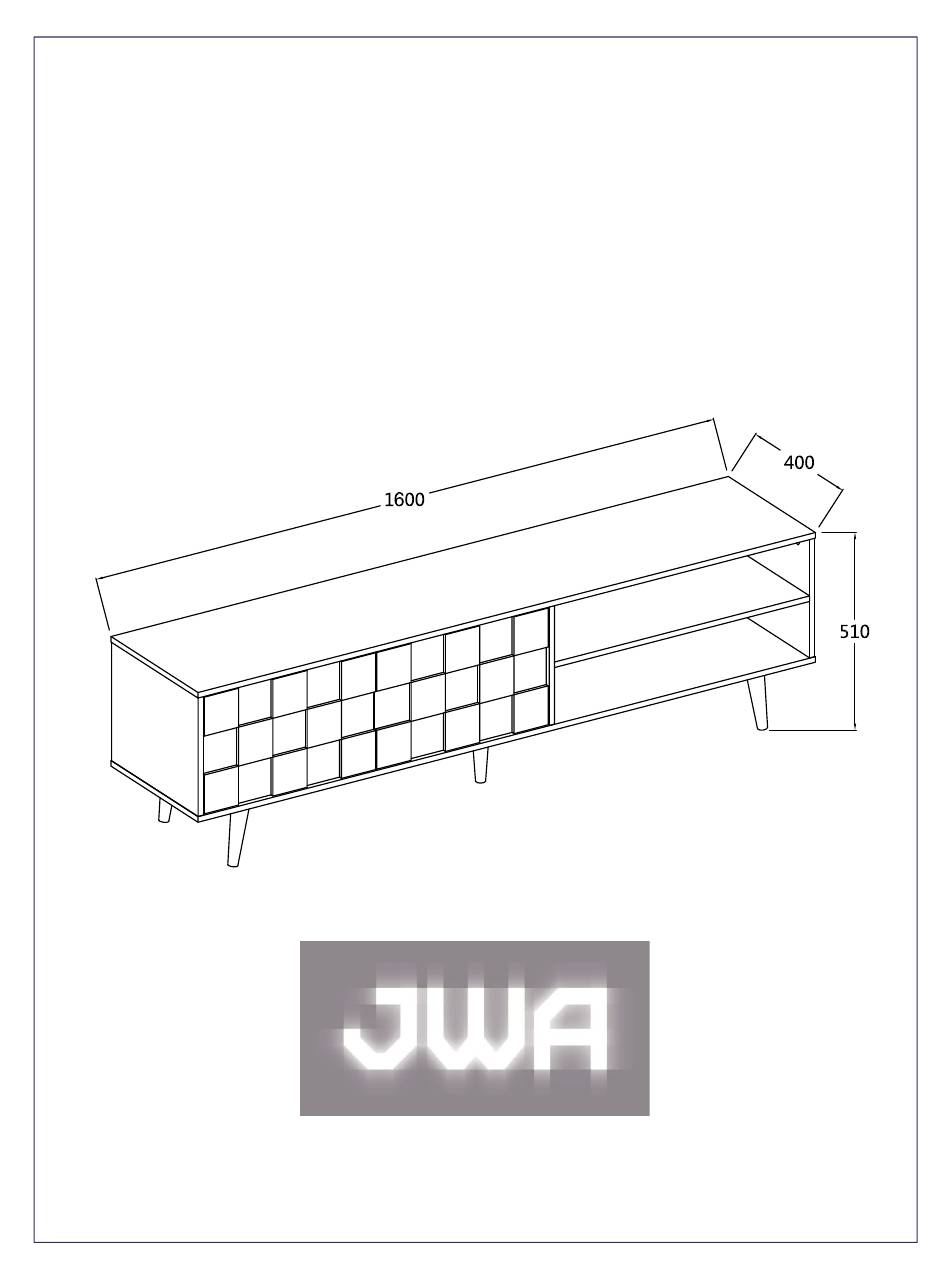

ASSEMBLY INSTRUCTION

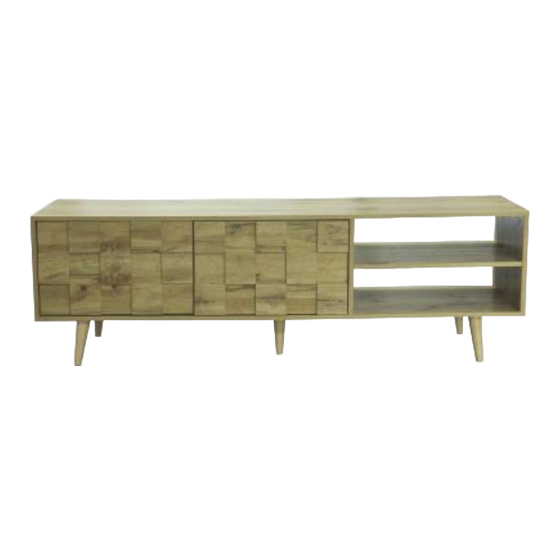

HEDWIG Entertainment Unit
ITEM COD E 73674
mm
mm
mm
Imported by JWA Furniture Pty Ltd, Brisbane Qld Australia.
For any assistance with assembly or for missing parts please refer to your receipt
2021-09-15
1
item code:73674
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JWA HEDWIG 73674
Summary of Contents for JWA HEDWIG 73674
- Page 1 ASSEMBLY INSTRUCTION HEDWIG Entertainment Unit ITEM COD E 73674 Imported by JWA Furniture Pty Ltd, Brisbane Qld Australia. For any assistance with assembly or for missing parts please refer to your receipt 2021-09-15 item code:73674...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. - Page 3 2021-09-15 item code:73674...
-
Page 4: Parts List
PARTS LIST DOOR PANEL TOP PANEL MIDDLE PANEL DOOR PANEL LAMINATES BOTTOM PANEL SIDE PANEL BACKP LANE FEET SIDE PANEL MIDDLE PANEL FEET 2021-09-15 item code:73674... - Page 5 Srew panel (1)(4)(6) with cam pin(A) Screw plastic holder of push open to panel(1) with srew (E) Insert the push open to plastic holder from the side as shown Fix panel (4)(6) to panel (7) with cam lock (B) and dowels (D). 2021-09-15 item code:73674...
- Page 6 Fix panel (3)(4)(5)(6) to panel (1) with cam lock (B) and dowels (D). Insert panel (8)x2 into grooves between panel (3)(5)(6). 2021-09-15 item code:73674...
- Page 7 Attach panel (2) to panel (3)(4)(5)(6) with screw (C) Using allen key(H) to turn screw (C) clockwise to tighten as shown. Attach metal (J) to panel 2 with screw(E) as shown 2021-09-15 item code:73674...
- Page 8 Glue (M) to wood leg(9) and and turn the leg into metal part(J) closewise Turn part(L) to middle leg (10) and fix leg(10) to panel(2) with screw (C) by allen key(H) Insert back panel hook(I)to the back and screw with (E) Fix (P)*2 to top panel (1) with screw(E)as shown.
- Page 9 Fix hinge (F) on panel (11)(12) with screw(E) as shown. Fix metal part of (K) to panel (11)(12) with screw (E) as shown Adjust hinge(F) on the door as shown. Fix wall fixation to wall with (N) and (O) as shown 2021-09-15 item code:73674...
- Page 10 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
