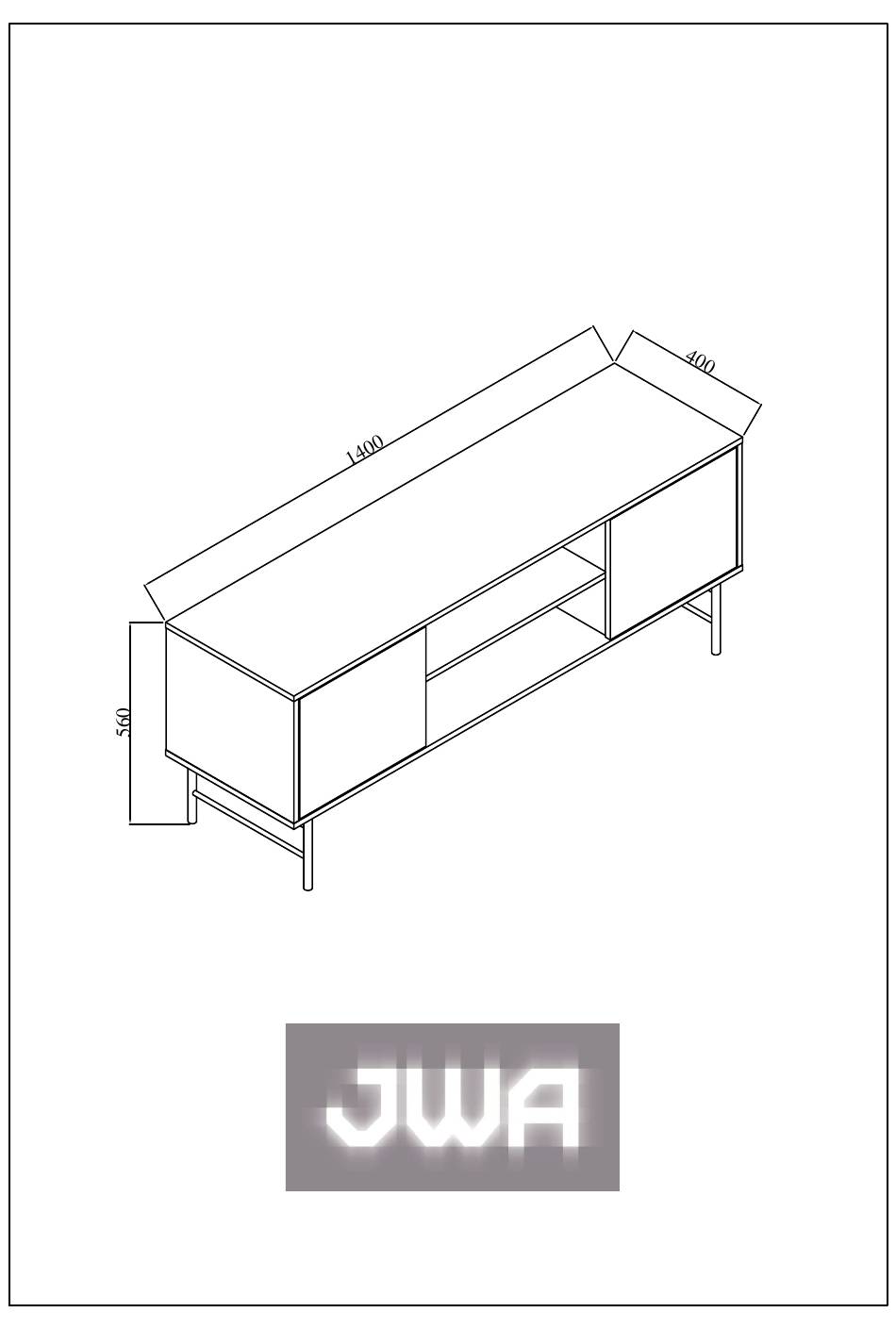

- Page 1 ASSEMBLY INSTRUCTION Frederick Entertainment Unit ITEM CODE 73666 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. - Page 3 Item code:73666 2021-08-27...
-
Page 4: Parts List
PARTS LIST Ø15x12mm 6x35mm 8x30mm 3.5x14mm 7x40mm 12pcs 12pcs 20pcs 42pcs 8pcs M6x30mm 4pcs 2pcs 2pcs 4pcs Ø20x12mm M6x48mm 6x30mm 4x60mm 12pcs 12pcs 2pcs 2pcs 2pcs TOP PANEL DOOR BOTTOM PANEL DOOR SIDE PANEL BACK PANEL SIDE PANEL BACK PANEL MIDDLE PANEL METAL LEG MIDDLE PANEL... - Page 5 STEP 1: Fix dowel (C) and cam pin (A) to top panel (1). STEP 2: Fix plastic support of push open to the top panel with screw (D) and insert the push open into the plastic support.
- Page 6 STEP 3: Fix dowel (C) and cam pin (A) to panels (5)(6). STEP 4: Fix panel (5)(6) to panel (7) with cam lock (B).
- Page 7 STEP 5: Fix panel (3)(4)(5)(6) to panel (1) with cam lock (B). STEP 6: Insert panel (10)( 11 ) into grooves between panel (3)(4)(5)(6). Fix dowel (C) to panel (3)(4)(5)(6).
- Page 8 STEP 7: Attach panel (2) to panel (3)(4)(5)(6) with screw (E) Turn screw (E) clockwise to tighten using allen key (F), as shown. STEP 8: Attach metal leg (12) to support tube (13) with screw (J).Using allen key (F) to fix 80% as shown.
- Page 9 STEP 9: Attach metal leg (12) to bottom panel (2) with screw (K).Using allen key (F ) to fix 100% as shown. STEP 10: Insert the back panel hook (L) into the back and using screw (D) to fix, as shown.
- Page 10 STEP 11: Glue the Part (N) to the back panel, screw (O) from inside of the tv stand into wall plug (M). STEP 12: Insert screw (D) through washer (I) into panel (8)(9). Attach hinge (G) to panel (8)(9) with screw (D),as shown.
- Page 11 STEP 13: Fix door panel (8)(9) to side panel with screw (D).
- Page 12 ASSEMBLY COMPLETE...
- Page 13 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
