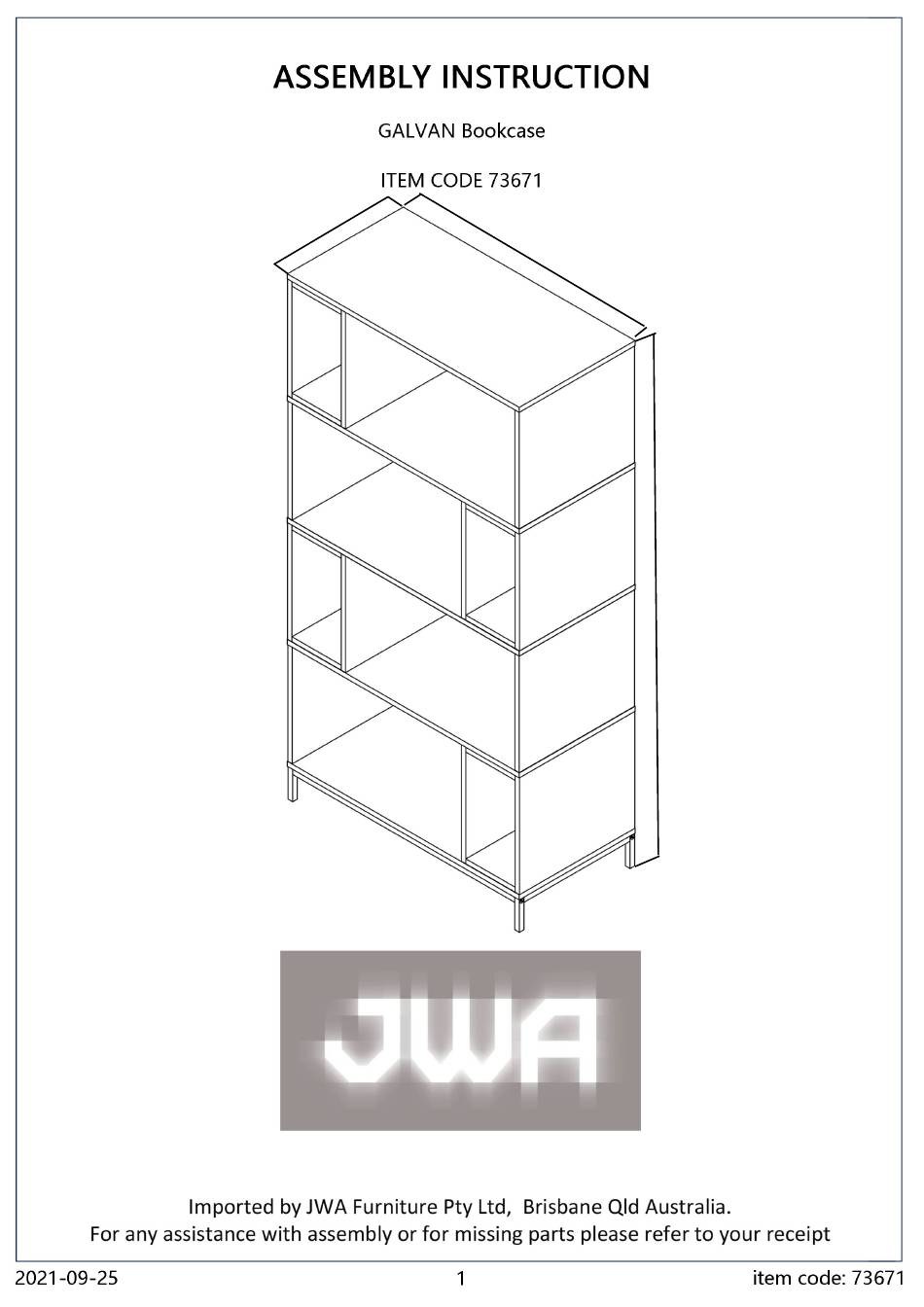

- Page 1 400MM 800MM 1576MM...
-
Page 4: Side Panel
METAL LEG CONNECTION BAR SIDE PANEL SIDE PANEL MIDDLE SHELF PANEL... - Page 5 STEP1: Using alley key(F) to fix metal leg 1 to connection bar 2, 80% FIX...
- Page 6 STEP2:Fix Cam pin(D) to panel 9, repeat 3times STEP3: Fix Cam pin(D) to panel 10 STEP4: Plug wood dowel (A) into panel 7, repeat 4 times STEP5: Fix Cam pin(D) to panel 3, repeat 8times...
- Page 7 STEP6: Fix Cam pin(D) to panel 4 and 5, repeat 8times Plug wood dowel(A) into panel 4 and 5, repeat 8times as shown STEP7: CONNECT PANEL 4,5,6 with cam lock(C) as shown, repeat 4 times STEP8: Fix PANEL3 with PANEL 4,5,6 by cam lock(C) as shown, repeat 4 times...
- Page 8 STEP9: Using allen key(L) to Fix Panel 9 to box 3,4,5,6 with screw(E), and fix panel 7 to panel 9 with screw (B) as shown, Box in right side STEP10: Using allen key(L) to Fix Panel 9 to box 3,4,5,6 with screw(E), repeat 2times and fix panel 7 to panel 9 with screw (B) ,box in left side as shown...
- Page 9 STEP11: Using allen key(L) to Fix Panel 8to box 3,4,5,6 with screw(E), and fix panel 7 to panel 8 with screw (B) as shown STEP12: Using allen key(L) to fix the leg 1,2 to bottom panel 8 with screw(E) to 100% STEP13: Fix the all panels together with cam loack(C) as shown...
- Page 10 STEP14: Glue the paper cap (G)(H) as shown STEP15: Fix the wall fixation as shown...
