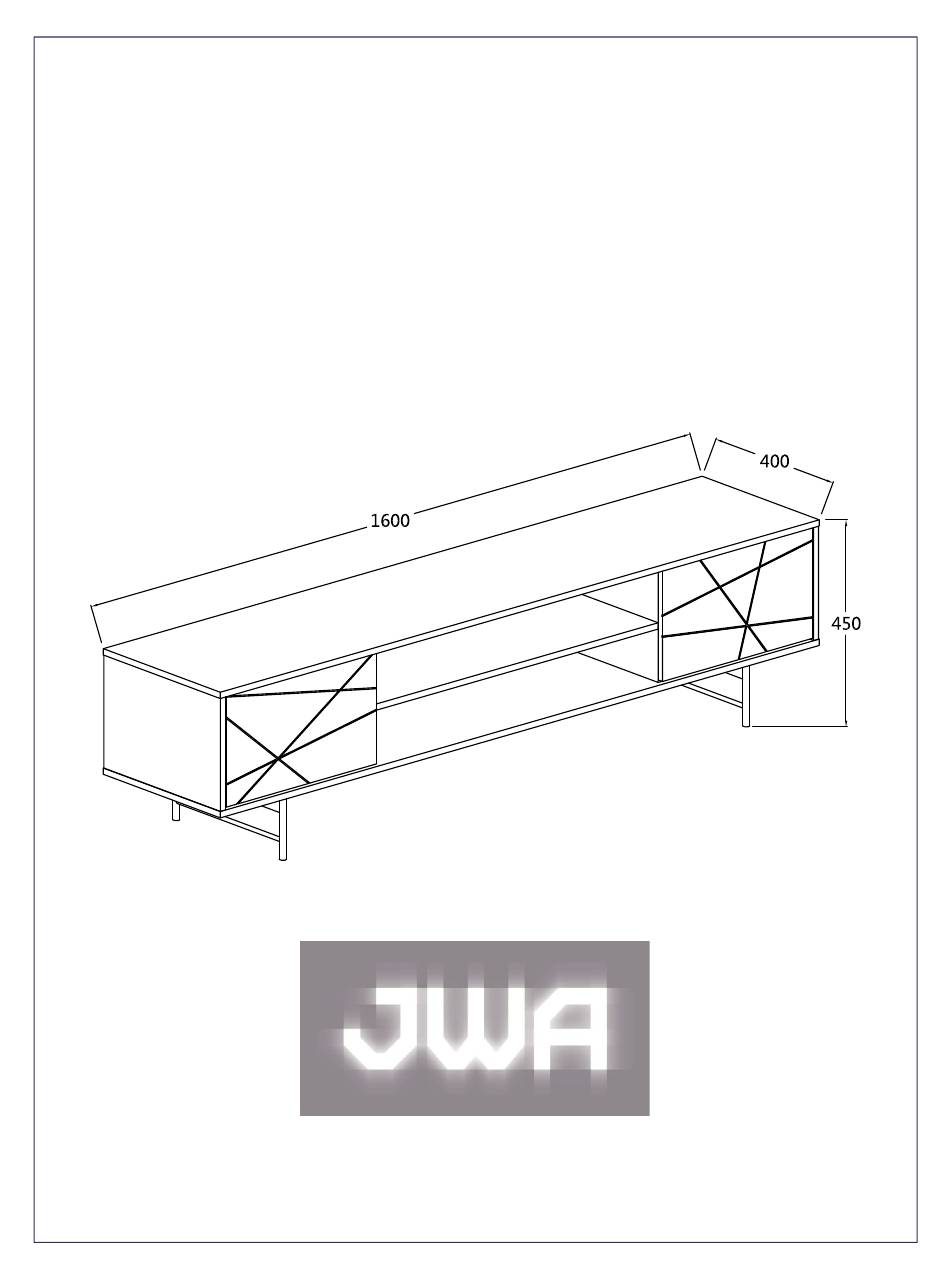

- Page 1 ASSEMBLY INSTRUCTION GRAVES Entertainment Unit ITEM COD E 73673 Imported by JWA Furniture Pty Ltd, Brisbane Qld Australia. For any assistance with assembly or for missing parts please refer to your receipt 2021-09-15 item code:73673...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. - Page 3 2021-09-15 item code:73673...
-
Page 4: Parts List
PARTS LIST DOOR PANEL TOP PANEL MIDDLE PANEL LAMINATES FOOT TUBE BOTTOM PANEL SIDE PANEL BACKP LANE CONNECTING PIPE BACKP LANE SIDE PANEL DOOR PANEL MIDDLE PANEL 2021-09-15 item code:73673... - Page 5 Insert the cam pin(A) to panel (1)(5)(6)as shown Insert wood dowels to panel (5)(6), and connect panel(5)(6) to panel (7) with cam lock(B) as shown 2021-09-15 item code:73673...
- Page 6 Fix panel (3)(4)(5)(6) to panel (1) with cam lock (B) and wood dowels(D) Insert back panel (8)*2 and ( 9) into grooves between panel (3)(4)(5)(6). 2021-09-15 item code:73673...
- Page 7 Insert dowels(D) to (3)(4)(5)(6) as shown Attach panel (2) to panel (3)(4)(5)(6) with screw (C) Use Alley Key(K) to fix screw (C) to 100% Attach metal leg (12)*2 to support tube (13) with screw (G)(I).Using allen key (K) to fix 100% as shown. 2021-09-15 item code:73673...
- Page 8 Attach metal leg (12)(13) to bottom panel (2) with screw (H) and (I). Using allen key (K) to fix 100% as shown. Insert the back panel hook (F) into the back and using screw (E) to fix, as shown. 2021-09-15 item code:73673...
- Page 9 Attach hinges (L) to panel (10)(11) with screw (E),as shown. Fix door panel (10)(11) to side panel with screw (E). Adjust the door with the hinges to the right position as shown 2021-09-15 item code:73673...
- Page 10 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
