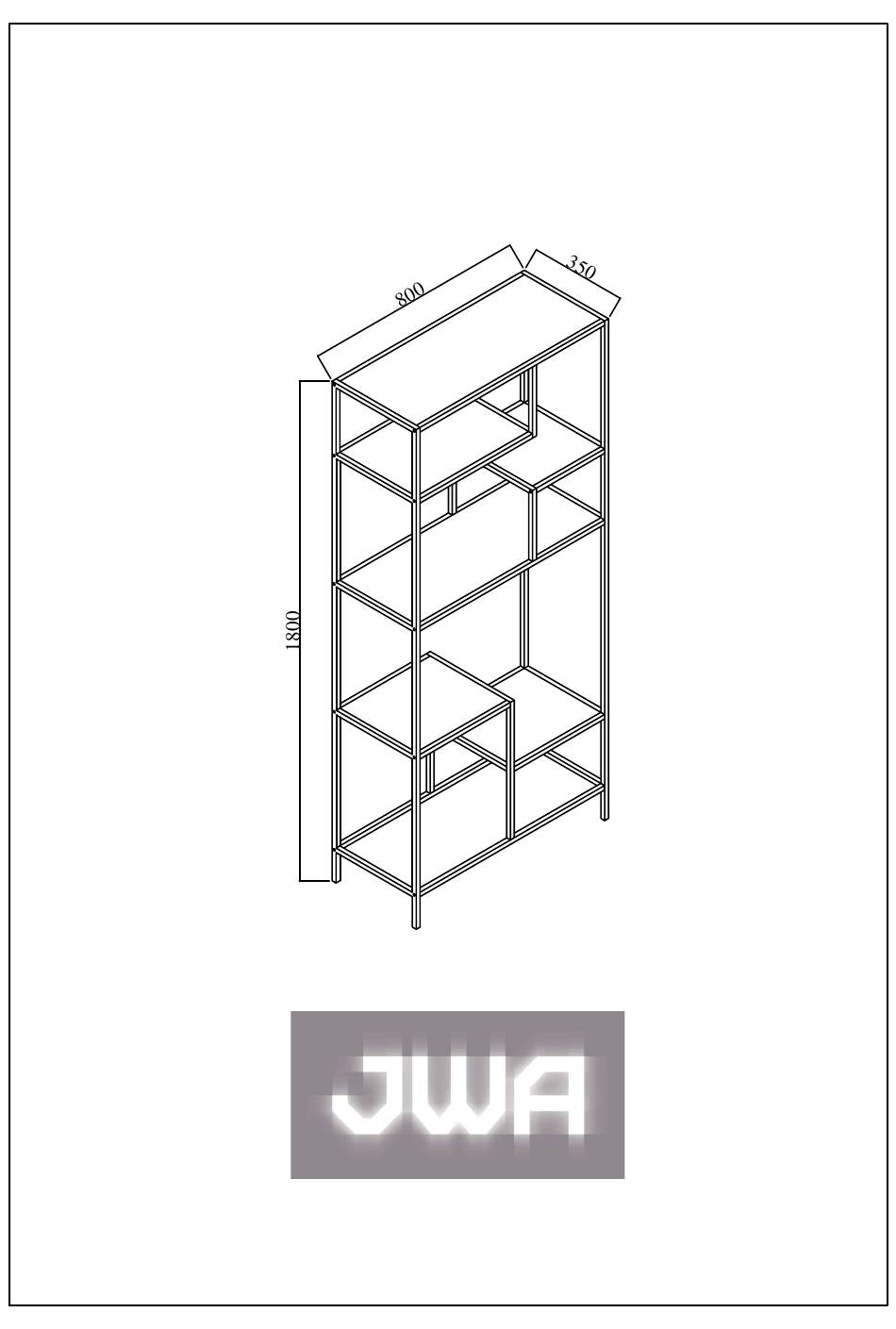

ASSEMBLY INSTRUCTION
Huber 6 Tier Bookcase
ITEM CODE 73680
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 73680 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA 73680

Summary of Contents for JWA 73680

  • Page 1 ASSEMBLY INSTRUCTION Huber 6 Tier Bookcase ITEM CODE 73680 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
  • Page 3 Item code:73680 2021-08-27...

  • Page 4: Parts List

    PARTS LIST M6x35mm 3.5x14mm 6x30mm 34pcs 36pcs 2pcs 2pcs 4x35mm 2pcs TOP PANEL METLA TUBE METLA TUBE SHELF SHELF METLA TUBE SHELF METLA TUBE METLA TUBE METLA TUBE METLA TUBE METLA TUBE METLA TUBE METLA TUBE...
  • Page 5 STEP 1: Fix metal tube (7)(8)(9) to metal tube (5)(6) with screw (A). Using allen key (D) to fix 80% as shown. STEP 2: Fix metal tube (10)(11) to metal tube (5)(7)(8) with screw (A). Using allen key (D) to fix 80% as shown.
  • Page 6 STEP 3: Fix metal tube (12)(11) to metal tube (6)(7)(8) with screw (A). Using allen key (D) to fix 80% as shown. STEP 4: Fix metal tube (13)(14) to metal tube (5)(9) with screw (A). Using allen key (D) to fix 80% as shown.
  • Page 7 STEP 5: Fix metal tube (13) to metal tube (6)(14 ) with screw (A). Using allen key (D) to fix 80% as shown. STEP 6: Put all panel on the shelves.
  • Page 8 STEP 7: Fix all panel to metal tube with screw (B). Using allen key (D) to fix 100% as shown. STEP 8: Screw (F) is fixed from inside the unit, through the wall bracket (E) and into the wall plug (C), and fix wall bracket (E) to top panel with screw (B).
  • Page 9 ASSEMBLY COMPLETE...
  • Page 10 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
