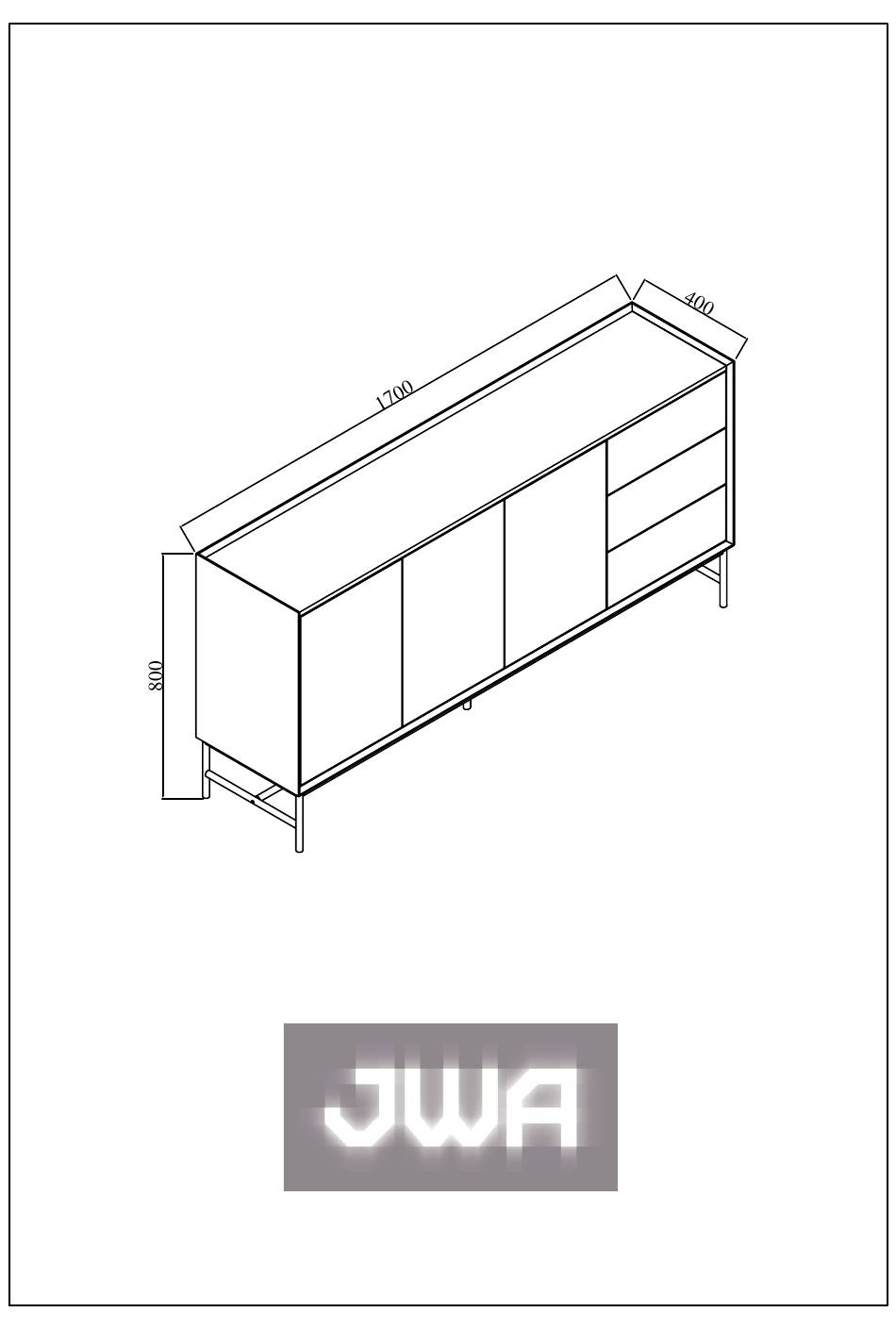

ASSEMBLY INSTRUCTION
Herring Buffect
ITEM CODE 73676
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Herring Buffect 73676 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA Herring Buffect 73676

Summary of Contents for JWA Herring Buffect 73676

  • Page 1 ASSEMBLY INSTRUCTION Herring Buffect ITEM CODE 73676 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
  • Page 3 Item code:73676 2021-08-27...

  • Page 4: Parts List

    PARTS LIST Ø15x12mm 6x35mm 8x30mm 7x50mm 26pcs 34pcs 20pcs 6pcs 18pcs 3.5x14mm 102pcs 6pcs 6pcs 4pcs M6x12mm M6x28mm M6x35mm 2pcs 2pcs 10pcs 6pcs 4pcs 6x30mm 4x35mm 4x25mm 2pcs 2pcs 14pcs 6pcs Ø20mm 340mm 340mm 5x20mm 4pcs 6pcs 6pcs 12pcs 12pcs 2pcs TOP PANEL BACK PANEL HOLDER...
  • Page 6 STEP 1: Fix dowel (C) and cam pin (A) to top panel. STEP 2: Fix plastic support of push open to the top panel with screw (F) and insert the push open into the plastic support. Fix dowel (C) to panel (8).
  • Page 7 STEP 3: Fix dowel (C) and cam pin (A) to panel (3)(4)(7). STEP 4: Fix sideway (V) to panel (4)(7) with screw (F).
  • Page 8 STEP 5: Fix panel (5)(6)(7) to top panel with cam lock (B). STEP 6: Fix shelf (8) to panel (7) with cam lock (B).
  • Page 9 STEP 7: Fix side panel (3)(4) to panel (1)(8) with cam lock (B). STEP 8: Insert panel (10)(11)(12)(13) into grooves between panel(1)(3)(4)(5)(6)(7). Fix panel (12) to panel (13) with back panel holder(14). Fix dowel (C) to panel (5)(6)(7).
  • Page 10 STEP 9: Fix plastic support of push to the bottom panel with screw (F) and insert the push open into the plastic support. STEP 10: Fix angle cam pin (O) to bottom panel with cam lock (B) and to fix 80% as shown.
  • Page 11 STEP 11: Attach panel (3)(4) to panel (2) with cam lock (B). Attach panel (5)(6)(7) to panel (2) with screw (D) and using allen key (G) to fix. 100% STEP 12: Fix side panel to top panel with screw (F).
  • Page 12 STEP 13: Fix metal leg (16) to metal leg (17) and support tube (18) with screw (N). Using allen key (G) to fix 80% as shown. STEP 14: Fix metal leg (16)(17) to bottom panel (2) with screw (M)(L). Using allen key (G) to fix 100% as shown.
  • Page 13 STEP 15: Fix filler (15) to top panel with screw (S). STEP 16: Insert the back panel hook (E) into the back and using screw (F) to fix, as shown.
  • Page 14 STEP 17: Screw (F) into washer (U) and the wall strap (Q) and fix with top panel. STEP 18: Glue the Part (U) to the back panel, screw (R) from inside of the tv stand into wall plug (P).
  • Page 15 STEP 19: Fix shelf support (X) to middle panel. Insert shelf (9) into middle panel. STEP 20: Insert screw (F) through washer (I) into panel (19)(20). Attach hinge (J) to panel (19)(20) with screw (F). Attach hinge (K) to panel (20) with screw (F).
  • Page 16 STEP 21: Fix door panel (19) to side panel with screw (F). Fix door panel (20) to middle panel (6)(7) with screw (F). STEP 22: Fix sideway (W) to panel (22)(23) with screw (F).
  • Page 17 STEP 23: Fix drawer side panel (22)(23) to drawer back panel (24) with screw (R). Insert panel (25) into grooves between panel (22) (23)(24). STEP 24: Fix cam pin (A) to drawer front (21). Insert screw (F) through washer into drawer front (21).
  • Page 18 STEP 25: Fix drawer side panel (22)(23) to drawer front (21) with cam lock (B). STEP 26: Insert drawer into middle panel, as shown.
  • Page 19 ASSEMBLY COMPLETE...
  • Page 20 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
