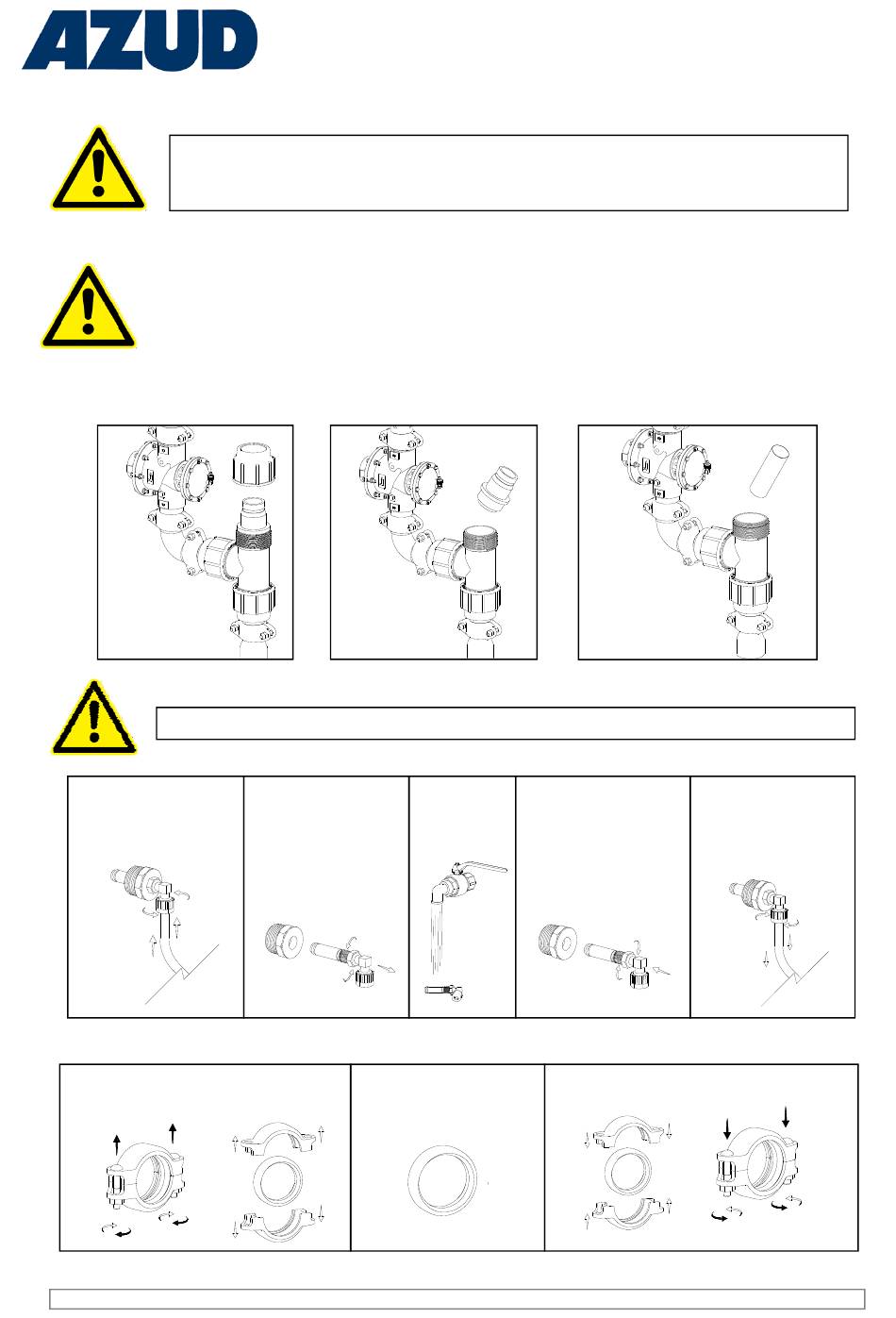

7.4 Checking of components.
Make sure that the Equipment is depressurized before carrying out any
maintenance operation in which the interior of the Equipment is put into contact
with the atmosphere.
7.4.1.- Checking of auxiliary Filter.
1. Drainage the equipment.
2. Disassemble the upper grooved coupling and continue with the lower grooved coupling 2".
3. Take the cartridge drilled by hand out of the tee. Clean it with water.
4. Plaace the cartridge claned in its place checking that the tee's interior joint in its right place.
5. Place the grooved coupling, the thread of the tee, and the grooved adapter tube and adjust all
the victaulic couplings handled.
7.4.2.- Checking the ¼" intake filters.
Applying too much sealer or forcing the threads may damage them
1. Disconnect P1
and P2
microtubes
7.4.3.- Maintenance of the Grooved couplings.
1. Disassemble the grooved coupling
with a spanner or similar
.
Water Filtration Solutions
2. Extract the ¼" 3. Clean them. 4. Place the ¼" filters
filters of each intake
in the inlet and outlet
manifolds and in the
sustaining valve with
a N.13 spanner or
similar
2. Apply grease to the
coupling joint
in manifolds with a
spanner N.13 or
similar previously
applying sealer in the
thread
3. Assemble the coupling
5. Connect the
command
microtubes P1 & P2
to the 8x1/8" male
elbows.
