7.3. Maintenance filtration element
7.3.1.- Checking of the filtering element 92,6x100x4 and 103 x 4 O-rings
1. Open the clamp and take away the lid of the filter carefully; take out the filtering
element; turn the piston until it is released and take it away. (see section Cleaning
of discs section ).
2. Check the estate of the filtering element O-rings.
3. Thread the piston of the filtering element making a slight pressure and turn to its
adjustment. (see Cleaning of discs )

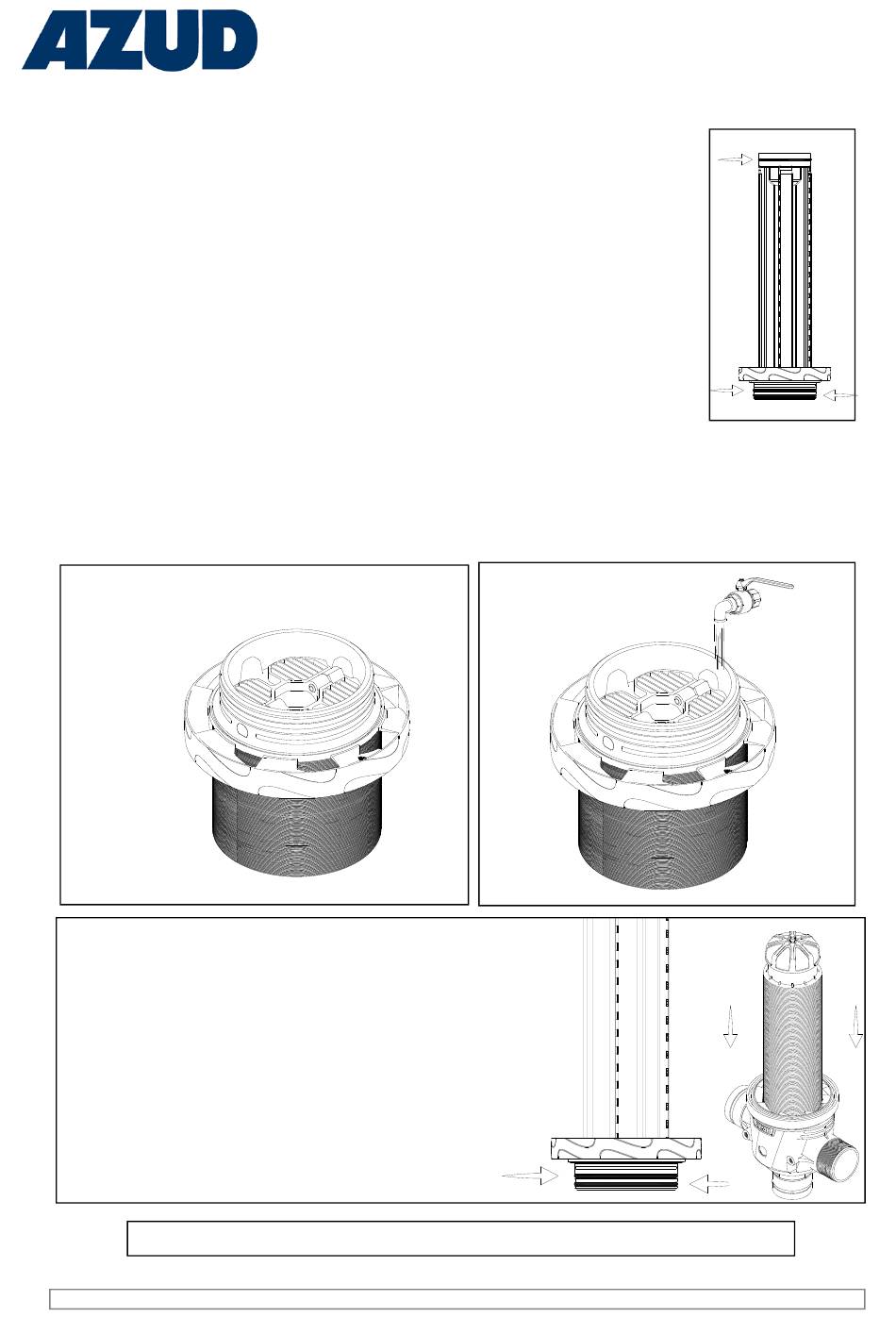

4. Lubricate the area of the O-rings (see picture in the right).
5. Introduce the filtering element pushing carefully in the base of the filter. (See
Cleaning of Discs section ).
6. Place again the lid and close the clamp (See chapter Opening and closure of
the filters ).
7.3.2.- Checking of the movable elements of filtering element base (cap of discs, spring and
spring holder.
1. Open the clamp and take away the lid carefully: take away the filtering element. (see Cleaning of
discs section ).
2. Check opening and closing of the two parts of the
check valve.
4. Lubricate the gasket of the base of the filter
element, with a product chemically compatible
with the filter material. Insert the filter element by
pushing it gently. (See sections 6.3 and 6.4 of the
section Cleaning discs).
5. Fit the lid and close the clamp (See section
Opening and closing the filters).
