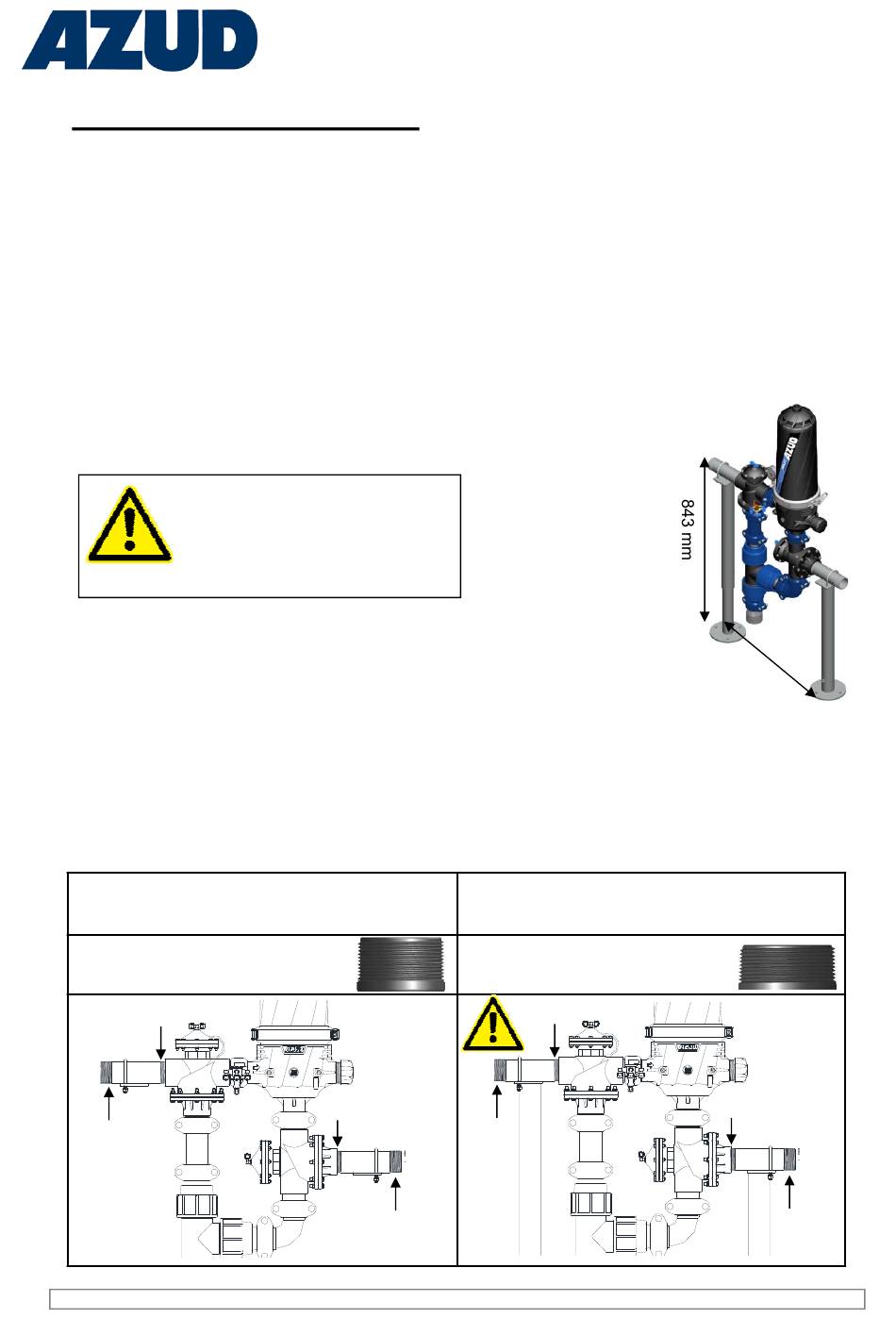

5. Installation Instructions.
AZUD HELIX AUTOMATIC Equipment is presented semiassembled on a box, so the steps to follow in
the installation are the following:
1- Unpack the Equipment carefully and check that no damages are made.
2 - Check that all the installation parameters where the equipment will be incorporated agree with the
equipment itself (specified in chapter 3).
3 –Place the shoulders and graduate their height according to the installation necessities.Due to the
equipment dimensions, the shoulders height should be adjusted in a way that, at least, the upper part
of the shoulder of the drainage manifold is placed at a distance of 843 mm from the ground (this height
corresponds to the minimum adjustable in the outlet manifold shoulder). The separation between the
shoulders should be 560 mm.
- Installation should be made by
QUALIFIED STAFF.
- The location of the Equipment
should be made on solid ground.
The fixing of the Equipment to the ground should be made with sleeper screws adequated to the
type of ground.
4 –Screw the stainless steel bushing to the free outlets of the three-way hydraulic valves. It is very
important to use sealing in the threads of both bushings.
AZUD HELIX AUTOMATIC 201
BSP CONNECTION
BSP
BSP
Water Filtration Solutions
BSP
BSP
AZUD HELIX AUTOMATIC 201 NPT
NPT CONNECTION
BSP
NPT
560 mm
BSP
NPT
13
