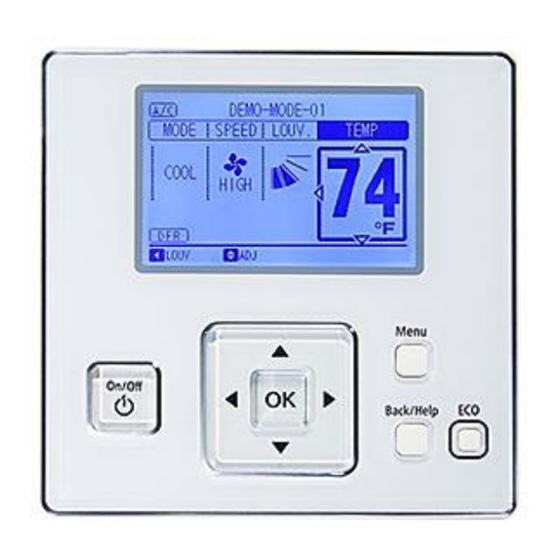

- Page 1 Operation Manual - CIW01 - FLTR Meeting Room MODE SPEED LOUV. TEMP COOL LOUV. Adj. Menu On/Off Back/Help ECO IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS WIRED CONTROLLER. KEEP THIS MANUAL FOR FUTURE REFERENCE. P5415479...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Safety Summary ..............................1 2. Switch Names and Functions ..........................4 3. Operation Method ............................5 3.1 Basic Procedures ............................5 3.2 Operation Mode (Cooling, Heating, Dry, Cooling/Heating Automatic and Air Flow Operation) ....5 3.3 Automatic Cooling/Heating Operation .....................6 4. Setting Method ..............................7 4.1 Temperature Setting ..........................7 4.2 Fan Speed ...............................7 4.3 Louver Swing Direction ...........................8... - Page 4 9. Help Menu ..............................37 9.1 Help Menu .............................37 9.2 Current Setting Display ........................38 9.3 Indicators on LCD ..........................39 9.4 About Operation ...........................39 9.5 Troubleshooting ............................40 9.6 Contact Information ..........................40 10. Other Indications ............................41 10.1 In Normal Condition ..........................41 10.1.1 Main/Sub Controller ........................41 10.1.2 Central Control ..........................41 10.1.3 Priorities ............................41 10.1.4 External Power Saving Control Processing .................42...
-
Page 5: Safety Summary
● Use only Johnson Controls recommended, provided as standardized, or replacement parts. ● Johnson Controls shall will not assume any liability for injuries or damage caused by not following steps outlined or described in this manual. Unauthorized modifi cations to Johnson Controls products are prohibited as they…... - Page 6 35° to 104°F (0 to 40°C). ● Perform properly electrical wiring work. The details of the electrical wiring connection is described in the “Electrical Wiring” of Installation and Maintenance Manual for CIW01. Installation Precautions Take the following precautions to reduce the risk of electric shock, fi re or explosion resulting in serious injury or death: ●...
- Page 7 ● Be sure to install circuit breakers (ground fault interrupter, isolating switch, molded case circuit breaker, and so forth) with the specifi ed capacity. Ensure that the wiring terminals are tightened securely to recommended torque specifi cations. ● Clamp electrical wires securely with a cord clamp after all wiring is connected to the terminal block. In addition, run wires securely through the wiring access channel.
-
Page 8: Switch Names And Functions
2. Switch Names and Functions The fi gure below shows all the functions for reference. The actual display during operation is different. Display Part Fan Speed Indicator Room Name Louver Swing Schedule Timer Indicator Indicator Indicator Page 7) It is displayed when the schedule timer function is set. -
Page 9: Operation Method
3. Operation Method <Before Operation> Basic Procedures (1) Function Selection Apply power to the outdoor unit(s) at least By pressing “ ”or “ ”, the icon “ ” will 12 hours prior to operation of the system for move to the next function in order of the preheating of the compressor oil. -
Page 10: Automatic Cooling/Heating Operation
Automatic Cooling/Heating Operation In case dual setpoint is selected in automatic cooling/heating operation, during auto mode both cooling setpoint and heating setpoint can be selected. By default, temperature when the cooling/heating mode changes are as follows. Cooling mode changes to heating mode when the indoor temperature is heating setpoint -2°F (-1°C). -
Page 11: Setting Method
4. Setting Method Fan Speed (1) Press “ ” or “ ” and select “SPEED”. Temperature Setting (1) Press “ ” or “ ” and select “TEMP”. Menu Menu Back/Help Back/Help (2) By pressing “ ” or “ ”, the fan speed will be changed as follows. (2) By pressing “... -
Page 12: Louver Swing Direction
Louver Swing Direction 5. Operation (1) Press “ ” (On/Off). Operation Start Make sure that the power is ON. Press “ ” Press “ ” (On/Off). or “ ” and select “LOUV.”. The run indicator will be turned on and the operation will be started. -
Page 13: Power Saving Guidance
(1) To set the operation lock, press “ ” and (2) The current setting status is displayed “Back/Help” simultaneously for three for “Power Saving Mode”, “Power Saving ON/OFF”, “Power Saving Level” and the seconds. The icon “ ” will appear to show the lock is turned ON. -
Page 14: Menu Operation
(3) Press “ ” or “ ” and select the setting 8. Menu Operation function. By pressing “OK”, each type of Menu setting will be displayed. • Every function setting is displayed in the “Menu”. Refer to the following concerning each setting. -
Page 15: Simple Timer Operation
Simple Timer Operation (4) Press “OK” to fi nish the “Simple Timer” setting. The confi rmation screen will be • This function is used to start or stop the unit displayed. operation at the set time. Simple Timer 15:10(Fri) • The timer operation contents can be set from Menu “Not Used”, “Once”... -
Page 16: Reset Filter Sign Time
Reset Filter Sign Time Scheduled Operation This function is used to turn off the fi lter sign 8.4.1 Schedule Setting indication and to reset the time of use for the fi lter. • This function is used to start or stop the unit operation at a set time. - Page 17 (5) Press “OK”. (3) Select the day of the week (from Mon. to The confi rmation screen will be displayed. Sun.) by pressing “ ” or “ ”. Press “OK”. Timer Setting (Mon) 15:10(Fri) • “ ” (run) and “ ”...
-
Page 18: Holiday Setting
8.4.2 Holiday Setting (4) Press “OK” after the setting is completed. The confi rmation screen will be displayed. • This function is used to deactivate the schedule operation temporarily for just one day. After that, the schedule operation will recover Holiday Setting 15:10(Fri) Menu... -
Page 19: Schedule On/Off Setting
8.4.3 Schedule ON/OFF Setting Elevating Grille This function is not used. • This function is used to deactivate the scheduled operation temporarily. • The scheduled operation will not be carried out when “OFF” is set in this function. • This function is used for long periods of time. (1) Select “Operation Schedule”... -
Page 20: Power Saving
Power Saving (3) By pressing “ ”or “ ”, “Power Saving Mode Setting” will change between: <Function> Capacity Control ↔ Rotation Control ↔ 1. Outdoor Unit Capacity Control: Intermittent Control ↔ No Setting Controls the COOL/HEAT capacity of the outdoor unit. Select “Power Saving Mode”... -
Page 21: Power Saving Detailed Setting (Outdoor Unit Capacity Control)
8.6.1 Power Saving Detailed Setting (3) Select “Capacity Control” using “ ” or “ ” and press “OK”. (Outdoor Unit Capacity Control) The outdoor unit “Capacity Control” screen This function is used to set the detail of the will be displayed. outdoor unit capacity control. - Page 22 (6) By pressing “ ” or “ ”, the setting function will change as follows “LOW→MED→HIGH” ↔ “LOW Only” ↔ “MED Only” ↔ “HIGH Only”. Press “OK” after completing the setting. Menu Capacity Control Back/Help Chg level LOW MED HIGH Select setting range of power saving.
-
Page 23: Power Saving Detailed Setting (Indoor Unit Rotation Control)
8.6.2 Power Saving Detailed Setting (1) Select “Power Saving Setting” from the menu screen and press “OK”. (Indoor Unit Rotation Control) This function sets the data of the indoor unit Menu rotation control. • Control Method Menu 15:10(Fri) Back/Help Simple Timer “Address order”: Reset Filter Sign Time The number (address) assigned by the... -
Page 24: Power Saving Detailed Setting (Intermittent Operation Control)
(5) Press “ ”or “ ” and select the setting 8.6.3 Power Saving Detailed Setting content. (Intermittent Operation Control) • If “Control Method” is selected, it will This function is used to set details of the change as follows: Intermittent Operation Control. “Address Order”... - Page 25 (2) Select “Detailed Setting” with “ ” or “ ” and (5) The setting confi rmation screen will be press “OK”. displayed. Select “Yes” with “ ” or “ ” and press “OK” to confi rm the setting. The • When using a main controller, the “Power screen will return to normal mode.
-
Page 26: Night Quiet Operation
Night Quiet Operation (3) The setting confi rmation screen will be displayed. Select “Yes” with “ ” or “ ” This function is used to control the operation noise and press “OK” to confi rm the setting. The of the outdoor unit. screen will return to normal mode. -
Page 27: Quick Function
Quick Function (3) The setting confi rmation screen will be displayed. Select “Yes” with “ ” or “ ” This function operates for 30 minutes once the and press “OK” to confi rm the setting. The operation starts. screen will return to normal mode. This function is only available when the operation mode is COOL or HEAT. -
Page 28: Comfort Setting
Comfort Setting (3) The setting confi rmation screen will be displayed. Select “Yes” with “ ” or “ ” This function is used to control cooling of the and press “OK” to confi rm the setting. The discharged air when in the cooling mode. screen will return to normal mode. -
Page 29: Power Saving/Operation Noise Reduction Schedule
8.10 Power Saving/Operation Noise (1) Select “Sav/Reduction Schedule” from the “Menu” screen and press “OK”. Reduction Schedule The power saving/operation noise reduction This function is used to start or stop the power schedule setting screen will be displayed as saving or the noise reduction at the desired time. “Sav/Reduction Schedule”. - Page 30 (4) Select the day set with “ ” or “ ” and press (6) The setting confi rmation screen will be “OK”. The “Time Setting” screen will be displayed. Select “Yes” with “ ” or “ ” and displayed. press “OK” to confi rm schedule setting. The screen will return to normal mode.
- Page 31 ■ Schedule ON/OFF Setting (3) Select “Schedule ON/OFF” with “ ” or “ ” and press “OK”. • This function is used to temporarily deactivate the schedule operation. Menu • Schedule control cannot be performed when the schedule setting is not accessible. Capacity Control 15:10(Fri) Back/Help...
-
Page 32: Individual Louver Setting
8.11 Individual Louver Setting (3) Select the indoor unit to change the louver direction by pressing “ ”, “ ”, “ ” or “ ”. 8.11.1 Setting Press “OK”. This setting is available only for indoor units that allow an individual louver control. Each louver Individual Louver Setting angle can be set individually. -
Page 33: Cancellation Of Louver Setting
8.11.2 Cancellation of Louver Setting 8.12 Louver Open/Close (1) Select “Individual Louver Setting” from the This function is unnecessary to set. “Menu” and press “OK”. Menu 15:10(Fri) 8.13 Ventilation Individual Louver Setting Louver Open/Close This function is unnecessary to set. VENTI Total Heat Exchanger SET Function 15... -
Page 34: Adjusting Date/Time
8.15 Adjusting Date/Time (5) The confi rmation screen is displayed. Select “Yes” by pressing “ ” or “ ” and press “OK”. • This function is used to adjust the date and time. The setting will be confi rmed and the screen •... -
Page 35: Daylight Saving Time
8.16 Daylight Saving Time ■ Stop Daylight Saving Time This function adjusts time forward or backward (1) Select “Daylight Saving Time” from the an hour when daylight saving time starts or ends. “Menu” screen and press “OK”. Menu (1) Select “Daylight Saving Time” from the “Menu”... -
Page 36: Screen Display Setting
8.17 Screen Display Setting (4) Press “ ” or “ ” and set the display. Time Format: 8.17.1 Display Adjustment The time format changes as follows: <Function> 12 Hour ↔ 24 Hour * Time Format: Brightness: Changes the time form to 12 hour or 24 hour. Press “... -
Page 37: Language Setting
8.17.2 Language Setting 8.17.3 Temperature Unit This function changes the displayed language. (1) Select “Screen Display Setting” from the “Menu” screen and press “OK”. (1) Select “Screen Display Setting” from the “Menu” screen and press “OK”. Menu Menu Menu 15:10(Fri) Back/Help Adjusting Date/Time Menu... -
Page 38: Main/Sub Remote Controller
(4) Press “ ” or “ ” and select setting data. 8.17.4 Main/Sub Remote Controller • If “Temperature Unit” is selected This function is used to select Display/Non- it will change as follows : display for “MAIN” or “SUB” displayed on the “Degrees C”... -
Page 39: Room Name Registration
(4) The setting confi rmation screen will display. (2) By pressing “Back/Help”, letter and symbol types can be changed. Select “Yes” with “ ” or “ ” and press “OK” to confi rm the setting. Room Name Registration The screen will return to normal mode. Menu £... -
Page 40: Power Consumption Display
8.19 Power Consumption Display (2) The confi rmation screen will be displayed. Press “OK” to change the screen to “Power This function displays the power consumption of Consumption” display. the outdoor unit compressor. The value of each displayed in Graph/List format is 1 day (24h (- every 2 hrs.)), 1 week (7 days), and 1 year (12 months). -
Page 41: Help Menu
9. Help Menu Display Scale Change the scale using “ ” or “ ”. Help Menu The explanation of indicators on the LCD and Menu operations can be found in the “Help Menu”. The purpose of the “Help” function is to support Back/Help manual operation. -
Page 42: Current Setting Display
Current Setting Display List of indications for the “Current Setting” This function displays the setting content of the ON/OFF operating condition of the air conditioning and Operation Mode controller. Each Type Fan Speed Setting 1 (1) Select “Current Setting” from the “Menu” Louver screen and press “OK”. -
Page 43: Indicators On Lcd
Indicators on LCD About Operation This function is used for explaining each icon on This function is used to explain operations and the LCD. operation methods. (1) Select “About Indication” from the “Help (1) Select “About Operation” from the “Help Menu”... -
Page 44: Troubleshooting
Troubleshooting Contact Information This function is used to troubleshoot operating The screen will display “Contact Information” and problems. the latest alarm code. Make sure that the troubleshooting section is read (1) Select “Contact Information” from the “Help carefully before requesting repairs. Menu”... -
Page 45: Other Indications
10. Other Indications 10.1.2 Central Control When remote control operation is restricted 10.1 In Normal Condition (all functions) 10.1.1 Main / Sub Controller The central control “ ” will turn ON. If the remote control restriction is set from The icon “MAIN” will be displayed as ON when the central controller, the settings for “RUN”, the controller is set as MAIN. -
Page 46: External Power Saving Control Processing
10.1.4 External Power Saving Control 10.1.7 Operation Control Processing Power Activation During Outdoor Capacity Control setting in The icon “Preheating” will display as ON. process of the central controller or outdoor unit The compressor is preheating. The icon “Ext. Sav” will display as ON. Because the unit cannot operate beyond four However, if the controller is set for indoor unit hours at a maximum, do not turn OFF the power... -
Page 47: In Abnormal Condition
10.2 In Abnormal Condition Setback Operation 10.2.1 Abnormality In case the setback operation is enabled and the card key is removed, setpoint is • The RUN indicator (red) fl ashes. compensated and fan operate at “Low” speed. • The indoor unit number, the alarm code, the During this time, “Setback”... - Page 48 © 2017 Johnson Controls, Inc. P5415479-rev.2 Code No. LIT-12012044 Revised May, 2017...
