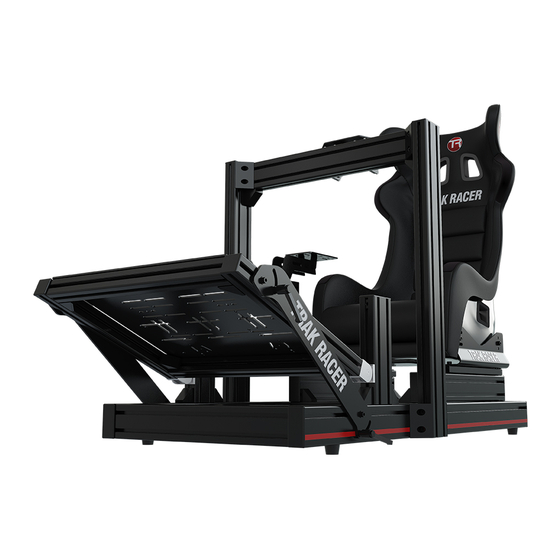

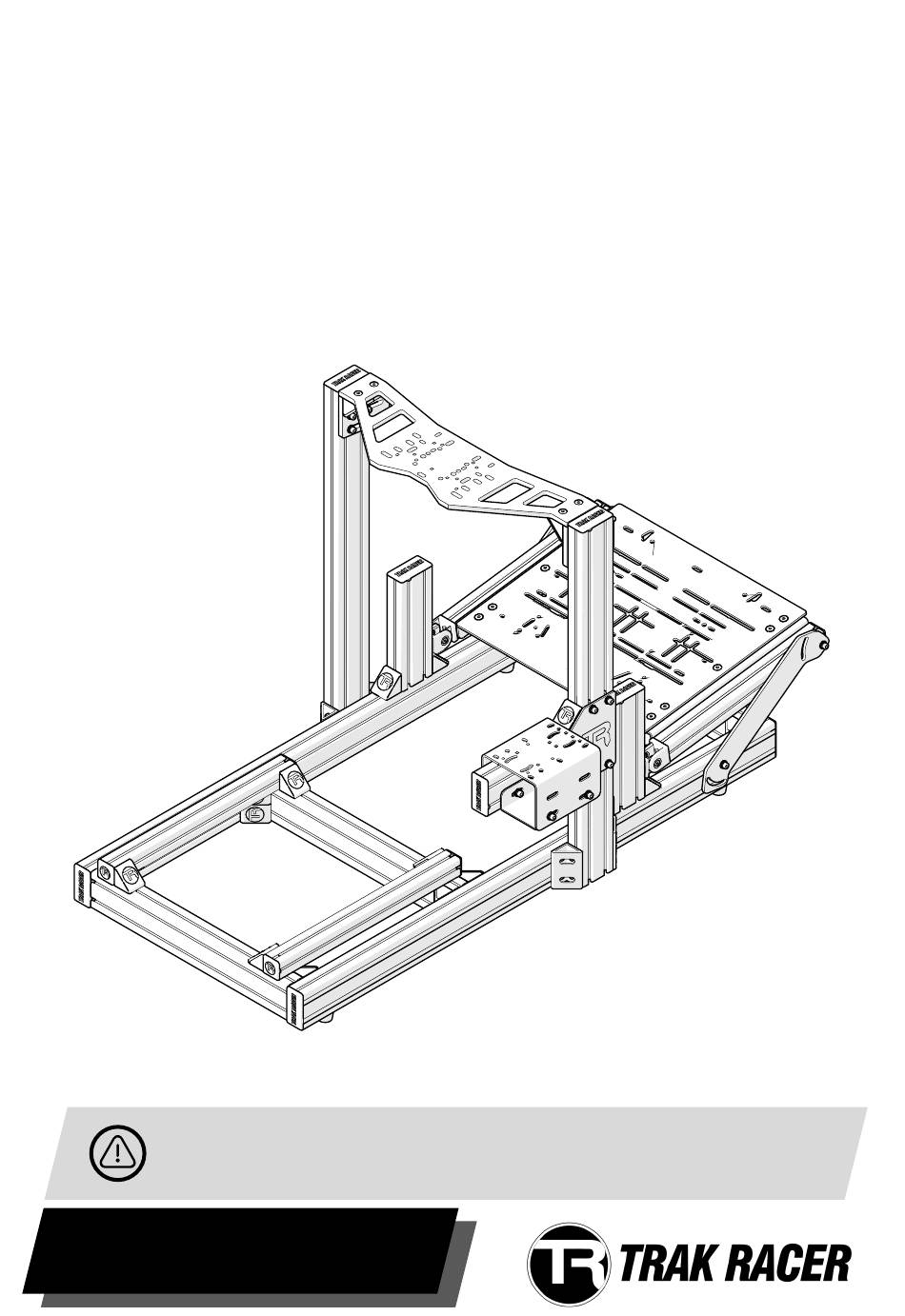

- Page 1 TR80 tooltip Assembly Guide IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box TR805-BLK Published 2021‑12‑20...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part list Symbol Legend Assembly Notes TR805-BLK Assembly Instructions Seat Slider Option Recliner seat installation GT/Rally seat installation Wheel Mount Option 1 Wheel Mount Option 2 Wheel Mount Option 3 Wheel Mount Option 4 Wheel Mount Option 5... - Page 3 780mm 40 x 80mm Aluminium Profile 400mm 40 x 40mm Aluminium Profile (Threaded) 460mm 40 x 40mm Aluminium Profile BOX #: TR805-BLK-PART2 40 x 40mm Trak Racer Plastic End Cap 40 x 80mm Trak Racer Plastic End Cap Rubber Feet 6mm x 20mm Hex Screws...
- Page 4 Two people needed Tighten hardware Leave hardware loose for adjustment Make Adjustment Break tab off Corner bracket CB1 tooltip Safety glasses needed Attention / Priority Reserve for following step Mirrored Components (Same on both sides) INCLUDED TOOLS...
- Page 5 NOTE FRONTSIDE OUTSIDE INSIDE TOP SIDE SHIFTER SIDE BACK SIDE...
- Page 6 The handle screws (S7 & S27) are ratcheted to NOTE allow for tightening and loosening when space for rotation is limited. Simply pull the handle out and turn handle into position and push handle back in to engage thread.
- Page 7 NOTE tooltip N2 & N3 tooltip It is strongly advised that spring T-Nuts (N3) are inserted by sliding from the ends of profiles. Please take careful note of each step of all T-nuts as some are to be installed in anticipation of future steps.
- Page 8 NOTE...
- Page 9 NOTE tooltip...
- Page 10 M6x20mm tooltip P9×2 N3×4 F2×4 S6×4 tooltip P10×2 N2×20 Insert 2pcs of N2 into TOP SIDE of each P2 (for STEP 4)
- Page 11 M8x20mm S3x16 W2x16 W1x16 CB1x8 tooltip 380mm 15" tooltip M8x20mm P26×2 N2×4 S3x8 W1x8 CB1x4 W2x8 tooltip 380mm 15"...
- Page 12 M8x16mm tooltip P16×2 N2×16 S2x16 CB4x4 tooltip M8x20mm P19×2 N2×8 W1x8 S3x8 W2x8 CB1x4...
- Page 13 tooltip M8x16mm M8x20mm PE5×2 S2x2 S3x2 S7x2 N2×6 W2x4 W1x4 AJ1x2 tooltip M8x16mm M8x20mm P35×2 S3x2 S7x2 W2x4 N2×4 S2x2 W1x4 tooltip P35x2 S3x2 S2x2 S7x2 W2x4 W1x4...
- Page 14 M8x20mm N2×8 S3x12 W2x8 W1x8 LB1×2 tooltip tooltip M8x20mm S9×10 N1×10 PE7×1...
- Page 15 M8x20mm P10×1 N2×8 S3x8 W2x8 W1x8 CB1x4 tooltip M8x20mm W1x10 CB1x2 SH2x1 P7×1 N2×10 S3x8 W2x10...
- Page 16 M8x20mm W2x6 W1x6 N1×2 SM1x1 SM2x1 S3x6 N2×4 tooltip tooltip tooltip CB1x22 E4x6 E3x9 Note: End caps should be installed after all accessories are mounted...
- Page 17 A6x4 A10x2 tooltip...
-
Page 18: Seat Slider Option
Seat Slider Assembly TR80-SLIDER Published 2021‑12‑20... - Page 19 M8x16mm S2x4 W1x4 SS×1 N2×4 NOTE: If N2x4 were pre-installed during rig assembly, use those instead. tooltip tooltip...
-
Page 20: Recliner Seat Installation
Recliner Seat Assembly SA-06/SA-07/SA-08 Published 2021‑12‑20... - Page 21 Note: Screws supplied with seat...
- Page 22 tooltip M8x20mm W1x8 TR-RSB3 ×1 S3x6 Note: Screws supplied with seat & TR-RSB...
- Page 23 M8x16mm S2x24 W1x4 N1x4 Note: Hardware supplied with Seat Slider tooltip...
- Page 24 GT/Rally Seat Assembly SA-04/SA-05/SA-09/SA-10 Published 2021‑12‑20...
- Page 25 M8x16mm S2x24 W1x4 N1x4 tooltip tooltip M8x16mm S2x24 W1x4 N1x4 Note: Hardware supplied with Seat Slider...
-
Page 26: Wheel Mount Option
Wheel Mount tooltip Option 1 Part # Description Check BOX #: TR80-NWMA 8mm x 25mm Hex Screws 8mm x 20mm Flat Screws M8 Flat Washer M8 Lock Washer Spring T-Nuts M8 Fanatec Podium/CSL DD Plates (5mm) Wheel Mounting Plates Side Profile Mounting Plates... - Page 27 tooltip M8x25mm N2×8 S4x8 W2x8 W1x8 SMPx2 tooltip M8x20mm S9×12 P30×2 WMP×2...
- Page 28 M8x25mm S4x4 FNP×2 Note: Thread screws just enough to hold FNP in place so screws do not protrude past FNP plate. tooltip Note: For Fanatec CSL DD add x4 FNP...
-
Page 29: Wheel Mount Option
Wheel Mount tooltip Option 2 Part # Description Check BOX #: TR80-NWMA 8mm x 25mm Hex Screws 8mm x 20mm Flat Screws M8 Flat Washer M8 Lock Washer Spring T-Nuts M8 Fanatec Podium/CSL DD Plates (5mm) Wheel Mounting Plates Side Profile Mounting Plates... - Page 30 tooltip M8x25mm N2×8 S4x4 W2x8 W1x8 SMPx2 tooltip M8x20mm S9×12 P30×2 WMP×2...
- Page 31 M8x20mm S3x4 DD4×1 tooltip...
-
Page 32: Wheel Mount Option
Wheel Mount tooltip Option 3 Part # Description Check BOX #: TR80-NWMA 8mm x 25mm Hex Screws 8mm x 20mm Flat Screws M8 Flat Washer M8 Lock Washer Spring T-Nuts M8 Fanatec Podium/CSL DD Plates (5mm) Wheel Mounting Plates Side Profile Mounting Plates... - Page 33 tooltip M8x25mm N2×8 S4x8 W2x8 W1x8 SMPx2 tooltip M8x20mm P30×2 WMP×2 S9×12...
- Page 34 M8x15mm S14x4 WM4x1 tooltip...
-
Page 35: Wheel Mount Option
Wheel Mount tooltip Option 4 Part # Description Check BOX #: TR80-NWMA 8mm x 25mm Hex Screws 8mm x 20mm Flat Screws M8 Flat Washer M8 Lock Washer Spring T-Nuts M8 Fanatec Podium/CSL DD Plates (5mm) Wheel Mounting Plates Side Profile Mounting Plates... - Page 36 tooltip M8x25mm S4x8 N2×8 W2x8 W1x8 SMPx2 tooltip M8x20mm P30×2 WMP×2 S9×12...
- Page 37 tooltip Note: Use screws and t-nuts provided with wheelbase. SMPx2 tooltip M8x16mm S2x4...
-
Page 38: Wheel Mount Option
Wheel Mount tooltip Option 5 Part # Description Check BOX #: TR80-WMPLATE 8mm x 20mm Hex Screws 8mm x 20mm Flat Screws 6mm x 20mm Hex Screws (For mounting wheelbase) M8 Flat Washer M8 Lock Washer M8 Flange Nut Spring T-Nuts M8... - Page 39 tooltip M8x20mm N1×4 CB1x4 WDP×1 S9×4 ooltip M8x20mm S9×4 N1×4 WSP×2 CB1x4...
- Page 40 M8x20mm S3x8 W1x8 N2×8 tooltip...
- Page 41 FINISHED Share your build online and tag us to be featured! @trakracer @trakracer @trak_racer...
