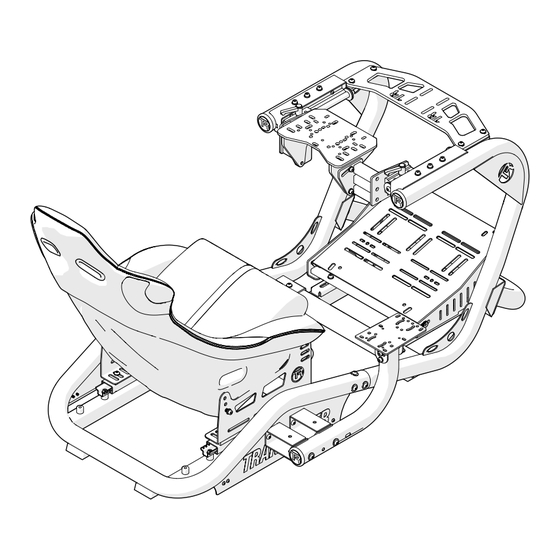

TRAK RACER TR8 PRO Assembly Manual

Hide thumbs

page of 23

/ 23
Bookmarks

Quick Links

Download this manual

TR8 PRO

Assembly Guide

IMPORTANT: As there are different versions of each rig depending on your

region, please ensure that you are using the correct instruction set. The

part number below should match the part number labeled on your box

TR8-06-B

Published 2022‑06‑04

Need help?

Do you have a question about the TR8 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for TRAK RACER TR8 PRO

Page 1 TR8 PRO Assembly Guide IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box TR8-06-B Published 2022‑06‑04...
Page 2 TABLE OF CONTENTS Symbol Legend Part list Assembly Notes TR8-06-B Assembly Instructions GT/Rally seat installation Recliner seat installation Monitor Stand DD Wheel Mount...
Page 3 IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box IMPORTANT: Due to the nature of cut aluminium profile, some metal shavings may still be present after our extensive QA cleaning process.
Page 4: Included Tools
TR8-06-B PARTS LIST Part # Description Check TF-TR8-F Tube Frame, TR8, Front Section TF-TR8-B Tube Frame, TR8, Back Section TF-TR8-L Tube Frame, TR8, Left Section TF-TR8-R Tube Frame, TR8, Right Section SB-M8-15 Screw (Button), M4x15 SH-M8-16 Screw (Hex), M8x16 SH-M6-16 Screw (Hex), M6x16 SH-M8-20 Screw (Hex), M8x20...
Page 5 NOTE TOP SIDE FRONT SIDE INSIDE OUTSIDE SHIFTER SIDE BACK SIDE...
Page 6 The handle screws (SL-M8-20 & SL-M8-25) are NOTE ratcheted to allow for tightening and loosening when space for rotation is limited. Simply pull the handle out and turn handle into position and push handle back in to engage thread.
Page 7 M8x15mm SB-M8-15 TF-TR8-L TF-TR8-R TF-TR8-F NOTE: Some screws and washers com pre-installed. These will be part of the parts list and will need to be loosened and reattached according to the instructions. Keep slightly loose until STEP 2 completed M8x15mm SB-M8-15 WC-M8 TF-TR8-B...
Page 8 M8x20mm SH-M8-20 WF-M8 TF-TR8-WM WM-WM4 NOTE: Some screws and washers com pre-installed. These will be part of the parts list and will need to be loosened and reattached according to the instructions. M6x16mm SH-M6-16 WL-M6 WF-M6 Use holes to NOTE: Some screws and washers com pre-installed. adjust vertical These will be part of the parts list and will need to be position...
Page 9 M8x15mm SB-M8-15 WF-M8 TF-TR8- NOTE: Some screws and washers com pre-installed. These will be part of the parts list and will need to be loosened and reattached according to the instructions. M8x15mm TF-SB SB-M8-15 NOTE: Some screws and washers com pre-installed. These will be part of the parts list and will need to be loosened and reattached according to the instructions.
Page 10 M8x65mm TF-TR8-SA SB-M8-65 WC-M8 NOTE: Some screws and washers com pre-installed. These will be part of the parts list and will need to be loosened and reattached according to the instructions.
Page 11 OPTIONAL: Rally/GT Seat Assembly SA-04/SA-05/SA-09/SA-10 Published 2022‑06‑04...
Page 12 M8x16mm SH-M8-16 WL-M8 WF-M8 Do not over-tighten screws! M8x16mm SH-M8-16 WF-M8 NH-M8 Note: Hardware supplied with Seat Slider NH-M8 Nut may be pre-installed to seat slider...
Page 13 OPTIONAL: Recliner Seat Assembly SA-06/SA-07/SA-08...
Page 14 Note: Screws supplied with seat...
Page 15 M8x20mm SH-M8-20 WF-M8 SB-03 Note: Screws supplied with seat & SB-03...
Page 16 M8x16mm SH-M8-16 WF-M8 NH-M8 Note: Hardware supplied with Seat Slider...
Page 17 OPTIONAL: TR8 Monitor Stand Part # Description Check BOX #: TR-TR8-SING SH-M8-10 Screw (Hex), M8x10 SF-M8-16 Screw (Flat), M8x16 WF-M8 Washer (Flat), M8 NF-M8 Nut (Flange), M8 BP-IS Bracket (Plate), Integrated Single Monitor Mount BM-IS Bracket (Monitor), Integrated Single Monitor Mount * NOTE: Extra hardware may be included as spare parts TR-TR8-SING Published 2022‑06‑04...
Page 18 M8x16mm SF-M8-16 NF-M8 BP-IS M8x10mm SH-M8-10 BM-IS...
Page 19 OPTIONAL: Direct Mount for Simucube, Simucube 2, VRS, Simagic, MIGE * NOTE: Extra hardware may be included as spare parts TR-DDBRDDM Published 2022‑06‑04...
Page 20 M8x20mm SH-M8-20 WM-DD-BR WM-DD FRONT MOUNT M8x25mm SH-M8-25 NF-M8 FRONT MOUNT...
Page 21 M8x25mm SH-M8-25 WF-M8 NOTE: Use mounting screws provided with wheelbase if necessary FRONT MOUNT...
Page 22 M8x20mm SH-M8-20 WM-DD-BR WM-DD NOTE: Use mounting screws provided with wheelbase if necessary SIDE MOUNT M8x20mm SH-M8-20 WF-M8 SIDE MOUNT...
Page 23 FINISHED Share your build online and tag us to be featured! @trakracer @trakracer @trak_racer...
