Product Instructions

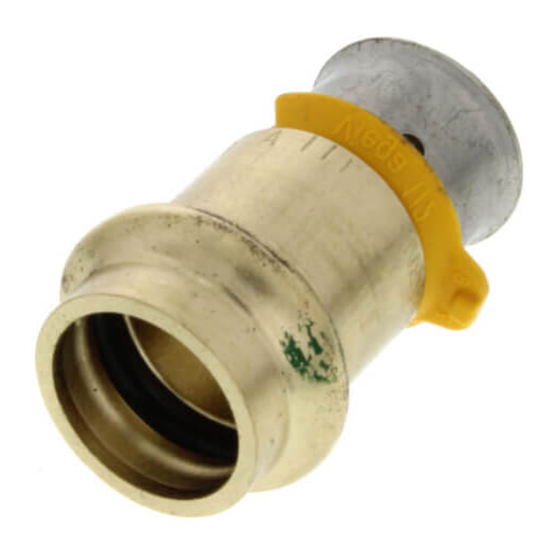

PEX Press x ProPress
1. Square off tubing to proper length.
1a. Insert FostaPex tubing into prep tool. Push and turn tool until no more resistance is felt and tool spins freely.
2. Slide press sleeve fully over end of tubing.
3. Insert press fitting into tubing and engage fully.
4. Check full tubing insertion at view hole of sleeve.
5. Engage press tool perpendicular over press sleeve and close tool jaws.
6. Start tool ratchet until automatic tool release occurs at proper compression force.
7. WARNING: The connection is not leakproof when tool has been opened by emergency release. Connec-
tion must be remade using a new press sleeve.
301 N. Main, Floor 9 • Wichita, KS 67202 • Ph: 877-Viega-NA • Fax: 316-425-7618 • E-Mail: service@viega.com • www.viega-na.com
PI-PEXP-PP
514846-11/06
1
4
VIEGA •
One Company... One Partner... Delivering System Solutions.
1a
5
2
6
3
7
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viega ProPress PEX Press x
Summary of Contents for Viega ProPress PEX Press x
- Page 1 VIEGA • One Company... One Partner... Delivering System Solutions. 301 N. Main, Floor 9 • Wichita, KS 67202 • Ph: 877-Viega-NA • Fax: 316-425-7618 • E-Mail: service@viega.com • www.viega-na.com PI-PEXP-PP 514846-11/06...
- Page 2 The final tubing system pressure test is to be carried out in accordance with local codes. VIEGA • One Company... One Partner... Delivering System Solutions. 301 N. Main, Floor 9 • Wichita, KS 67202 • Ph: 877-Viega-NA • Fax: 316-425-7618 • E-Mail: service@viega.com • www.viega-na.com PI-PEXP-PP 514846-11/06...
