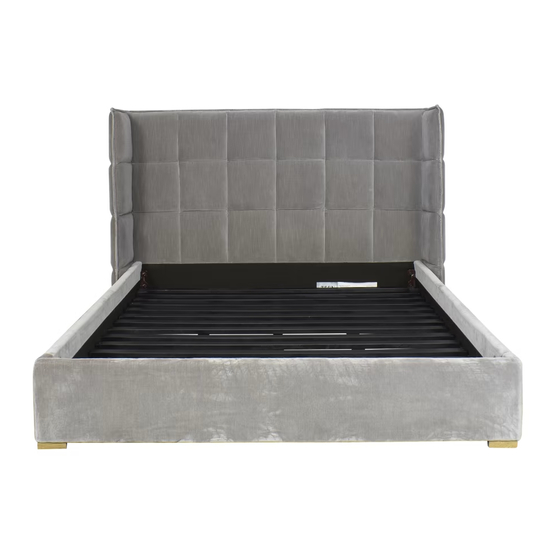

RH Teen LANDIS QUILTED TWIN BED Assembly Instructions

PARTS INCLUDED
A [1] Headboard
B [2] Side rail
C [1] Footboard
D [1] Slat Roll
TOOLS NEEDED:
Phillips head- - - Screwdriver (not included)
-
ASSEMBLY INSTRUCTIONS
Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1.
Stand the Headboard (A) upright and attach Side Rails (B), as shown in Diagram I.
Insert the Thread Rods (1) into the holes on the of Side Rails (B), and attach Curved Washers (2), Lock Washers (3),
2.
Nuts (4) onto the Thread Rods (1).Tighten the Nuts (4) & Thread Rods (1) with Spanner Wrench (5) as shown in the
Diagram II.
3.
Place the Slat Roll (D) into the cleats on the inside of the Side Rail (B). Screw the ends of the Slats to the cleats using
Screw (6), as shown in Diagram III.
CARE INSTRUCTIONS
Spot clean only with a soft, damp cloth.
LANDIS QUILTED TWIN BED - ASSEMBLY INSTRUCTIONS
NO.
1
2
3
4
5
6
7
DESCRIPTION
Thread Rod (0.8cm Diax11.5cm
Curved Washer
Lock Washer
Nut
Spanner Wrench
Screw (4cm)
Allen Key (0.5cm Dia)
Page 1 of 2
Qty
) 4 Pcs
Length
4 Pcs
4 Pcs
4 Pcs
1 Pc
30 Pcs
1 Pc
