T9200
图例：
NTC： 温度传感器
OCC： 门卡开关
ECM FAN： ECM风机
FAN： 风机
AO1： 模拟输出1
AO2： 模拟输出2
AI： 模拟输入/阀反馈
INSTALLATION INSTRUCTIONS FOR THE TECHNICIAN / FITTER
READ THIS INSTRUCTION SHEET AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND
SAVE IT FOR FUTURE USE
REPAIR AND REPLACEMENT
Do not attempt to repair the T9 Series thermostat. In case of an improperly functioning control, contact the nearest Johnson Controls® representative, and
specify the desired product code number. When contacting the supplier for a replacement please state the type/model number of the control located on the
data plate or cover label.
IMPORTANT
• Use this T9 Series thermostat only as an operating control. Where failure of malfunction of the T9 Series thermostat could lead to personal injury or
property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other
devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the T9 Series
thermostat.
• Do not install this thermostat in condensing, wet, or damp environments. Moisture may cause damage to the thermostat.
• Do not remove PCB from the enclosure cover. Removing the PCB from the enclosure cover voids the product warranty.
• Make all wiring connections in accordance with local, national, and regional regulations. Do not exceed the T9 Series thermostat's electrical ratings.
WARNING
Disconnect power supply before making electrical connections. Contact with components carrying hazardous voltages can cause electrical shock and may
result in severe personal injury or death.
• Risk of Electrical Shock: Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in
electrical shock and severe personal injury and death.
• Risk of Electrical Shock and Property Damage: Insulate and secure each unused wire lead before applying power to the thermostat.
Failure to insulate and secure each unused wire lead may result in property damage, electrical shock, and severe personal injury or death.

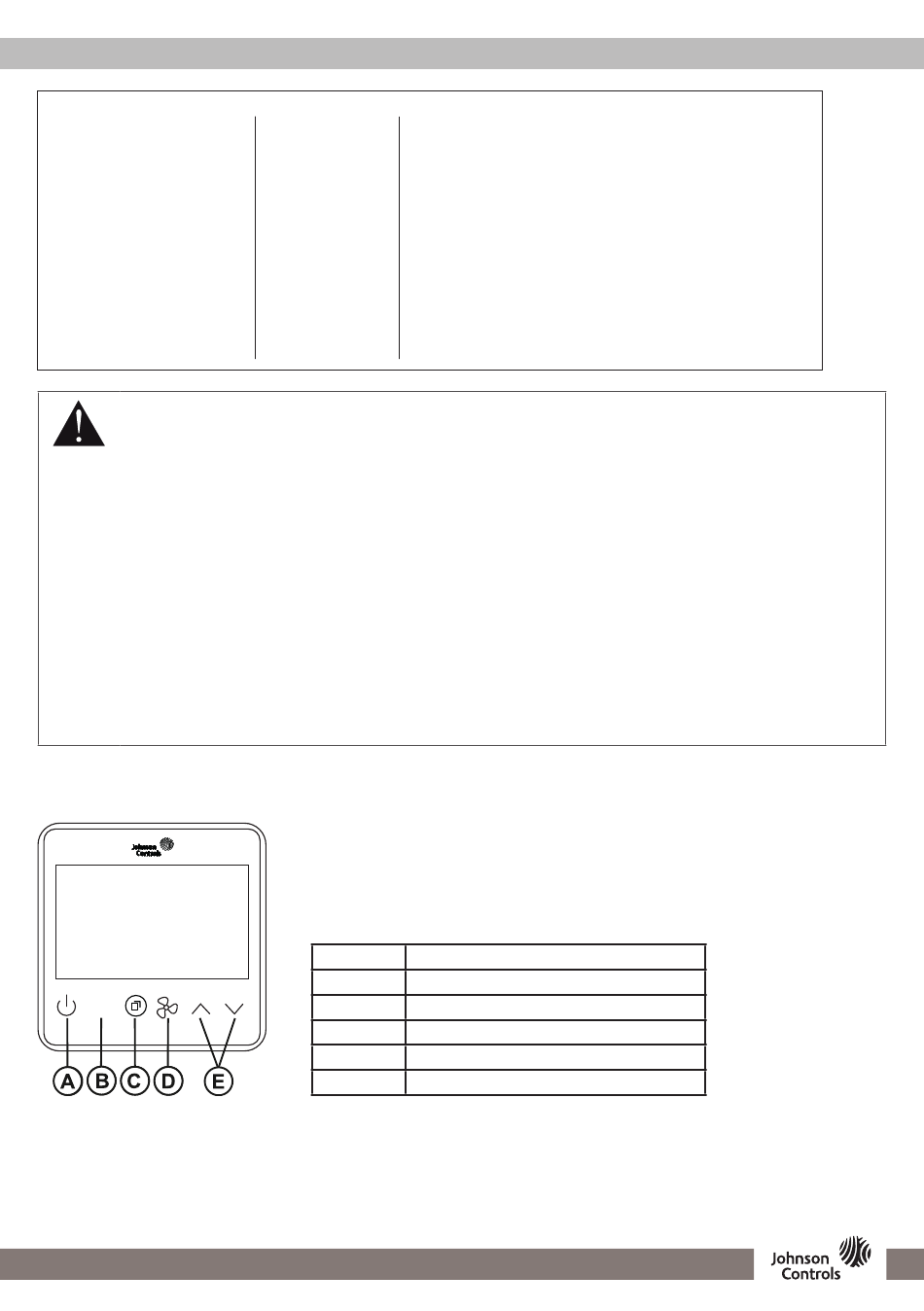

T9200 interface
M
P/N 24-11446-00018 Rev. B Issue Date: 11 2020
HEAT：
F-ON：风机开关
COOL：
GND: 地
FLOOR HEAT：地暖阀
L： 火线
N： 零线
LOW：
V1： 阀1
MED：
V2： 阀2
HI：
TR: 变压器
TiO2：
ESP：
CMP： Compressor 压缩机
RV：
Callout Feature
A Power button
B Working mode button
C General button
D Fan speed adjustment button
E Up and down buttons
热水阀
冷水阀
风机低速档位
风机中速档位
风机高速档位
TiO2 二氧化钛
Electro-static Precipitator 静电除尘设备
Reversing Valve 换向阀
English 中文
