Getting Started

ON/OFF - PWR Button.

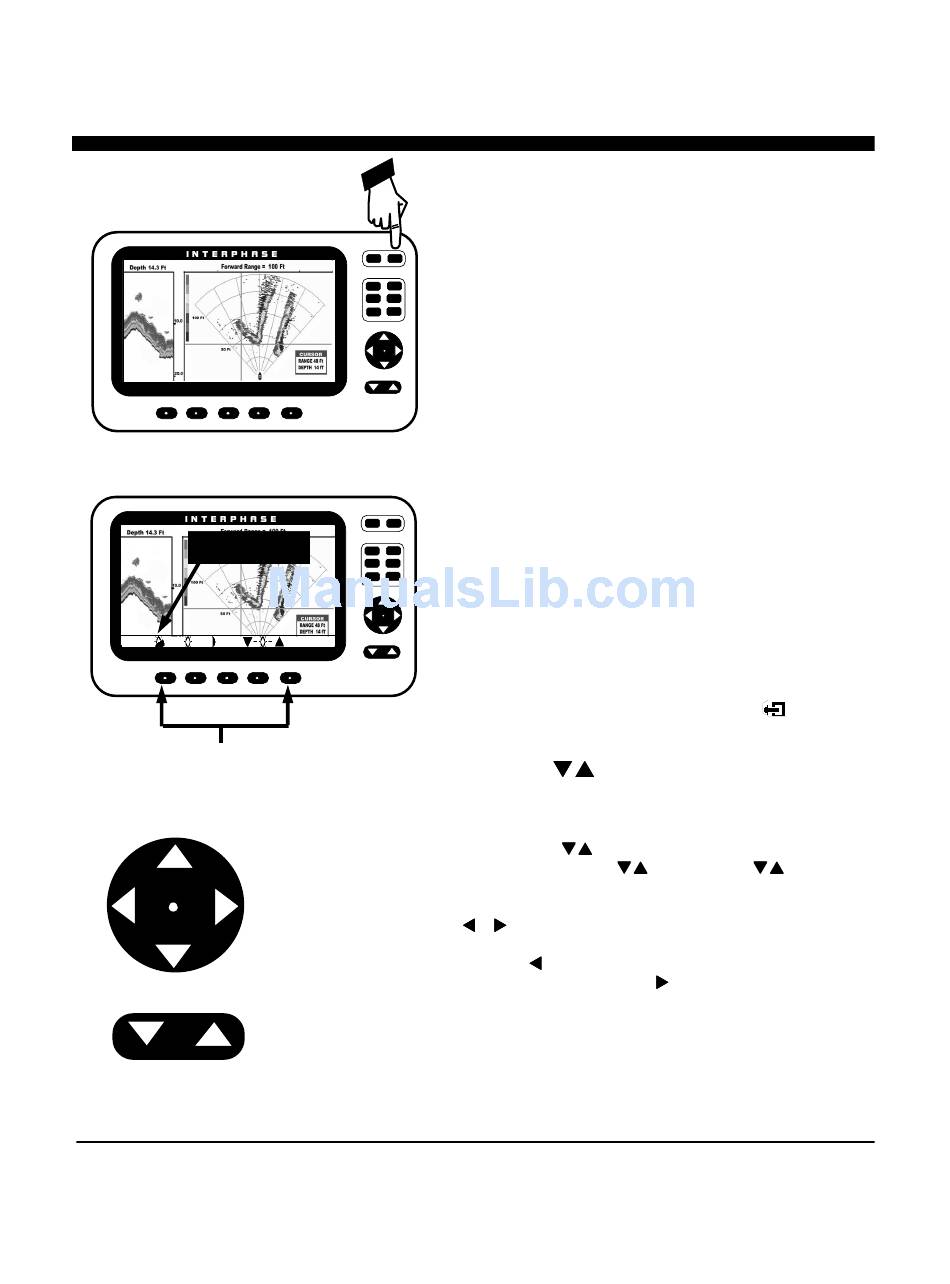

Press the red "PWR" button located at the upper right of the unit
to turn the Color Twinscope on. The unit will respond with a
CURSR PWR
beep when it turns on. Briefly pressing the PWR button again
VERT
HORIZ
brings up the menu for adjusting the screen brightness and color.
DOWN DATA
RANGE GAIN To turn the COLOR TWINSCOPE off, press and hold down
the PWR button for longer than 3 seconds.
Soft Keys and Screen Menus
The five unmarked buttons below the display are called softkeys
(because their use is determined by the menu choices and the
Color Twinscope's software). Whenever one of the softkey
buttons are pressed, or when making adjustments (like changing
the color mode, brightness, gain or range) a screen menu will
appear at the bottom of the display. For example, the screen
menu shown at left is used for selecting the display color mode
CURSR PWR
and adjusting the brightness.
VERT HORIZ
DOWN DATA
The screen menu provides visual feedback on the adjustment and
RANGE GAIN
often allows further choices by pressing one of the 5 softkeys
below the menu.
If no button is pressed for several seconds the screen menu will
disappear. On some screen menus, the menu will disappear as
soon as you make a choice or press the button below the EXIT
choice. Note: on some menus, the exit symbol
instead of the EXIT word.
UP/DOWN (
These buttons are often used to make adjustments to increase or
decrease something - like the GAIN, RANGE and screen
BRIGHTNESS, etc. In several menus you can also use the
softkeys below the
make the adjustment. The
the NAV button have the same function.
The symbols on the NAV button are used to select an
item in the menu. For example, when the GAIN menu is
displayed, the
gain to adjust, while pressing the
gain to adjust. See RANGE/GAIN on page 26 for details.
