NMEA Inputs (Position, Speed & Temp)
The Color Twinscope has two independent serial NMEA
input ports. One can be used to connect to a source of lat/
lon position and speed data (i.e., GPS), and the other can be
connected to a source of temperature and speed data.

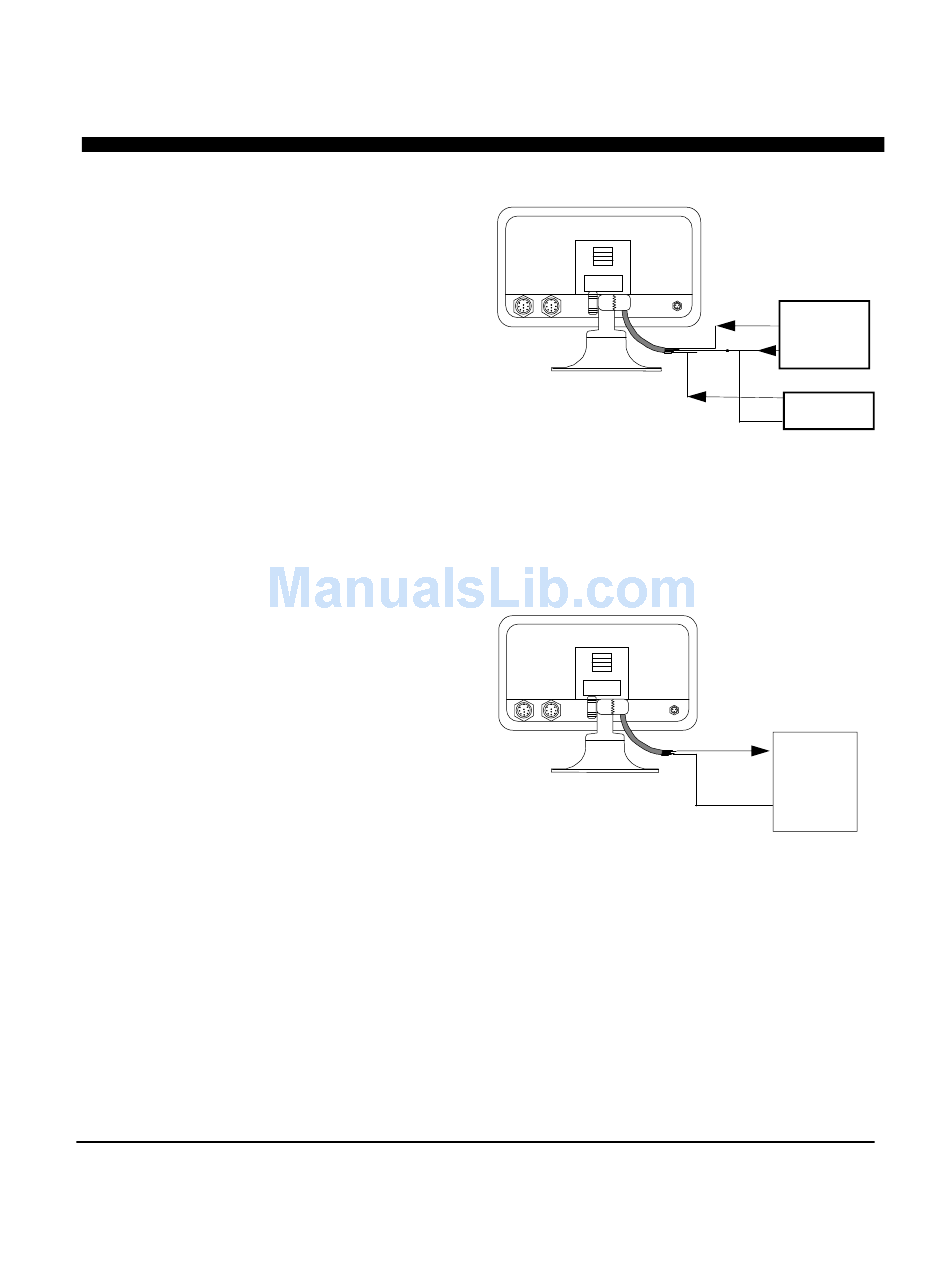

An external GPS should be connected between the White
(+) and Green(-) wires in the power and I/O cable from the
Quick Disconnect Mount, and the Temperature and Speed
source should be connected between the Brown(+) and
Green(-) wires.
The Color Twinscope looks for the following NMEA
sentences to get information on positon, speed and
temperature.
GLL
( Lat/Lon Postion)
VTG (Speed over the ground)
MTW (Temperature)
NMEA Depth Output
NMEA 0183 depth information is sent out on the Yellow
(+) and Green(-) wires. See the sketch at right showing
the wiring for the NMEA output port.
The Color Twinscope sends out the following NMEA
0183 sentences with the digital depth data..
DPT, DBT
Brown(+)
35
GPS
(Lat/Lon &
White(+)
Speed)
Green(-)
TEMP
Yellow (+)
NMEA
DEPTH
OUTPUT
Green (-)
