Intermec CN3 Installation Instructions
Terminal holder spacer
Hide thumbs
Also See for CN3:
- User manual (216 pages) ,
- Instructions manual (32 pages) ,
- Quick start manual (20 pages)
Advertisement

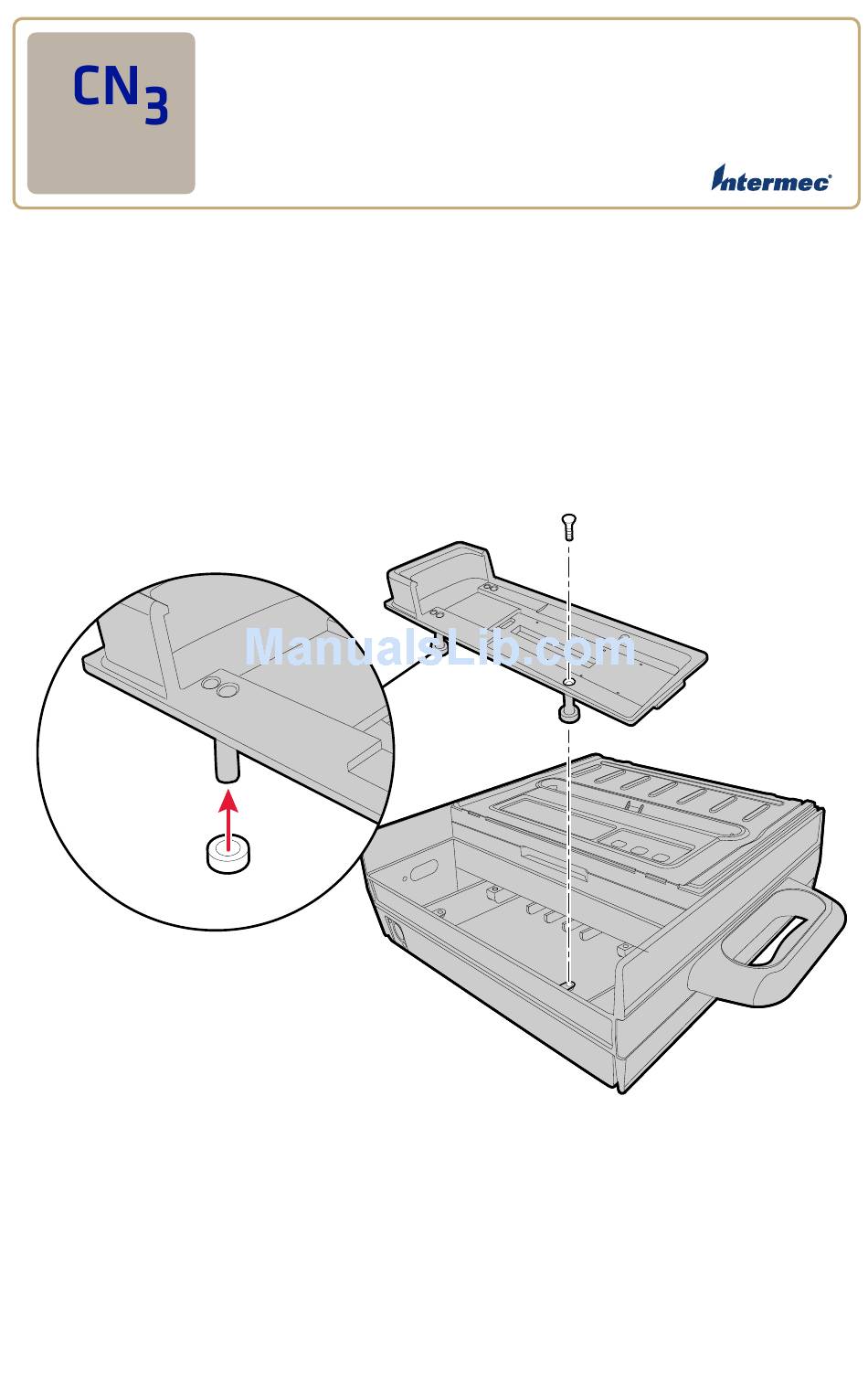

Spacers are installed on the CN3 terminal holder to allow for optimum fit of the
holder on the 6822 portable printer.
To install the spacers
1
Center a spacer on each mounting post and press firmly to seat.
2
Align the terminal holder on the printer and insert the screws in the four
mounting holes.
3
Using a Phillips screwdriver, tighten the screws to 0.45 to 0.68 Nm (4 to 6 in-lb).
Spacer
(4 places)
Terminal Holder Spacer Installation
Instructions
Screw (4 places)
