MVI56E-61850C ♦ IEC 61850 Client Communication Module
ControlLogix® Platform
3.5
Firmware Lock
The module firmware is locked by default for security purposes to prevent the firmware
upgrade. In case a firmware upgrade is required, you will have to unlock the firmware
through the Firmware Lock parameter.
For more information about firmware upgrades, see the Downloads section of the
MVI56E-61850C product page on the ProSoft Technology website
technology.com).
1

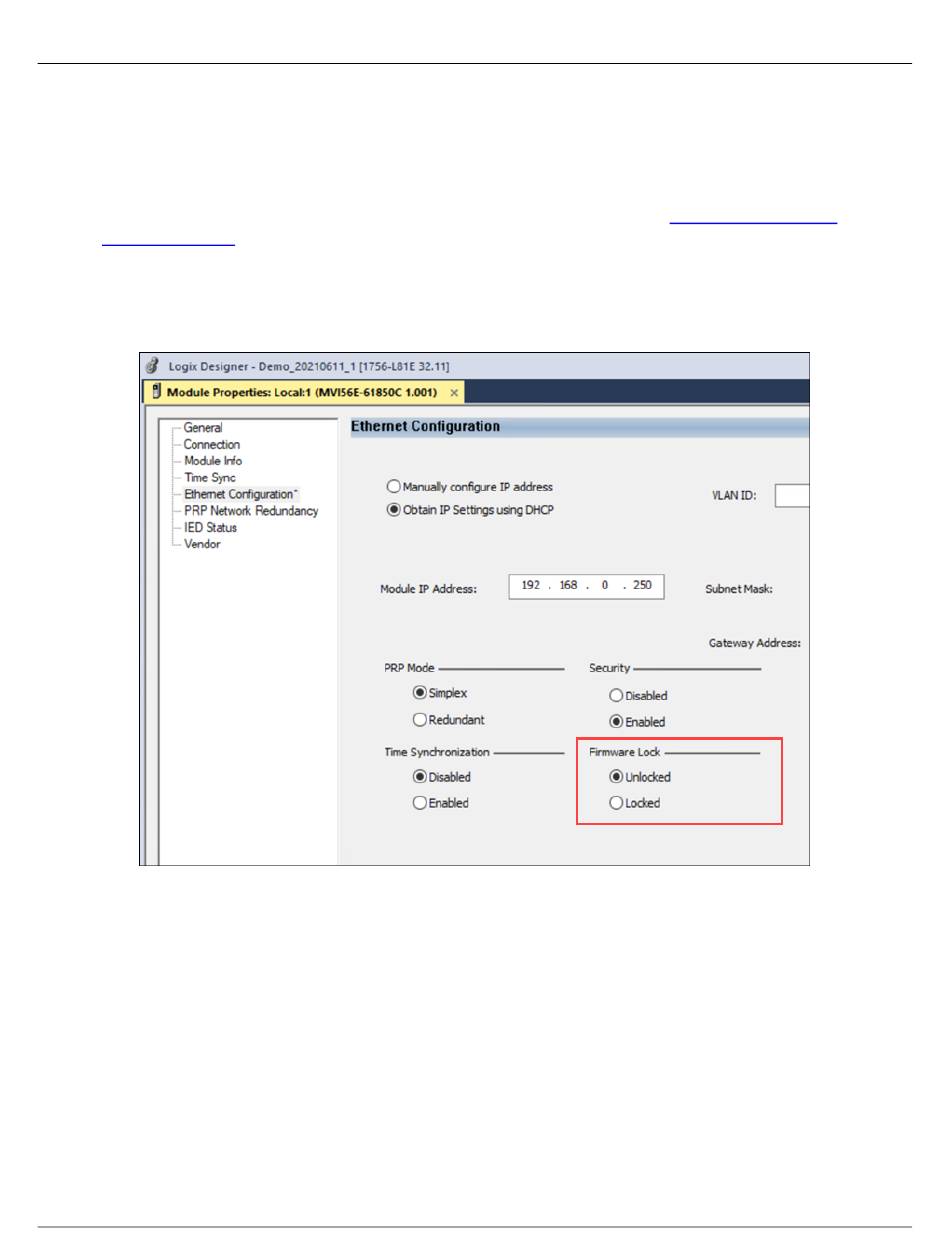

In the Module Properties dialog box, select E
2
Under Firmware Lock, select U
3
Click OK.
4
Before upgrading the firmware, set the ControlLogix processor to PROGRAM mode.
5
Once you are finished with the Ethernet configuration, you are ready to launch the
ProSoft MVI56E-61850C Configuration Manager software. Refer to the following
section for details.
ProSoft Technology, Inc.
Configuring the MVI56E-61850C Add-On Profile
THERNET
.
NLOCKED
(https://www.prosoft-
C
.
ONFIGURATION
User Manual
Page 20 of 116
