3.2

Configure the IP Address

Take the following steps to configure the IP address of the MVI56E-61850C.

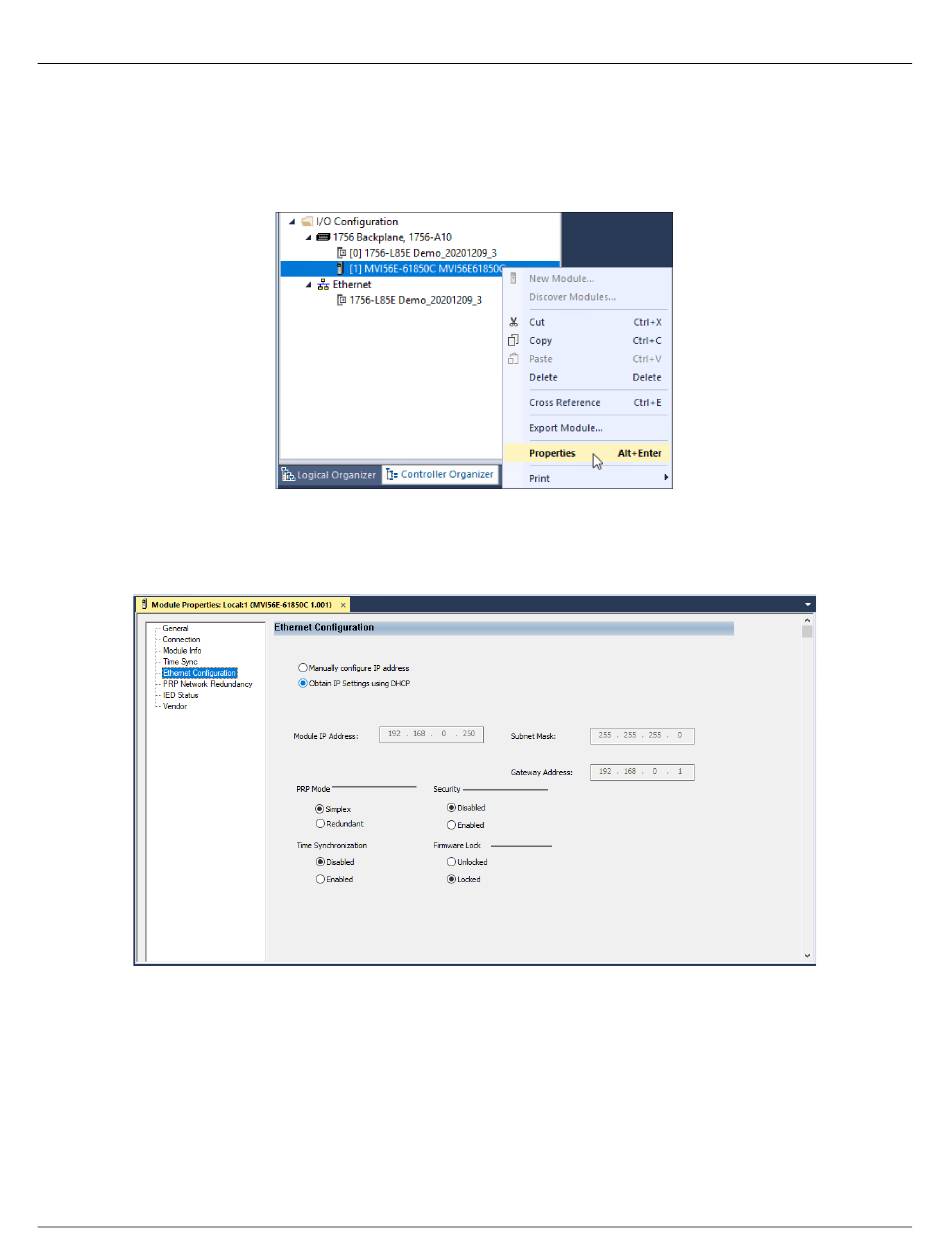

1 In the I/O Configuration section of the Controller Organizer, right-click the MVI56E-
61850C module and select P
The Module Properties dialog box displays.
2 Select E
THERNET
3
Select one of the following options:
M
ANUALLY CONFIGURE
•
manually enter values for Module IP Address, Subnet Mask, and Gateway
Address.
O
BTAIN
•
Dynamic Host Configuration Protocol (DHCP).
4 Click OK.
ProSoft Technology, Inc.
ROPERTIES
C
.
ONFIGURATION
IP
ADDRESS
IP DHCP: IP settings are configured automatically via
SETTINGS USING
Configuring the MVI56E-61850C Add-On Profile
. (Or just double-click the module.)
: If you select this option, you must
User Manual
