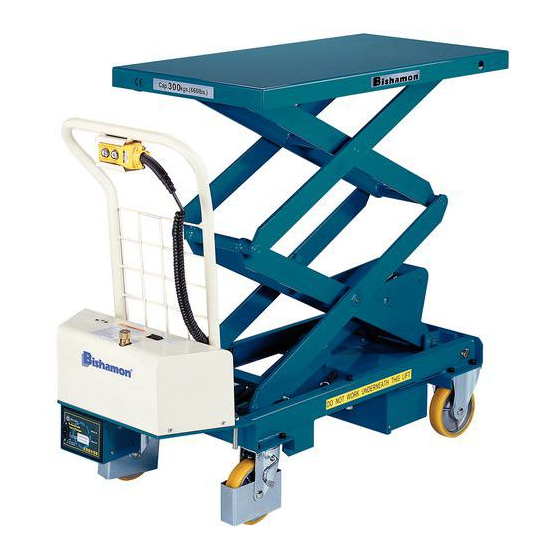

Battery powered lift table
Table of Contents
  • Specifications
  • Fehlerbehebung
  • Depannage
  • Solución de Problemas
  • Inspección Diaria
  • Especificaciones
  • Nabíjení Akumulátoru
  • Odstraňování Poruch
  • Technické Údaje

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

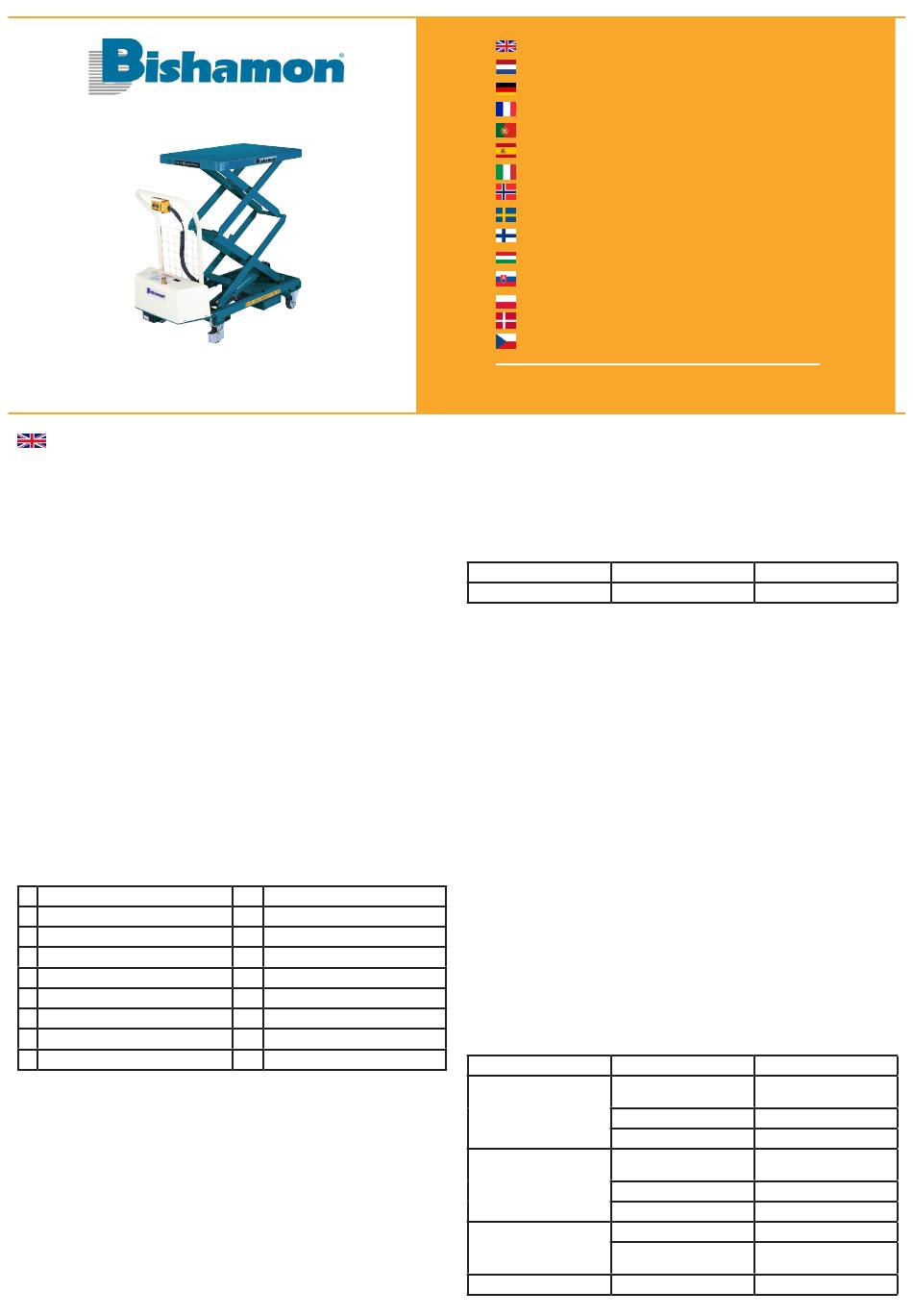

A031810 A031811 A031812
EN
BATTERY POWERED LIFT TABLE
WARNING
(1.) Do Not put foot or hand in scissors mechanism.
(2.) Do Not allow other person to stand in front of or behind lifter when it is moving.
(3.) Do Not move lifter when table is in raised position. Load could fall down.
(4.) Do Not enter under table.
(5.) Do Not overload lifter.
(6.) Do Not put foot in front of rolling wheel. Injury could result.
(7.) Watch difference of floor level when moving lifter. Load could fall down.
(8.) Do Not use lifter on slope or inclined surface. Lifter may become uncontrollable and create danger.
(9.) Do Not lift people. People could fall down and suffer severe injury.
(10.) Do Read «Caution» on the case of power pack of the lifter, before daily operation
CAUTION
(1.) Read this manual carefully and understand completely before operating lifter. Improper operation
could create danger.
(2.) This lifter is a movable lifter designed to lift or lower rated load on table. Do not use lifter for other
purpose than its intended use.
(3.) All lifter service must be performed by qualified personnel only.
(4.) Do Not lower table too fast. Load could fall down and create danger. Lower speed controller is available
for safety purpose.
(5.) Keep watching the condition of load. Stop operating lifter if load becomes unstable.
(6.) Brake lifter and switch the breaker off when sliding load on or off table.
(7.) Do Not side or end load. Load must be distributed on at least 80% of table area.
(8.) Do Not use lifter with unstable, unbalanced or loosely stacked load.
(9.) Practice maintenance work acccording to Regular Inspection.
(10.) Do Not modify lifter without manufacturer's written consent expecially the electric device.
(11.) Remove load from table and when servicing lifter, please use safety stopper to prevent table from
lowering.
(12.) This lifter is not designed to be water resistant. Use lifter under dry condition.
(13.) Prolonged continuous operation might cause damage of power pack.
(14.) Stop operation if temperature of hydraulic oil is too high.
(15.) Do Not supply built-in charger with AC voltages other than 110Vor220V.
NAME OF PARTS (see figure 1 at the end of the document)
1
Handle
2
Switch
3
Switch Cable
4
Circuit Breaker
5
Caution Label
6
Storage Level
7
Lowerina Speed Controller
8
Power Pack
9
Charger
DAILY INSPECTION
Daily inspection is effective to find the malfunction or fault on lifter. Check lifter on the following points
before operation. DO not use lifter if any malfunction or fault is found.
( 1. ) Check for scratch, bending or cracking on the lifer.
( 2. ) Check if there is any oil leakage from the cylinder.
( 3. ) Check the vertical creep of Table.
( 4. ) Check the smooth movement of the wheels.
( 5. ) Check the function of brake.
( 6. ) Check if all the bolts and nuts are tightened firmly.
( 7. ) Check the storage level by turning the circuit breaker on.
( 8. ) Check the lifting and lowering conditions by switching buttons on.
( 9. ) Check if there are broken hoses or broken electric wires by eyes.
OPERATING LIFTER
How to use the brake
Brake lifter when not moving it in order to prevent sudden movement. The brake is equipped with the
10
Swivel Caster
11
Swivel Brake Caster
12
Table
13
Link
14
Cylinder
15
Rigid Caster
16
Battery Case
17
Brake
18
Caster Cover (For CE)
EN
NL
DE
FR
PT
ES
IT
NO
SV
FI
HU
SK
PL
Instrukcja użytkowania
DA
CS
www.manutan.com
swivel caster on the right.
(1. ) Braking the wheel : Press the brake pedal.
(2. ) Releasing the brake : Lift up the brake pedal.
Lifting the table
1. Do Not overload lifter. Stay within it's rated capacity.
2. Do Not side or end load.Load must be distributed on at least 80% of table area.
3. Prolonged continuous working might cause damage of hydraulic power pack.
4. Stop operation if temperature of hydraulic oil is too high.
5. Do Not lift people. People could fall down and suffer severe injury.
Press the switch «UP» and the table lifts up to the desired position ranging vertical travel.
A031810
150 kg
Do not over load lifter.
Lowering the table
1. Do Not put foot or hand in scissors mechanism.
2. Do Not lower table with load too fast and stop suddenly. Impact load could be created and lifter could
be damaged.
3. Adjust lowering speed controller for safety sake.
Push the switch «DOWN» and the table lowers down to the desired position.
Moving lifter
• DO NOT move lifter on slope or inclined surface. Lifter may become uncontrollable and create danger.
• DO NOT allow other person stand in front of or behind lifter when it is moving.
• DO NOT move lifter when table is in raised position. Load could fall down.
• DO NOT put foot in front of rolling wheels. Injury could result.
• Watch difference of floor level when moving lifter. Load could fall down.
(1. ) Make the load stable to prevent it from falling down.
(2. ) Lower the table down before moving.
(3. ) Release the brake and move the lifter.
(4. ) Keep watching the condition of load. Stop operating lifter if load becomes unstable.
CHARGING THE BATTERY
(1. ) The lifter is equipped with «Free Maintenance» seal type battery. Need not attend but replace when
worn out.
(2. ) Turn the circuit breaker off when charging the battery.
(3. ) The attached automatic charger is only available for the optional voltage of 110V or 220V as referee/.
(4. ) Check the storage level indicator on the power pack for the battery condition.
(5. ) The switch of charger turns off automatically when the battery reaches 80% capacity or exceeds 12
hours in charging condition.
(6. ) Check the wiring or confirm AC voltage when AC power Indicator of Automatic Charger shows
Abnormal by Red Flashlight.
REGULAR INSPECTION
(1. ) Check the items emphasized in daily inspection (daily).
(2. ) Lubricate with grease the rails where roller moves. Also lubricate the grease nipples (monthly).
(3. ) Lubricate all the pivoting points and axles (every 6 months).
(4. ) Replace the hydranlic oil (every 12 months).
TROUBLE SHOOTING
TROUBLE
Table does not rise while motor
does not run.
2.Battery cord is disconnected.
3. Battery charge is insufficient.
1 .Faulty adjustment of relief
Table does not rise while motor
runs.
2.Faulty hydraulic pump.
3.Shortage of hydraulic oil.
1 .Oil leakage in lowering valve.
Vertical creep of table.
2.0il leakage from hydraulic
Oil leakage from cylinder.
User Guide
Gebruikersgids
Bedienungsanleitung
Guide utilisateur
Guia do utilizador
Guía de usuario
Manuale dell'utente
Brukerveiledning
Instruktioner
Käyttöopas
Felhasználói útmutató
Návod na použitie
Brugervejledning
Návod k použití
A031811
A031812
300 kg
500 kg
CAUSE
REPAIR
1 .Check the wiring refering to
1.Faulty wiring.
the actual wiring diagram.
2.Connect the battery cord.
3.Charge the battery.
1 .Adjust relief valve again.
valve.
2.Replace power pack.
3.Add oil.
1 .Replace lowering valve.
2.Check hydraulic circuit and
circuit.
repair.
Faulty sealing.
Replace sealing.
