Operation and
Service Manual
Read this manual carefully and understand completely before operating stackers. Keep filing this manual for
future reference. If this copy is lost, please contact your local supplier for a replacement.

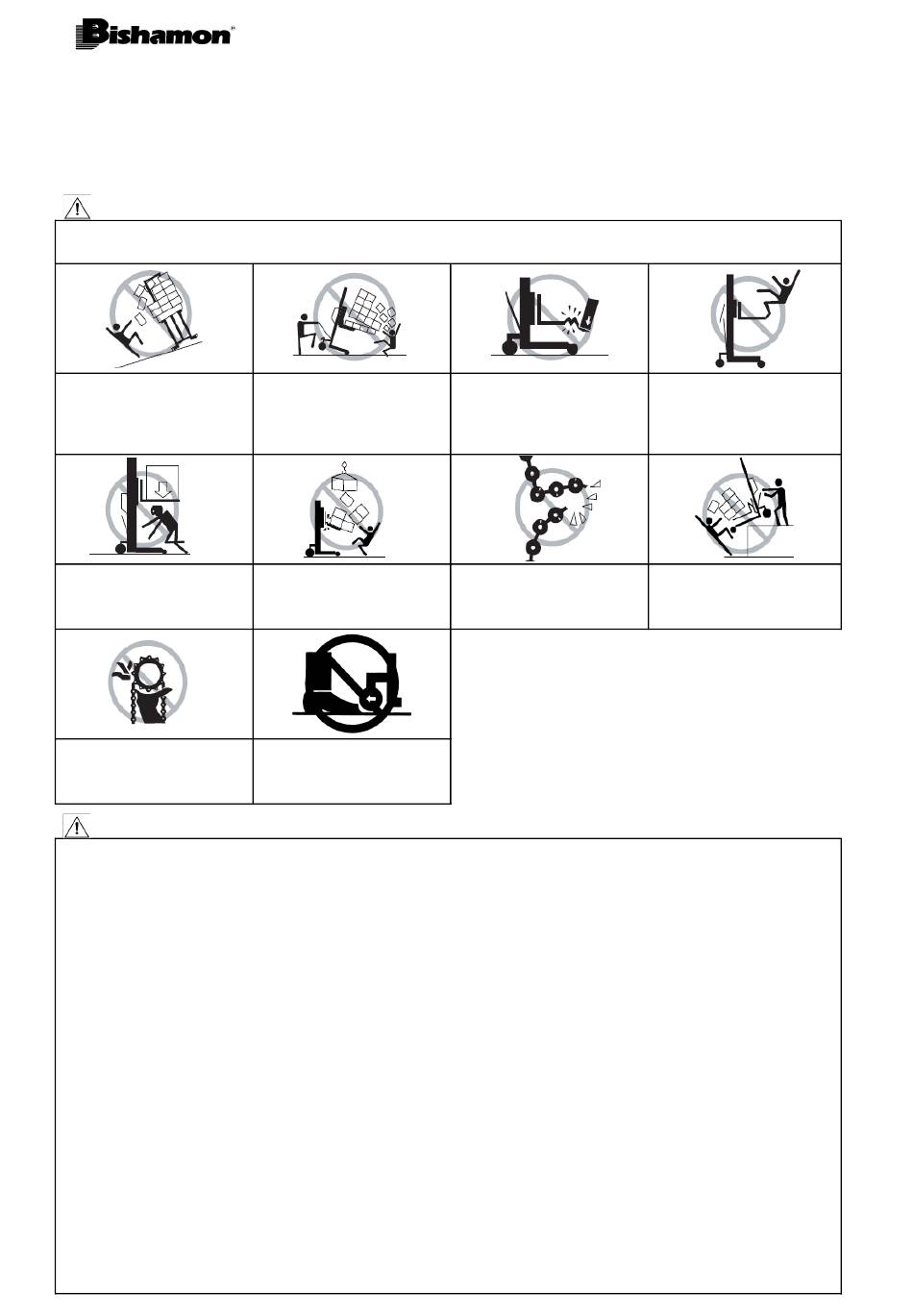

Warning !
◎ Hazard or unsafe practice which, if not avoided, may result in DEATH or SEVERE PERSONAL INJURY and
PROPERTY DAMAGE.
DO NOT use lifter on slope, unlevel
or soft surface. Lifter may become position. SEVERE PERSONAL
unstable and /or uncontrollable.
SEVERE PERSONAL INJURY and
PROPERTY DAMAGE could result.
NEVER go under forks.
SEVERE PERSONAL INJURY or
DEATH could result.
DO NOT put hand near chain
sprocket or other moving parts.
SEVERE PERSONAL INJURY
could result.
Caution !
◎ Hazard or unsafe practice which, if not avoided, may result in MINOR or MODERATE PERSONAL INJURY and PROPERTY DAMAGE.
1. READ THIS OPERATION MANUAL COMPLETELY BEFORE USING AND THOROUGHLY UNDERSTAND AND FOLLOW All SAFETY
INSTRUCTIONS. Wrongful use may result in accident.
2. This stacker lifter is designed to use on smooth floor with balanced, stable, firmly stacked load that is within capacity and loading diagram.
DO NOT use for any other purpose than its intended use.
3. Stacker lifter shall be operated by TRAINED personnel only. OPERATOR shall read "Operation Manual" completely and thoroughly
understand the controls and operation of this equipment BEFORE oeprating the lifter.
4. Do Not lower the fork with load with fast speed. Ot it may result in impact load and damage the stacker.
5. ALWAYS observe lifter and ALWAYS stay at the controls while the lifter is in motion. RELEASE controls and STOP lifter immediately if load
on the lifter appears to become unstable. NEVER leave the loaded lifter unattened unless the forks are fully lowered position.
6. Set the parking brake and park the stacker when moving the load onto the fork. Or the unit may start to move all of a sudden during
moving of the load and may result in falling of the load.
7. DO NOT use lifter with unstable, unbalanced or loosely stacked load. Unbalanced loads may become unstable and fall.
SEVERE PERSONAL INJURY and PROPERTY DAMAGE could result.
8. Do Not handle unsecured or unstable load that could fall backwards.
9. Perform the inspection following to the instructions of Operation Manual.
10. Do Not alter or modify the stackers in any way.
11. Do Not use forks or lift as a hoist or to pull up the load.
SEVERE PERSONAL INJURY and PROPERTY DAMAGE could result.
12. Keep the forks be widened equally in operation. Or it may result in damage to the unit and falling of the load.
13. ALWAYS keep feet, hands and fingers away from casters, load wheels and all moving components. SEVERE INJURY could result.
14. ALWAYS perform maintenance and inspection with lifter unloaded.
15. Do Not use Quick Lifting device when load is on the fork.
16. Do Not use Quick Lifting device with valve open. If valve is kept open, fork will fall down with faster speed when handle is released.
And it may result in rotating of the handle and it is dangerous.
17. When Quick Lifting handle is not used, make certain handle is off the roll pin.
18. Do Not move too fast. Or it may result in the inability of the control of the unit.
19. The lifter is NOT waterproof and is intended to be used in a dry environment and at a moderate temperature range.
Manually Operated Hydraulic Stackers
Always travel with forks in lowered
INJURY and PROPERTY DAMAGE
could result.
DO NOT overload lifter.
ALWAYS stay within designated
capacity and load center rating.
KEEP FEET CLEAR of rolling
wheels that could result in
SEVERE PERSONAL INJURY.
- 1 -
STS15
STS38
ST25(H)
ST30(H)WW
ST38(H)WN
STL50(H)
STL65(H)
ST65(H)
ST100(H)
ST100(H)WN
DO NOT load one fork more than
other and DO NOT load tips on
forks. SEVERE PERSONAL INJURY
or DEATH could result.
Replace chain every four years or if
inspection reveals excessive wear on
links, pins, side plates and deformed,
bent, rusted or broken links.
ST20(H)WW
STL25(H)
STL38(H)
ST38(H)
ST50(H)
ST50(H)WN
ST80(H)
ST80(H)WW
NEVER sit, stand or ride on forks.
SEVERE PERSONAL INJURY or
DEATH could result.
DO NOT use in areas of multi level
floor surface that could create loss
of control and result in SEVERE
PERSONAL INJURY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STS15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bishamon STS15

  • Page 1 Manually Operated Hydraulic Stackers STS15 STS38 ST20(H)WW STL25(H) ST25(H) ST30(H)WW STL38(H) ST38(H) Operation and ST38(H)WN STL50(H) ST50(H) ST50(H)WN Service Manual STL65(H) ST65(H) ST80(H) ST80(H)WW ST100(H) ST100(H)WN Read this manual carefully and understand completely before operating stackers. Keep filing this manual for future reference.
  • Page 2 1. Name of Components Carriage Fork Carriage Handle Fork Handle Carriage Handle Quick Lowering Fork Lowering Lifting Lever Lever Handle Pumping Quick Lifting Pedal Lift Cylinder Cable Lowering Pumping Pumping Lever Lowering Pedal Pedal Lift Cylinder Cable Lift Cylinder Lowering Cable Brake Pedal Brake...
  • Page 3 3. Moving (Maneuvering) ① Hold handle and move unit carefully. Caution ! * DO NOT move or turn around with load kept at a high position. * DO NOT pull the Lowering Lever when moving 4. Quick Lifting Device ( applicable only with Quick Lifting Device installed model ) Pulley shaft ①...
  • Page 4 5. Specifications (Manually Operated Model) Model STS15 STS38 ST20WW STL25 ST25 ST30WW STL38 ST38 ST38WN Capacity (Kgs) Vertical Travel (mm) 1500 1200 1500 1200 1500 Fork Min. Height (mm) 1590 Fork Max. Height (mm) 1590 1288 1588 1590 1290 Overall Height (mm)
  • Page 5 2. Grease to rail of post for roller, lubricate grease fitting of chain bracket and chain. (every 6 months) 3. Lubricate handle bracket pin and bearings (Every 6 months) 4. Replace hydraulic oil. (Every 12 months) Required Volume of Hydraulic Oil STS15 …………  0.35L STS38, ST38WN …………  0.69L ST20WW …………...
  • Page 6 8. Warranty We warrant the products manufactured by Sugiyasu Corporation to be free from defects in workmanship and material for 1 year after delivery of the products. Our obligation under this warranty is limited to repair or replacement, at our option, of any parts or material which, within this warranty period, are found to our satisfaction to be defective.
  • Page 7 Manufactured by Sugiyasu Corporation 3-21, 4 Chome, Hongo Cho, Takahama City, Aichi Pref., Japan 444-1394 Tel. 81-566-53-1126 Fax. 81-566-53-1844 E-mail : sugiyasu@bishamon.co.jp - 7 -...
