7.3.2 Using Excel Profile Generator to Map BACnet Objects

• From the Device Profiles page (Section
Generator" link to download the Excel spreadsheet used to create the profile to the default download folder on the local
PC.

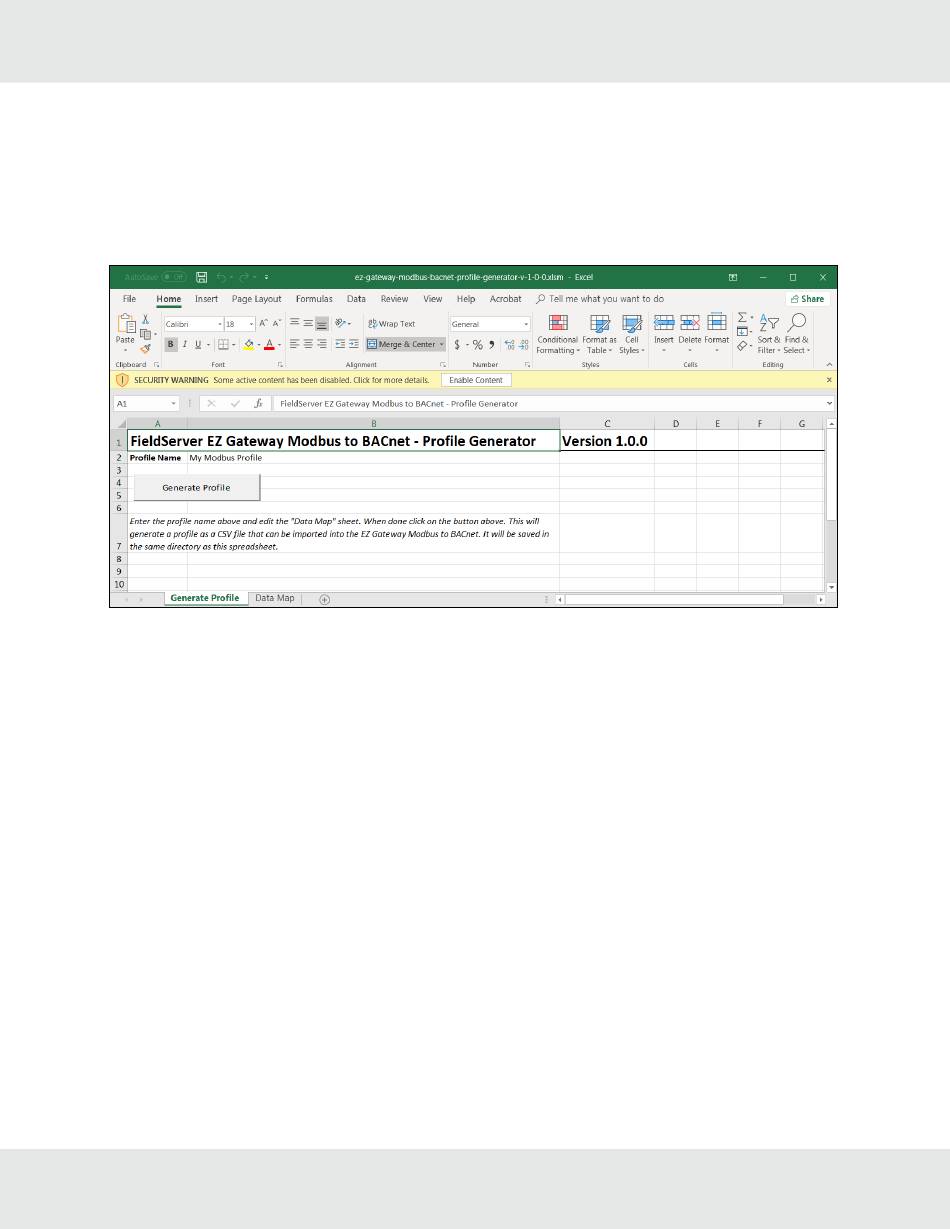

• Open the downloaded Excel spreadsheet and ensure that the content is not disabled by security settings (yellow security
warning bar across the top of the spread sheet).
NOTE: If the security warning is present simply click the Enable Content button found at the end of the
warning.
• Click the Data Map tab (near the bottom of the Excel spreadsheet).
• Edit or copy in Modbus registers as needed.
• Once all the point mappings are complete, switch back to the Generate Profile tab.
• Click the Generate Profile button to create a new Excel .csv file titled "My Modbus Profile".
• Go back to the EZ Gateway Device Profiles page (Section
button.
• Select the Excel .csv file and click the checkbox to load the mapping.
• Once all mappings are loaded, click Save in the Controls section.
7.3 Creating Device EZ
7.3 Creating Device EZ
EZ Gateway Modbus to BACnet Start-up Guide
Profiles), click on the "Download Excel Profile
Profiles) and click the Import
