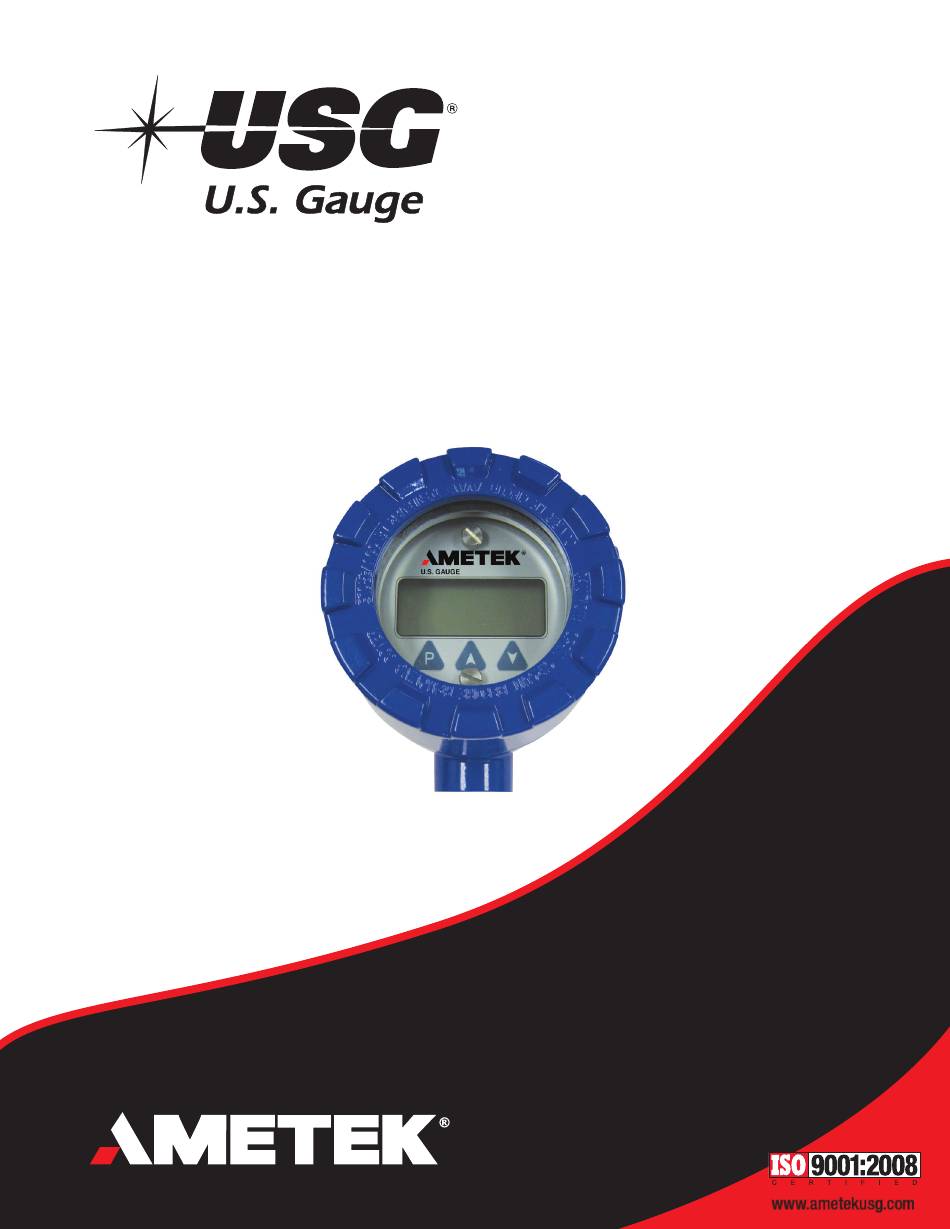

- Page 1 Installation and Operating Instructions for the Model DT-8300EX BATTERY OPERATED DIGITAL TEMPERATURE INDICATOR User Manual www.ametekusg.com...
-
Page 2: Temperature Sensor

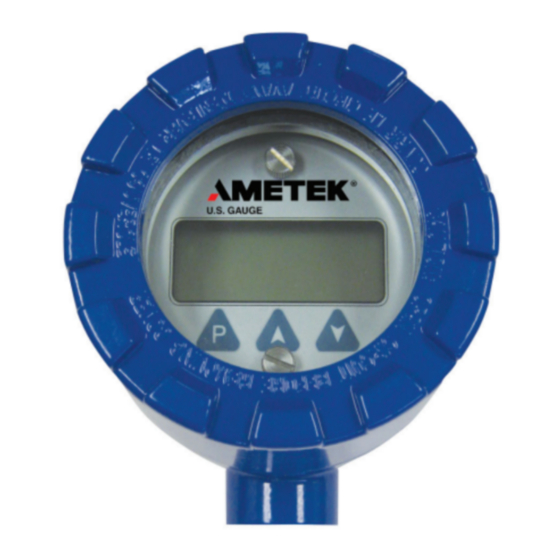

Model DT-8300EX DESCRIPTION AMETEK Model DT-8300EX battery operated digital temperature indicator is a compact, rugged and reliable indicating instrument which is self-contained and specifically designed for accurate temperature measurement applications, in areas without power availability. It is an ideal single unit substitute to conventional analog indicators because of its inherent accuracy in process measurement and other superior characteristics such as extremely low power consumption, immunity to shocks, dust, ambient temperatures, humidity and corrosive atmospheres. -
Page 3: Installation
Model DT-8300EX INSTALLATION AMETEK Model DT-8300EX is designed to be mounted in the field, either on a 2” pipe or wall/panel. AMETEK carries both types of 316 SST mounting brackets. All inter-connections to the instrument should be made with strong multi-strand wire of the order of 1.5 sq. mm. - Page 4 User Manual Model DT-8300EX BATTERY OPERATED DIGITAL TEMPERATURE INDICATOR 17348 CONFIGURATION All settings and adjustments must be done from the rear side of the electronics unit, after it has been removed from CONFIGURATION the outer housing by unscrewing the lid and loosening the screws on the face plate.
- Page 5 User Manual BATTERY OPERATED DIGITAL TEMPERATURE INDICATOR Model DT-8300EX BATTERY OPERATED DIGITAL TEMPERATURE INDICATOR 17348 17348 PROGRAMME USING FRONT PANEL PROGRAM USING FRONT PANEL PROGRAMME USING FRONT PANEL Insure that switch 1 is in the “ON” position and switch No. 4 is in the desired position for correct indication of temperature (“ON” = deg C, Insure that switch 1 is in the “ON”...
-
Page 6: User Settings
F. • The Model DT-8300EX has a scan Cycle Time of 10 seconds to extend Battery life. This means that the LCD display is updated every ten seconds. Because of this, the keys may appear to respond slowly at times. -
Page 7: Technical Specification
User Manual Model DT-8300EX SPECIFICATIONS Technical Specification Model DT-8300EX Type Micro-controller based Digital Battery-powered temperature Indicator Input Signal Thermocouple sensor or RTD Pt 100 (3 – wire) sensor. Thermocouple type J (Fe-Ko element) K (Cr-Al element) Indication 4 digit seven-segment LCD display Indication Accuracy Better than ±0.5 °C... -
Page 8: Limitation Of Warranty
AMETEK’s facility. Please contact customer service for a RMA#, usg.sales@ametek.com or 215-293-4100. The only responsibility of AMETEK under this warranty is, at its option and sole discretion, to replace or repair, free of charge any defective component part of such product.
