AFBR-S50 Time-of-Flight (ToF) Sensor Family Application Note
Reference Design

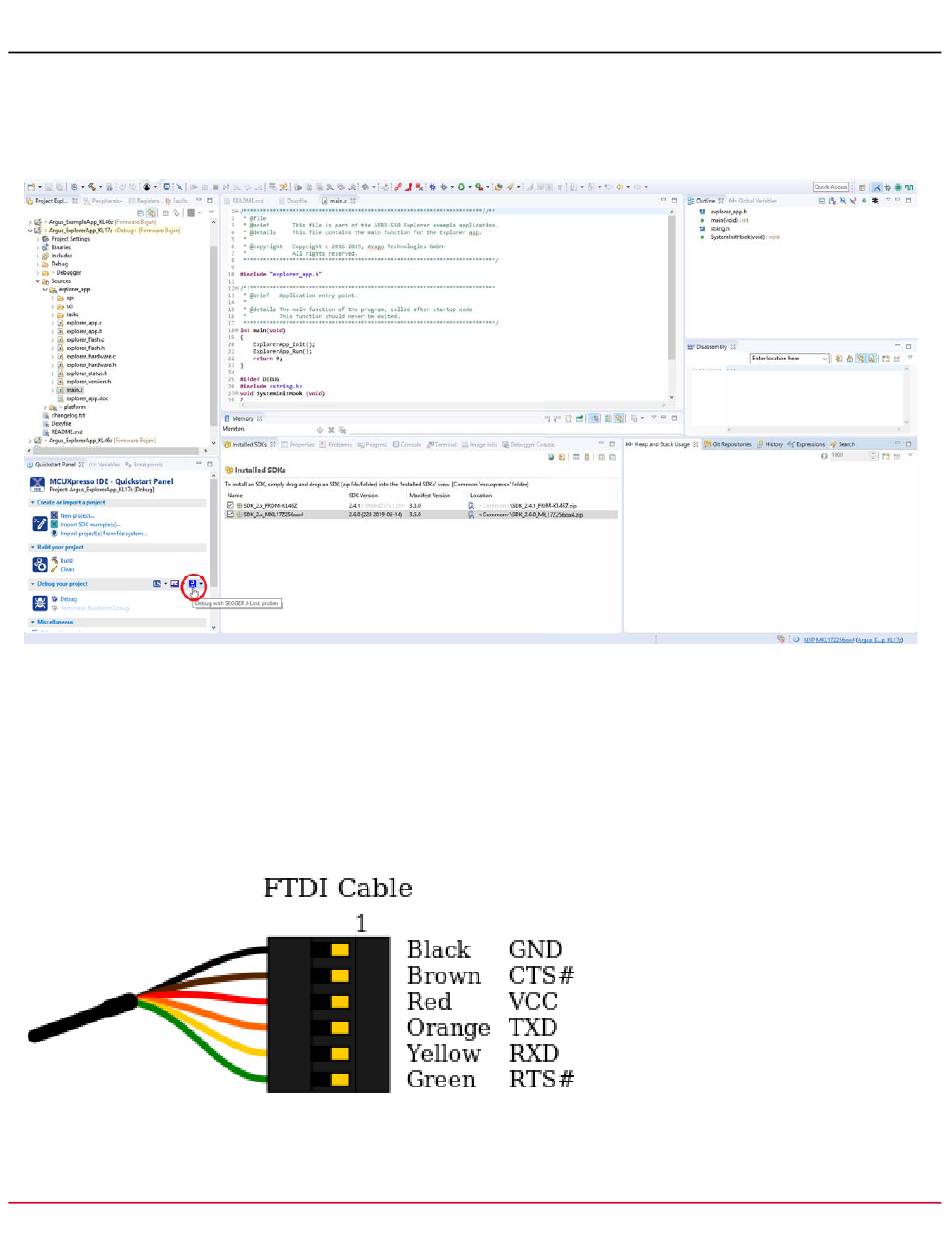

Figure 9
shows how to debug a project by clicking on the J-Link icon. The J-Link debug probe must be installed before
debugging.
Figure 9: J-link Debug Project

2.4.2 FTDI Cable

The FTDI cable is a USB to Serial (TTL level) converter, which allows for a simple way to connect TTL interface devices,
such as MCUs, to a USB. The cable is based on the FTDI FT232R IC, integrated within the cable USB type A connector.
The other end of the cable is terminated with the standard 2.54-mm (100-mil) 6-pin female header connector, exposing the
UART interface.
Figure 10: FTDI Cable Pinout
Broadcom
AFBR-S50-RD-AN100
16
