Arbor Technology FPC-810 Series User Manual

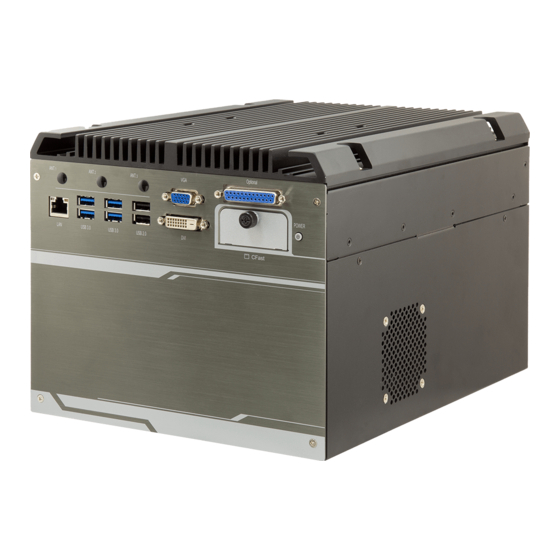

Robust box pc with intel 10th generation core i9/i7/i5/i3 processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FPC-810X Series
FPC-8108W-G1
FPC-8109-G1
Robust Box PC with Intel
10
Generation
®
th
Core
i9/i7/i5/i3 Processor
TM
User's Manual
Version 1.0
P/N: 4016810001100P
2022.01
1
