Back Panel

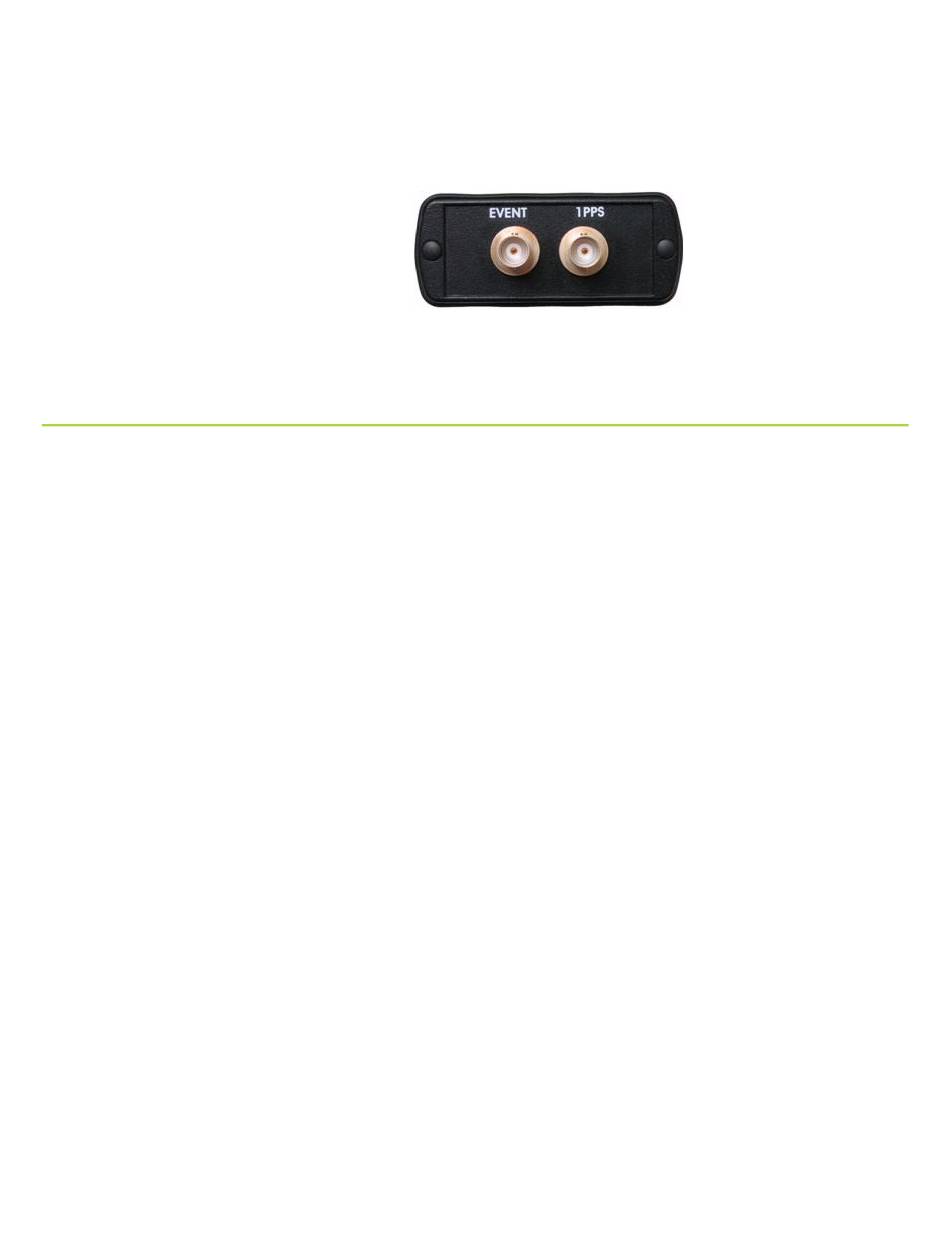

Figure 1-4 shows placing 1PPS and Event connectors (optional) on the back
panel

Option Authorization File (OAF)

Javad Navigation Systems issues an Option Authorization File (OAF) to enable
the specific options that customers purchase. An Option Authorization File
allows customers to customize and configure the LGG100-GG according to par-
ticular needs, thus only purchasing those options needed.
Typically, all LGG100-GG receivers ship with a temporary OAF that allows the
receiver to be used for a predetermined period. When the receiver is purchased,
a new OAF activates desired, purchased options permanently. Receiver options
remain intact when clearing the NVRAM or resetting the receiver.
The OAF enables the following kinds of functions for LGG100-GG. For a com-
plete list of available options and details, visit the JNS website (http://
www.javad.com) or consult your dealer.
• Type of signal (standard L1)
• Update rate standard 1 Hz
• RTCM Input/Output
• Event marker
• Advanced multipath reduction
• Wide Area Augmentation System (WAAS) and European Geostationary
• Receiver Autonomous Integrity Monitoring (RAIM)
• 1 PPS (Pulse-Per-Second; a timing signal)
www.javad.com
.
Navigation Overlay Service (EGNOS)
Figure 1-4. LGG100-GG Back Panel
