Intermec EasyCoder 3600 Instruction Sheet page 2

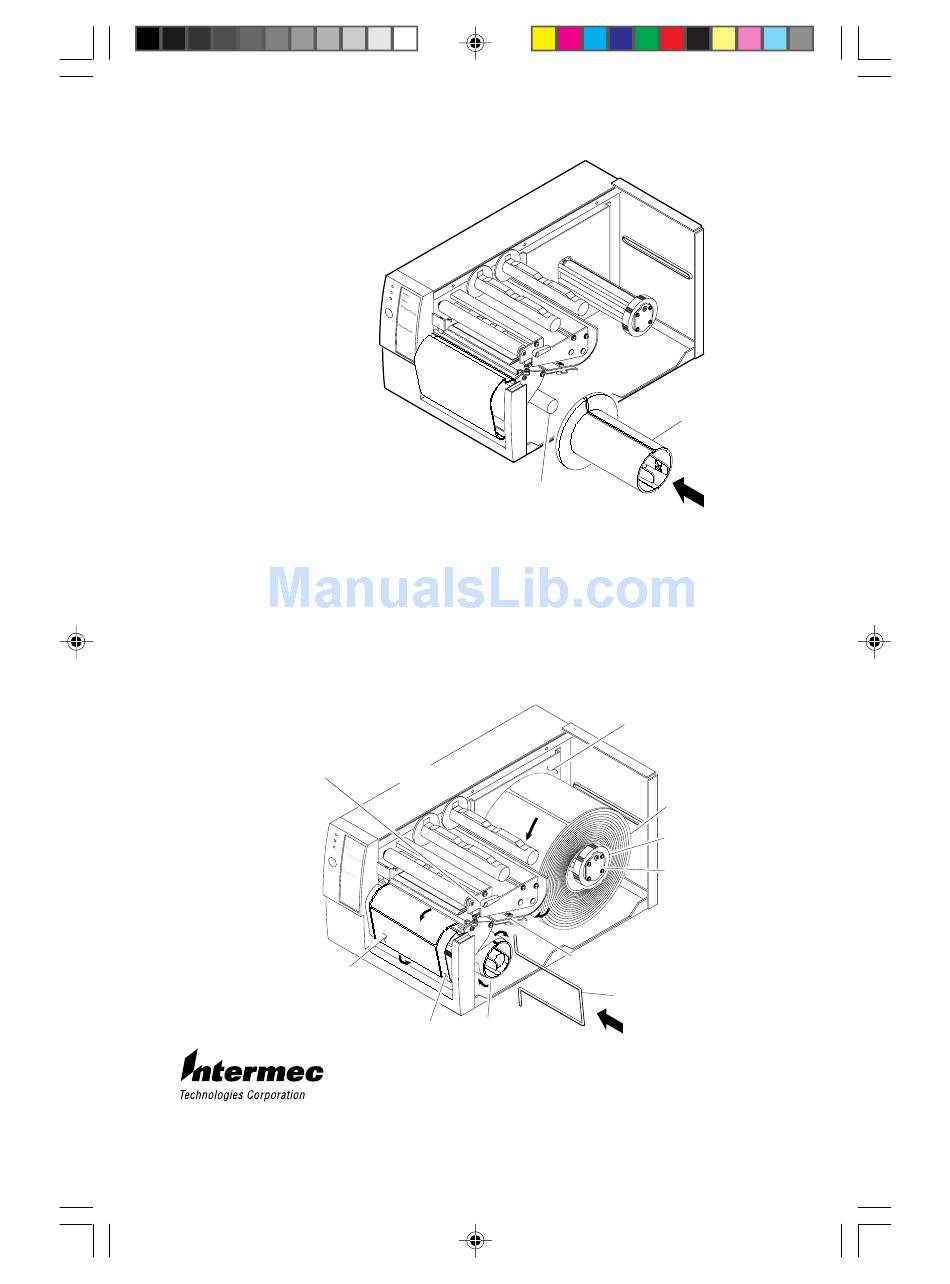

Step 2
Install the Batch Takeup
Reel
Slide the batch takeup
reel all of the way onto the
rewinder hub and rotate it
counterclockwise until it
snaps into place.
Step 3
Loading the Media
1. Refer to "Straight Through Printing" in the 3600 User's
Manual for media loading instructions.
2. Pull at least 12 inches of media out beyond the printhead.
3. Route the media around the media guide plate
and through the opening in the media access door.
4. Wind the media clockwise around the batch
takeup reel and install the media clamp
onto the batch take up reel.
Head lift lever
(Raise the printhead
for loading media.
Lower when ready to print.)
I n t e
r m e
3 6
0 0
Media
(Route through
opening in the
media access door.)
