Installation and Assembly:

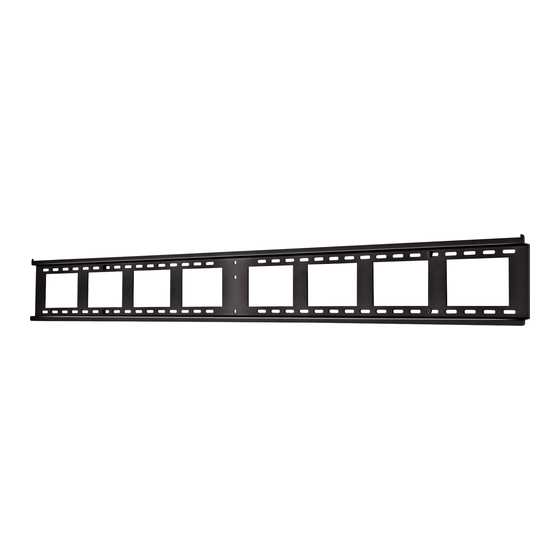

72" Wall Plate Accessory
Model: DS-VL-H072
Maximum Load Capacity: 350 lb (158.8 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 06-04-10 SHEET #: 120-9088-2 11-17-10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PEERLESS Mounts DS-VL-H072
Summary of Contents for PEERLESS Mounts DS-VL-H072
- Page 1 Installation and Assembly: 72" Wall Plate Accessory Model: DS-VL-H072 Maximum Load Capacity: 350 lb (158.8 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 06-04-10 SHEET #: 120-9088-2 11-17-10...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
- Page 3 Before you begin, make sure all parts shown are included with your product. PARTS LIST Description Qty. Part # A wall plate 024-1044 B M4 x 12 mm socket pin serrated washer head screw 510-1079 C 8 mm concrete anchor 590-0320 D wall plate connector 024-1045...
- Page 4 Installation to Double Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
- Page 5 Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 6 Installing Multiple Wall Plates and Screens Install adapter brackets (sold separately) to screens using adapter bracket instructions. Multiple wall plates and adapter brackets (sold separately) can be used to create multiple screen displays. WALL PLATE MAY APPEAR DIFFERENT THAN ILLUSTRATED ACC-DSV240 (SOLD SEPARATELY) 6 of 6...
