SPECIFICATIONS:
Model ......................................... 295XP6
Frequency Range ....................... 292 To 298 MHz
*Gain .......................................... 8.0 dBiC
Front to back .............................. 22 dB Typical
Beamwidth ............................... E=96°
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.2:1 Typical
Input Connector .......................... "N" Female
FEATURES:

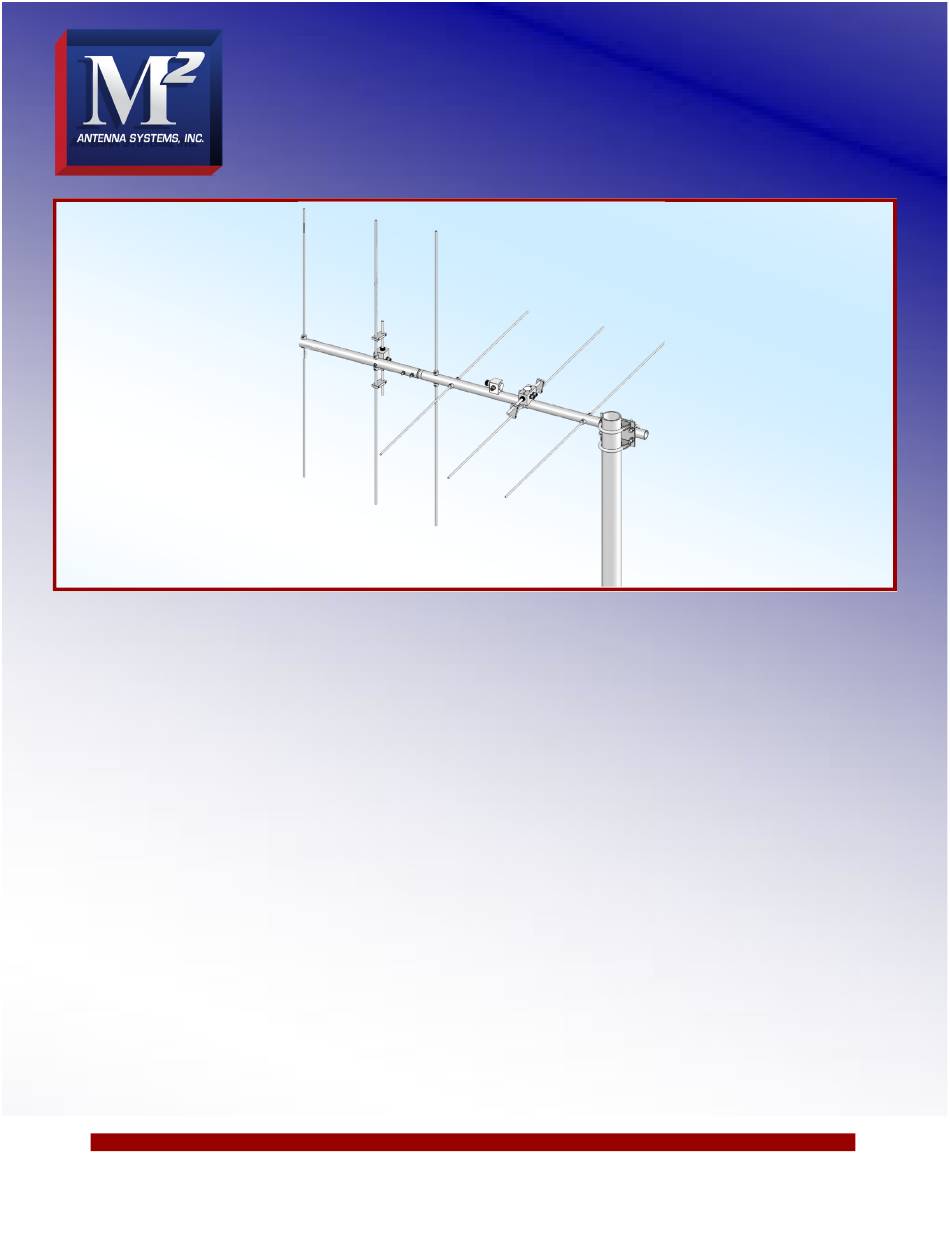

The 295XP6 is a small sized, computer optimized, cross-polarized antenna. Depending on phasing between the vertical
and horizontal element set, horizontal, vertical, right or left hand circular polarity is available. Electro-mechanical features
include machined components and stainless steel hardware. The rod elements are centered in the boom on UV stabilized
insulators and secured with stainless steel shaft retainer. All connectors are threaded and O-ring sealed to the feed block.
The block's internal cavity and connections are encapsulated in a silicone gel that seals out moisture and provides a
dielectric strength 3.7 times greater than air for improved power handling capability. Balun connectors are triple-sealed to
the coax and nut-sealed at the block.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 295XP6
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Power Handling .......................... 500 Watts
Boom Length / Dia ...................... 37" / 1"
Maximum Element Length .......... 20"
Turning Radius: .......................... 24"
Stacking Distance ....................... Call
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 0.5 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 2 Lbs. / 3 Lbs.
08/23/22
Rev.02
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems 295XP6
Summary of Contents for M2 Antenna Systems 295XP6
- Page 1 *Subtract 2.14 from dBi for dBd FEATURES: The 295XP6 is a small sized, computer optimized, cross-polarized antenna. Depending on phasing between the vertical and horizontal element set, horizontal, vertical, right or left hand circular polarity is available. Electro-mechanical features include machined components and stainless steel hardware. The rod elements are centered in the boom on UV stabilized insulators and secured with stainless steel shaft retainer.
- Page 2 295XP6 ASSEMBLY MANUAL TOOLS REQUIRED FOR ASSEMBLY: 1/2” and 7/16” end wrenches or sockets, pliers, measuring tape. HORIZONTAL ELEMENT ASSEMBLY 1. Separate the 3/16” ROD elements by length into two identical sets, “H” and “V”. Position the “H” element set along the boom by length and spacing as shown the DIMENSION sheet.
- Page 3 295XP6 DIMENSION SHEET...
- Page 4 295XP6 ASSEMBLY MANUAL 6. Install the 8-32 x 1/4” set screws (internal Allen head - tool supplied) into the SHORTING BARS. Slide the bars on the 1/4” Driven Element Block Rods and the 3/8” driven element rods. Position the shorting bars to the specified dimension on the DIMENSION SEET, measured BETWEEN THE OUTER FACE OF THE DRIVEN ELEMENT BLOCK AND THE INNER FACE OF THE SHORTING BAR.
- Page 5 295XP6 PARTS & HARDWARE DESCRIPTION ................QTY BOOM SECTION, 1” X .058 X 37” ..........1 SLEEVE, 7/8” X .058 X 14” ............1 ELEMENTS, 3/16” ROD x DIM SHEET ......... 6 DRIVEN ELEMENT ASSEMBLY ........... 2 BALUN, RG-6 1/2 2 PHASE LINE, RG-6 1/4 ...
