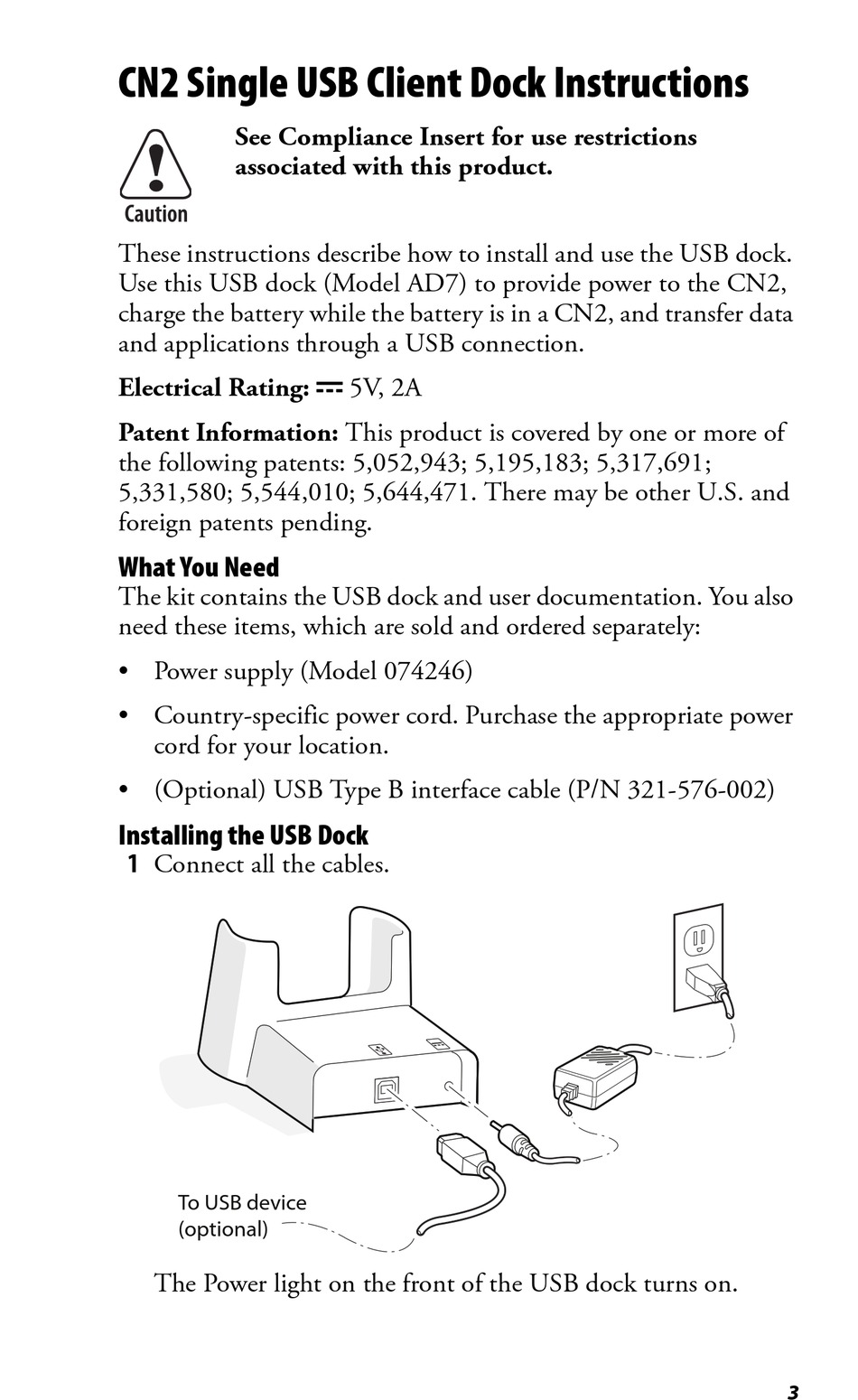

CN2 Single USB Client Dock Instructions

See Compliance Insert for use restrictions
associated with this product.
These instructions describe how to install and use the USB dock.
Use this USB dock (Model AD7) to provide power to the CN2,
charge the battery while the battery is in a CN2, and transfer data
and applications through a USB connection.
Electrical Rating: x 5V, 2A
Patent Information: This product is covered by one or more of
the following patents: 5,052,943; 5,195,183; 5,317,691;
5,331,580; 5,544,010; 5,644,471. There may be other U.S. and
foreign patents pending.
What You Need
The kit contains the USB dock and user documentation. You also
need these items, which are sold and ordered separately:
• Power supply (Model 074246)
• Country-specific power cord. Purchase the appropriate power
cord for your location.
• (Optional) USB Type B interface cable (P/N 321-576-002)
Installing the USB Dock
Connect all the cables.
To USB device
(optional)
The Power light on the front of the USB dock turns on.
