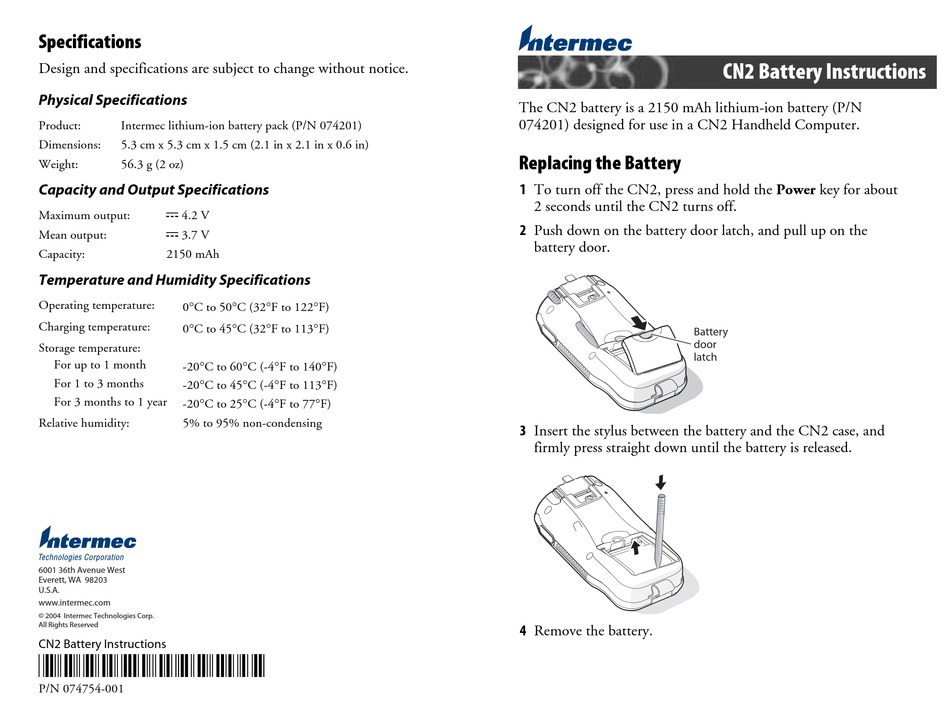

Intermec CN2 Instructions

Specifications

Design and specifications are subject to change without notice.
Physical Specifications
Product: Intermec lithium-ion battery pack (P/N 074201)
Dimensions: 5.3 cm x 5.3 cm x 1.5 cm (2.1 in x 2.1 in x 0.6 in)
Weight: 56.3 g (2 oz)
Capacity and Output Specifications
x 4.2 V
Maximum output:
x 3.7 V
Mean output:
Capacity: 2150 mAh
Temperature and Humidity Specifications
Operating temperature:
0°C to 50°C (32°F to 122°F)
Charging temperature:
0°C to 45°C (32°F to 113°F)
Storage temperature:
For up to 1 month
-20°C to 60°C (-4°F to 140°F)
For 1 to 3 months
-20°C to 45°C (-4°F to 113°F)
For 3 months to 1 year
-20°C to 25°C (-4°F to 77°F)
Relative humidity: 5% to 95% non-condensing
6001 36th Avenue West
Everett, WA 98203
U.S.A.
www.intermec.com
© 2004 Intermec Technologies Corp.
All Rights Reserved
CN2 Battery Instructions
*074754-001*
P/N 074754-001
The CN2 battery is a 2150 mAh lithium-ion battery (P/N
074201) designed for use in a CN2 Handheld Computer.
Replacing the Battery
1 To turn off the CN2, press and hold the Power key for about
2 seconds until the CN2 turns off.
2 Push down on the battery door latch, and pull up on the
battery door.
Battery
door
latch
3 Insert the stylus between the battery and the CN2 case, and
firmly press straight down until the battery is released.
4 Remove the battery.
