 CBA-080AT2-HI(-V1)
 CBA-080AT2-HI(-V1)-T
 CBA-080AT2-HI(-V1)-CE
 CBA-500AT2-HC(-V1)
 CBA-500AT2-HC(-V1)-T
 CBA-500AT2-HC(-V1)-CE
 CBA-1200AT2-HI-V1
 CBA-1200AT2-HI-V1-CE
 CBA-2000AT2-HI-V1
 CBA-2000AT2-HI-V1-CE
このたびは、 CBA シリーズをお買い上げ頂き、誠にありがとうございます。
チコーエアーテック㈱は「風の技術」を有効に利用し、コンパクトに空気をクリ-ンにすることをテ-マとして努力しております。
CBA シリーズは,この風の技術をコンパクトにまとめた省エネ形のクリ-ンBOXです。
長期間故障なく安全にご使用いただくために、この取扱説明書をよくお読みいただき,本機の性能を十分に発揮できますよう
正しいお取扱いをお願いします。
We greatly appreciate that you have purchased our CBA Series.
CHIKO AIRTEC CO., LTD. is working to achieve clean air with compact equipment while utilizing "air technology"
effectively.
The CBA Series is an energy-saving-type clean box that realizes "air technology" in a compact body.
Please read this instruction manual thoroughly and handle this CBA Series machine correctly so that you can use it
safely for a long time and enjoy its full performance.
警告
WARNING
注意
CAUTION
取扱説明書
Instruction Manual

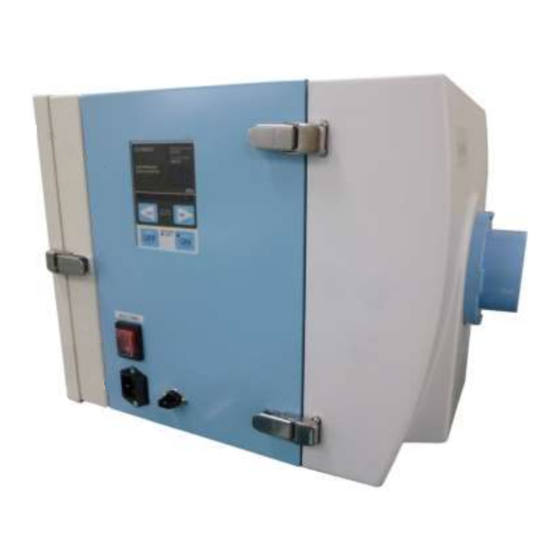

集塵機
Dust Collector
型式 MODELS
~はじめに Note To Users~
本書中のマークについて / Symbols used in this manual
絶対に行ってはいけないこと。及び、取り扱いを誤ると重大事故につながる内容を示し
ています。
This symbol indicates actions that should not be performed in any case, or actions that
may lead to a serious accident caused by incorrect handling.
正しく安全にご使用頂くための注意事項。及び、取り扱いを誤ると、故障の原因になる
内容を示しています。
This symbol indicates cautions to assure safe use, and actions that may lead to failure
caused by incorrect handling.
チコーエアーテック株式会社
CMN-061/620/063/069-002
(100-115V)
(200V)
(220-240V)
(100-115V)
(200V)
(220-240V)
(200V)
(220-240V)
(200V)
(220-240V)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBA-080AT2-HI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chiko CBA-080AT2-HI

  • Page 1 正しいお取扱いをお願いします。 We greatly appreciate that you have purchased our CBA Series. CHIKO AIRTEC CO., LTD. is working to achieve clean air with compact equipment while utilizing “air technology” effectively. The CBA Series is an energy-saving-type clean box that realizes “air technology” in a compact body.
  • Page 2 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 Original instructions 注意 CAUTION  粉塵爆発のおそれのない乾いた粉塵の吸引にご使用下さい。 Use the product for sucking up dry, non-explosive dust.  次の物質は吸引しないこと。 Do not suck up the following substances: 引火性物質・・・・・・・ガソリン・シンナー・ベンジン・灯油・塗料など。  Flammable substances ・・・・・・・Gasoline, thinner, benzene, kerosene, paint, etc.
  • Page 3: Table Of Contents

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 目次 CONTENTS 製品使用上のご注意 Cautions on Using Product ....................4 全般 General ............................. 4 運搬・設置・保管・輸送の条件 The condition of carry installation, transportation and safekeeping.... 4 接続 Connection ............................4 運転 Operation ............................5 修理・分解・改造 Repair, disassembly and modification ................5 廃棄...
  • Page 4: 製品使用上のご注意 Cautions On Using Product

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 1 製品使用上のご注意 Cautions on Using Product 全般 General  設置、接続、運転、操作、点検、故障診断の作業は、取扱説明書の内容に従い、適切に行って下さい。 誤った作業を行うと、火災・感電・けがの原因になります。 Perform installation, connection, operation, manipulation, inspection and failure diagnosis work properly in accordance with the instruction manual. Incorrect work may cause fire, electrical shock and injury.
  • Page 5: 運転 Operation

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 運転 Operation  運転中に移動させないで下さい。 Do not move it during the operation.  停電した時には、電源を切って下さい。復旧時に、けが・装置破損の原因になります。 Turn OFF the power when an instantaneous power interruption occurs. Otherwise, injury or product damage may be caused when the product recovers.
  • Page 6: Name And Structure Of Product

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015  電源ケーブル(付属)とリモートケーブル(別売) Power cable(standard accessory) and Remote cable(option) 電源ケーブル (3m) ×1 Power cable ※ ケーブルは地域によって異なります。 ※ The cable is different in each region. 100-115V 国内 200V 国内 220-240V 海外 (Japan) (Japan) (Other than Japan)...
  • Page 7: 標準付属品 Standard Accessories

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 標準付属品 Standard accessories 排気 HEP フィルタ 1次フィルタ 2次フィルタ 排気フィルタ Exhaust HEP filter Primary filter Secondary filter Exhaust filter  1次フィルタ :粉塵やヒュームを収集・吸着します。 :Collecting /Adsorbing fine dust and fumes. Primary filter  2次フィルタ :電気部品を粉塵から守ります。 :Protecting the circuit and the electrical parts.
  • Page 8: 操作 Operation

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 4 操作 Operation 電源について Power supply 異なった電源で運転されますと、故障の原因になります。 Operating the product with a different power supply may cause a failure. 3 分以上のインターバルをおいて、ON/OFF の操作を行ってください。 それ未満、特に 30 秒未満の ON/OFF を繰り返すと故障の原因となります。 Allow an interval of at least three minutes before turning the equipment ON or OFF.
  • Page 9 Lo: Each press of this button decreases the setting by 1 level or changes Voltage-setting. Hi:1 回押すごとに 1 レベル上昇、又は設定電圧変更。 Hi: Each press of this button increases the setting by 1 level or changes Voltage-setting. ※設定電圧変更は CBA-080AT2-HI(-V1)-CE のみ有効です。 Chnging Voltage-setting is only available for CBA-080AT2-HI(-V1)-CE. ④ 圧力不足 赤 異常をお知らせします Pressure down Alerts when an abnormality occurs.
  • Page 10 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 ●電圧設定モード変更について(CBA-080AT2-HI(-V1)-CE のみ) About changing VOLTAGE-SETTING mode. (Only for CBA-080AT2-HI(-V1)-CE) ご使用の入力電圧によって静圧が異なるため、入力電圧に合った設定を下記操作により選択します。 ①主電源が ON で、運転停止状態の時に OFF ボタンを長押しします。 ②運転圧力表示部に「C※」(※は2から3の数字。初期状態では 2 になります。)が表示されます。 ③能力レベルボタンを押すことにより、C2、C3と変わります。 Because of the difference of static pressure by input voltage, set up VOLTAGE-SETTING which matches to input voltage by functioning the procedure below.
  • Page 11: リモートコネクタについて Remote Connector

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 4.3 リモートコネクタについて Remote connector 遠隔操作のための運転信号入力や、出力信号などを取り出すことができます。 This connector is used to input an operation signal for remote operation, or to output an output signal. (オスコネクタコード 3M 別売) MT-173-8 (male connection cord: 3 meters in option).
  • Page 12: 別売リモートケーブルについて Remote Cable (Sold Separately)

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 5 別売リモートケーブルについて Remote Cable (Sold Separately) 電気回路図 Electrical circuit diagram リモート運転 Remote operation switch 運転入力信号 リモートモード移行 Operation input signal (ON 時に遠隔操作可能、この時パネル操作は不可) Shifting to remote mode 遠隔操作切替信号 4 (Remote control is possible in the ON, and the panel Remote-control operation is impossible to control at this time.)
  • Page 13 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015...
  • Page 14: 各線の色と信号について Color And Signal Of Each Wire

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 各線の色と信号について Color and signal of each wire 線色 信号名称 役割 Signal name Role Wire color ④⑧を短絡後、①を短絡して運転を開始します 黒 運転入力信号 ① After short-circuiting pins④and⑧、short-circuit pin①to start Operation input signal Black operation. ④と⑧を短絡してリモート操作に移行させます 遠隔操作切替信号 短絡するとタッチパネルの操作はできなくなります 赤/白...
  • Page 15: 遠隔操作と本体操作について Remote Operation And Operation From Main Body

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 遠隔操作と本体操作について Remote operation and operation from main body  遠隔操作で ON/OFF する場合は、④と⑧を短絡させておきます。 ①を短絡 The wire [1] is short-circuited.→ON ①を短絡しない The wire [1] is not short-circuited→OFF (「各線の色と信号について」の表を参照ください) Short-circuit the wires [4] and [8] each other when turning ON and OFF the dust collector by remote operation.
  • Page 16: 保守・点検 Maintenance And Inspection

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 6 保守・点検 Maintenance and Inspection 保守点検時の注意事項 Cautions on maintenance and inspection 点検時は必ず電源を切り、コンセントからプラグを抜いて、電路遮断を 行ってください。 Make sure to turn OFF the main power, and disconnect the power plug from the electrical outlet to cut off the electricity before starting inspection.
  • Page 17: Replacement Of Primary And Secondary Filters

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 1次・2次フィルタの交換 Replacement of primary and secondary filters ①フィルタケースのパッチン錠を 外します Release the snap locks of the filter case. ②フィルタケースを開け、2次フィルタを取り外す ③フィルタケースより1次フィルタを取り外します 《フィルタケースとフィルタのスキマ(左右)にマイナスドライバ 《1次フィルタはフィルタケースの円筒パイプにフィルタ紙パッ ーを差し込むと容易にフィルタが取り外せます。》 キン部を差し込んでいます。手前に引き抜けば外せます。》 Open the filter case, and remove the secondary filter. Remove the primary filter from the filter case.
  • Page 18: ヒューズの交換 Replacement Of Fuses

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 6.7 ヒューズの交換 Replacement of fuses 過負荷により、ヒューズが切れた場合は、ヒューズを交換してください。 When the fuse is blown out by excessive current generated by a trouble in the internal equipment, replace it. ■ 黒いボックスを引き出し、 ■ ヒューズは、主電源の下にあります。 中に入っているヒューズを交換してください The fuse is accommodated inside the black box Pull the black box provided on the MAIN POWER switch, provided on the MAIN POWER switch.
  • Page 19: 正常に動作しない場合の対策 Countermeasures Against Abnormal Operation

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 7 正常に動作しない場合の対策 Countermeasures against Abnormal Operation 故障現象 原因 対策・方法 Failure phenomenon Cause Countermeasures 電源が入っていない 電源を入れる Turn ON the power. The power is not turned ON. モータ焼け モータ交換(修理依頼願います) Motor seizing Replace the motor. (Ask for repair.) [1] 排気口が塞がれていないか確認...
  • Page 20: 危険シール位置 Indication Of Danger Labels

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 8 危険シール位置 Indication of DANGER Label CE MODEL 9 電気回路図 Electrical Circuit Diagram CBA-080AT2-HI(-CE)
  • Page 21 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 CBA-500AT2-HC(-CE) CBA-1200AT2-HC(-CE)...
  • Page 22 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 CBA-2000AT2-HI-V1(-CE)...
  • Page 23: 本体仕様 Specifications Of Main Body

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 本体仕様 Specifications of Main Body 最大静圧 最大風量 出力 電圧 電流値 周波数 騒音値 質量 Suction 型式 Suction air Output Voltage Current Frequency Noise Mass static Model volume (W) (V) (A) (Hz) (dB) (kg) pressure (m...
  • Page 24: 消耗品リスト Consumable Parts List

    チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 消耗品リスト Consumable Parts List CBA-080AT2-HI CBA-500AT2-HC CBA-1200AT2-HI- CBA-2000AT2-HI- 消耗年数 Life (-T/-CE) (-T/-CE) V1 (-CE) V1 (-CE) 1 次フィルタ:1-3 カ月 FB-25 FB-30 FB-30 FB-700-22 Primary filter: 1 to 3 months 2次フィルタ:3-6 ヶ月 CHF-2525-50 CHF-3030-50...
  • Page 25 チコーエアーテック株式会社 Copyright CHIKO AIRTEC CO., LTD. 2015 お買い上げメモ Memo about purchase 形 式 製造番号 Model Manufacturer’s serial number: 購入年月日 運転開始日 年 月 Date of purchase Start of operation お客様お名前 Your name 住所 Address: 電話 Phone : 担当者 Person in charge チコーエアーテック株式会社...
