Forest TPCSUM88 Quick Start Manual

8x8 corner summerhouse
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
8x8 CORNER
SUMMERHOUSE

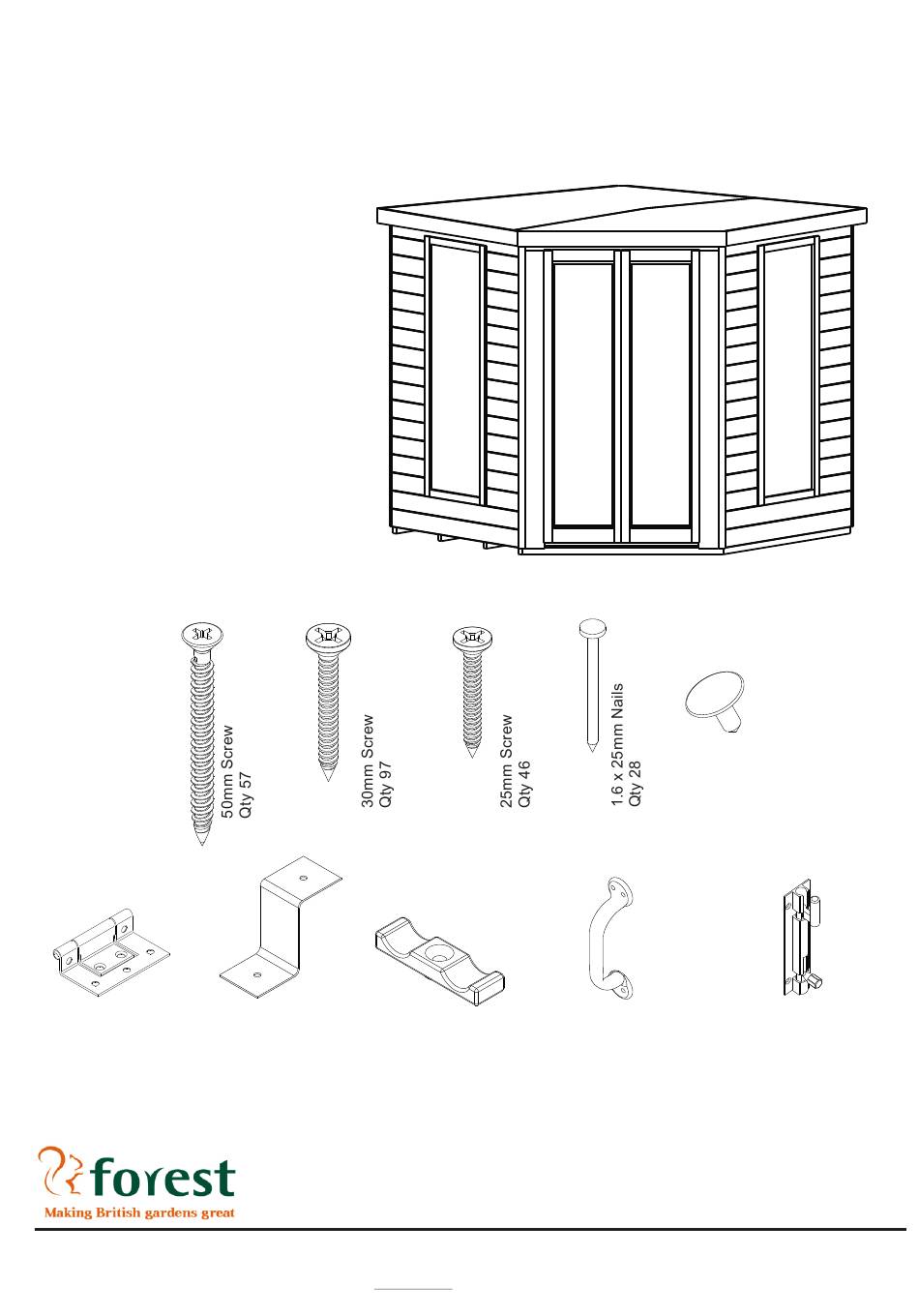

8'x8' TPCSUM88
