Thank you for purchasing your shed from Forest Garden. No matter what size garden, a shed is the most practical
of garden structures. Simply follow these step by step instructions and our top tips and you'll be enjoying your
shed for many years to come. If you have any questions or need advice, our friendly team is here to help.
SHED
REVERSE APEX SHED

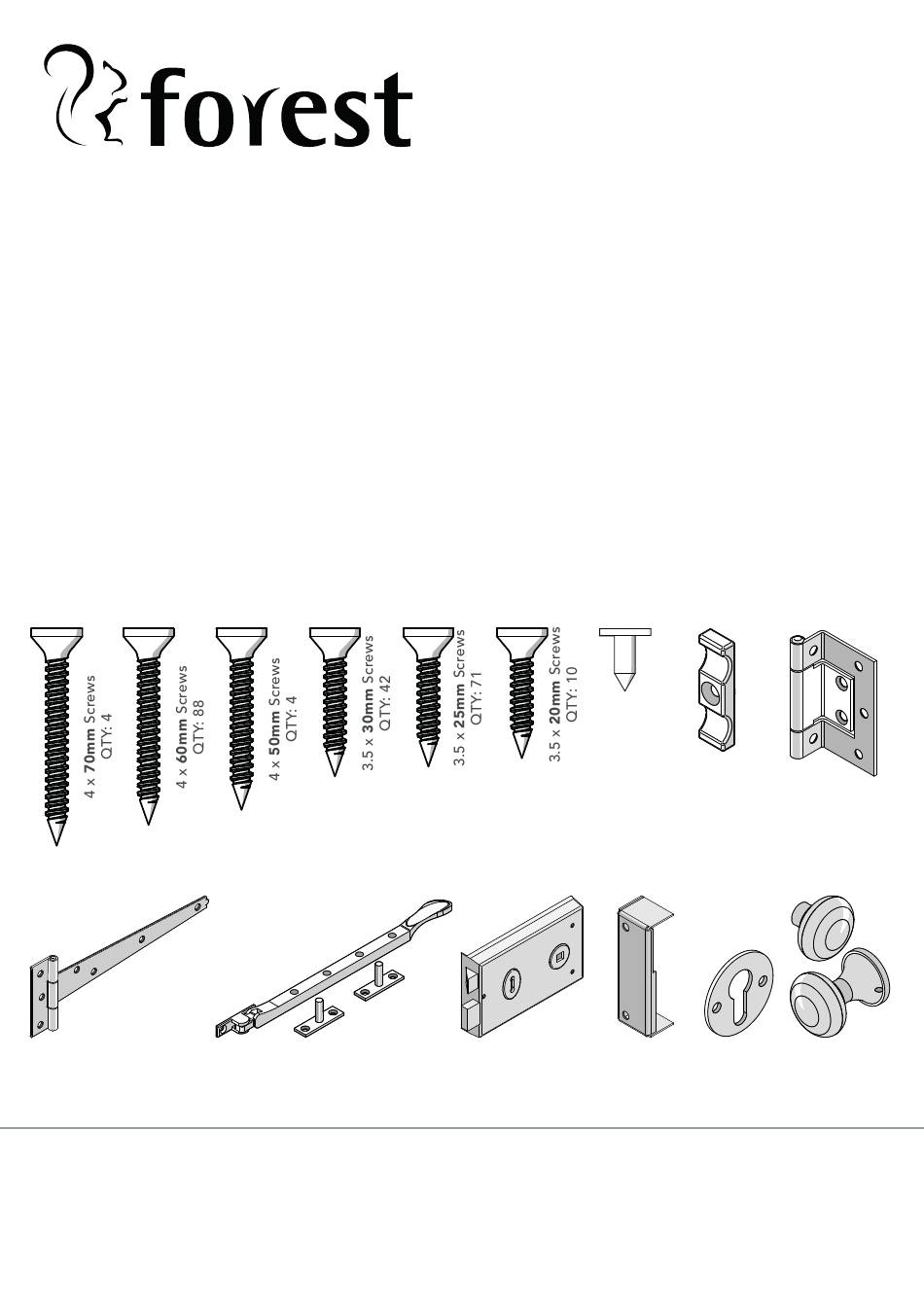

FIXING PACK CONTAINS:
FIXING PACK CODE: TPRA86MFP
Tee Hinges
QTY: 3
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
77 Camden Street Lower Dublin, D02 XE80, Ireland, Tel: +353 1903 6214
INSTRUCTIONS
(8x6)
Casement Stay & Pins
QTY: 1
Felt Tacks
QTY: 124
Rim Lock
Lock Receiver
QTY: 1
QTY: 1
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
ISSUE: 0122
Turn Buttons
QTY: 2
Cranked Hinges
QTY: 2
Escutcheon
Lock Knob Set
QTY: 1
QTY: 1
