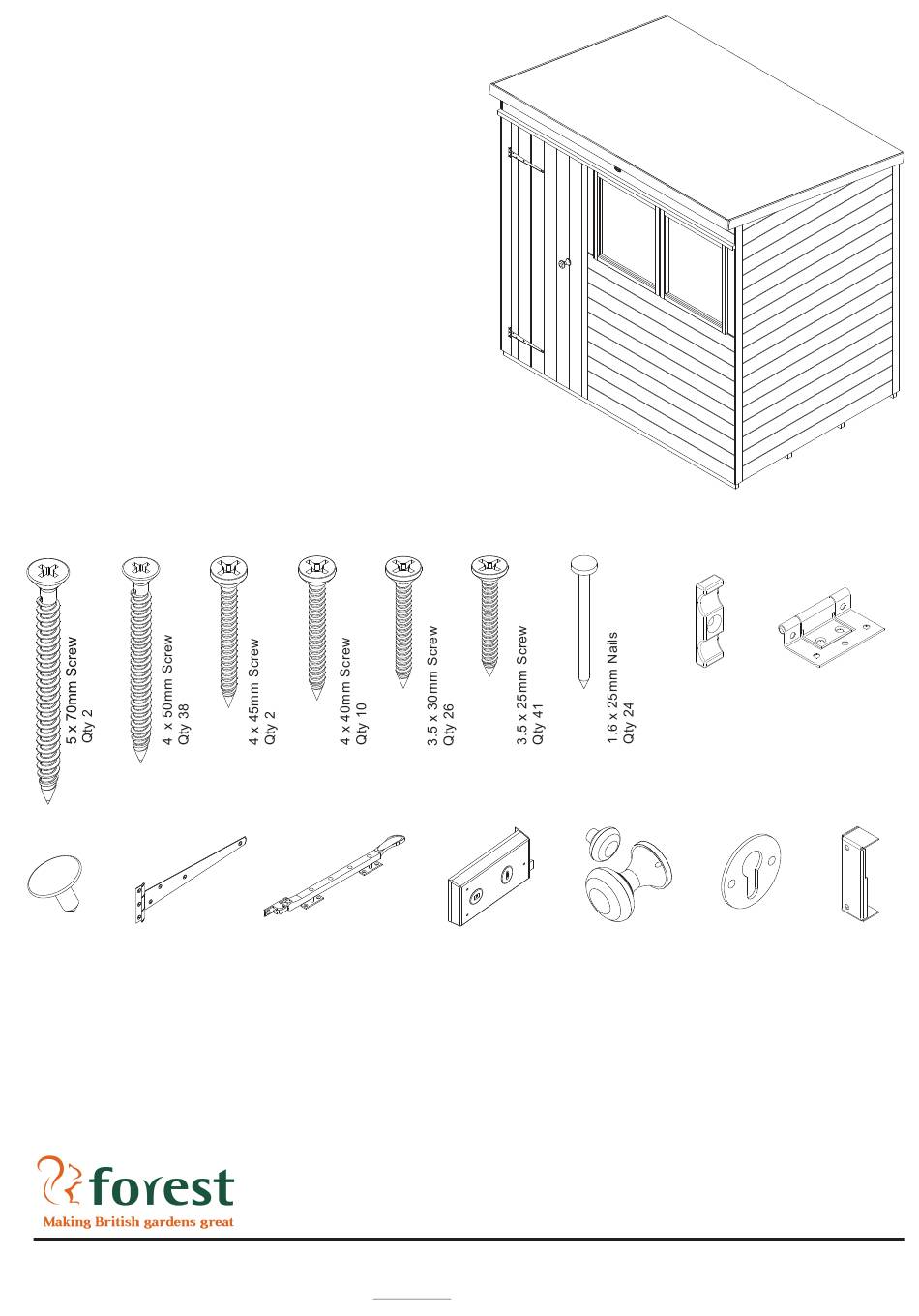

7x5 PENT SHED
7'x5' TPP75
Issue 0121
Fixing Pack: TPP75FP
'T' Hinge
Felt Tacks
Qty 2
Qty 96
Forest Garden Ltd | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | D 10 4JB Y
Rimlock with
Casement Stay
50mm screws
Qty 1
Qty 1
Technical Helpline:
0333 7777 089
Door Handle Set
with Spindle
Qty 1
8.30 am and 5.00 pm Monday to Friday.
Cranked Hinge
Turn Buttons
Qty 2
Qty 2
Escutcheon
Lock Receiver
Qty 1
Qty 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Forest TPP75FP
Summary of Contents for Forest TPP75FP
- Page 1 Qty 96 Qty 1 Qty 1 Forest Garden Ltd | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | D 10 4JB Y Technical Helpline: 0333 7777 089 8.30 am and 5.00 pm Monday to Friday.
-
Page 2: Before You Start
BEFORE YOU START We recommend that, before you begin your shed assembly, you check all the components use the xing pack contents list on the front page and the shed components list on the fourth page. BASE PREPARATION It is vital that you build your new shed on a solid, level base. Timber or plastic bases are ideal, as are concrete slabs or solid concrete. - Page 3 CARE & ATTENTION To help you get the most out of our products, it is useful to know a little more about the properties of timber , what is normal and how your shed may behave as the seasons change. Wood is an extremely durable material for construction but, as a natural product, when used outdoors it is susceptible to changes in the environment.
- Page 4 PRESSURE TREATED TPP75 SHED PARTS LIST (The parts do not have codes on them. They are listed below should you need to order one.) Back Panel Right Side Panel Left Side Panel Floor Door Roof Panel Front Panel Size: 2038x1945 Size: 2038x1717 Size: 1944x1318mm...
- Page 5 Step 3 - Attaching Front Panel Step 4 - Attaching Cover Strips Screws Front Panel Size: 2038x1945 Back Cover Strip Size: 57x12x1717mm 50mm Connect Screws Walls Back Cover Strip Front Cover Strip Size: 57x12x1717mm Size: 57x12x1945mm Screws Front Cover Strip Size: 57x12x1945mm Screws 50mm...
-
Page 6: Step 7 - Window Assembly
Step 7 - Window Assembly Step 8 - Attaching Windows Window Frame Note: There is 1 fixed window & 1 opening window. Size: 695x574mm Screws Window Screws Size: 623x502mm Glazing Strip (Small) Size: 15x12x508mm Glazing Strip (Large) Fixed Window: Size: 15x12x629mm 2 x 50mm screws on the top 2 x 50mm screws underneath 4 x 50mm screws on the sides...
