Forest Tongue & Groove Pent Shed Manual

Tongue and Groove
7' x 5' Pent Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE;
READ CAREFULLY
Check all parts prior to assembly
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not require additional
treatment.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
0333 7777 089
Technical Help line: 8.30 am and 5.00
pm Monday to Friday.
In line with your statutory rights, please check all parts prior
to assembly, as assembly of damaged parts may be deemed
to be acceptance and this may affect the remedies you are
entitled to. If the product is not constructed in accordance
with the instructions, or is altered in anyway (e.g. painted),
the manufacturer cannot be held liable for any resulting
damage.
Fixing Pack (MTGPSH75V2FP)
Not to Scale
Rimlock with Door Handle
'T' Hinge Casement
Striking Plate Set with Pin
Qty 2 Stay
Qty 1 Qty 1
Qty 2
Cranked Hinge
Qty 2
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE SHARP KNIFE
SPIRIT LEVEL
FOR ROOFING FELT FOR ROOFING FELT
HAMMER
POZI DRIVE SCREWDRIVER TAPE MEASURE
HAMMER
Important : Assembly of
this shed requires a
Must Pre drill for
minimum of two adults.
each screw used.

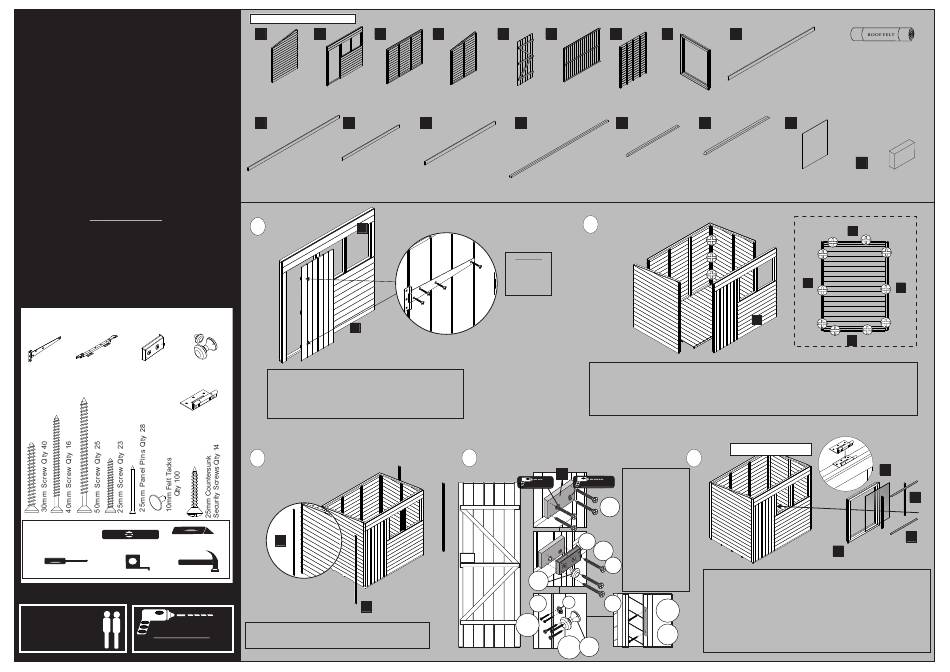

MTGPSH75V2 PARTS LIST
A B C
MTGPSH75LHS MTGPSH75FR MTGPSH75BK
LEFT SIDE PANEL FRONT PANEL BACK SIDE
J K L
57121945PPT 70121650PPT
CORNER STRIP 1945mm BARGE BOARD 1650mm
QTY 2 QTY 2
1 1
B
E
Place and secure two hinges to the door so that they line up with
the battens on the reverse, using 25mm Security Screws for each.
Place the door into the door end ensuring that the door is square.
Fix the doors in place using 3x25mm Security Screws for the
smaller section of each hinge.
3
I
J
Place the corner strips so that they are flush and cover
the joins between the panels. Fix each in place using
3x30mm screws.
D E F
MTGPSH75RHS MTGSH64DR MTGPSH75RF
RIGHT SIDE PANEL ROOF QTY 1
DOOR
M
70122086PPT 28282062PPT
BARGE BOARD 2086mm DRIP STRIP 2062mm
QTY 1
2
Attention:
Take care when
placing the
screws. These
can not be
backed out.
Place the panels on top of the floor. Make sure that all the panels are tight and flush before fixing
them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square before fixing to the floor
using 2x50mm screws for each side panel and 3x50mm screws for the front and back panels. Take
care position the screws so the locate into the floor bearers underneath.
4
Q
DRILL 25x10mm HOLE
DRILL 20mm HOLE DRILL 20mm HOLE
40mm
Screws
RIM-
LOCK
3x
50mm
Screws
HANDLE
escut-
FRONT INSIDE
cheon
2x
25mm
Screws
3x
25mm HANDLE
Screws
G H I
57121717PPT
CORNER STRIP 1717mm
MTGPSH75FL MTGWIN
QTY 2
FLOOR WINDOW QTY2
N N N O
15120508PAII45PT 15120629PAII45PT
504mm BEADING 629mm BEADING
QTY 4
QTY 4
B
Opening Window
5
Secure block to back of
Door using 50mm screws.
Use Rim lock to line up
and drill 2 holes thought
block and door.
4x
Fix rim lock to the block
using screws supplied.
Place door handle though
20mmm hole and secure
using 25mm screws.
Cover 2nd hole with
escutcheon and fix into
Supplied
With
place.
Rim-lock
Place the acrylic sheet inside the window frame and position the
Inside attach a striking
beading so that each section fits flush and keeps the sheet tight. Fix
plate
each piece using 3 x Panel Pins.
2x
For the opening window fix two cranked hinges to the top of the
25mm
Screws
window so that it sits in the rebate. Fix the smaller section of the hinge
to the window using 2 x 25mm screws for each. Open up the hinges
Striking and fix the remaining section of each hinge to the top of the window
Plate
panel using another 3 x 25mm screws for each hinge.
FELT81RED
FELT QTY 1 ROLL
N P
Q
XT623502
80380140PPT
ACRYLIC SHEET
DOOR BLOCK
QTY 2
QTY 1
Top View
A
C
B
D
P
O
N
H
Issue 0219
