ISSUE: 0123
SHED
INSTRUCTIONS

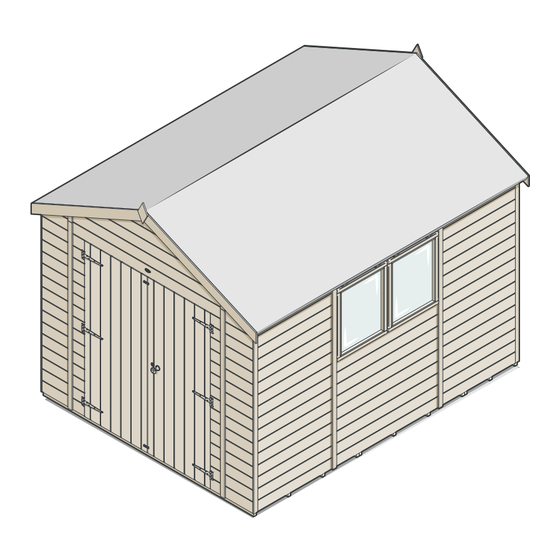

WORKSHOPS DOUBLE DOOR
(8x10, 8x12)
Thank you for purchasing your T&G Timberdale shed from Forest Garden.
No matter what size garden, a shed is the most practical of garden structures.
Visit our website for spare instructions and
Missing something or need more information?
more information
Call our aftersales team on
0333 321 3142
www.forestgarden.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Timberdale WORKSHOPS DOUBLE DOOR 8x10 and is the answer not in the manual?

Questions and answers

Related Manuals for Forest Timberdale WORKSHOPS DOUBLE DOOR 8x10

Summary of Contents for Forest Timberdale WORKSHOPS DOUBLE DOOR 8x10

  • Page 1 INSTRUCTIONS WORKSHOPS DOUBLE DOOR (8x10, 8x12) Thank you for purchasing your T&G Timberdale shed from Forest Garden. No matter what size garden, a shed is the most practical of garden structures. Visit our website for spare instructions and Missing something or need more information?

  • Page 2: Before You Start

    Before You Start.. Please read through these instructions to familiarise yourself with your shed. We recommend that you check all the components and fixings. Your fixings can be found on page 5 and your parts list can be found packed separately within your shed. All our sheds are constructed in the same way, they simply come with different components depending on the type of shed you have.
  • Page 3 Care & Attention To help you get the most out of our products it is useful to know a little more about the properties of timber, what is normal and how your shed may behave as the seasons change. Wood is an extremely durable material for construction but as a natural product when used outdoors it is susceptible to changes in the environment.

  • Page 4: Treatment Information

    Health & Satefy We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure you are protected from any potential health and safety risks. Do not exempt yourself from wearing PPE. Cut-Resistant Protective Glasses Protective Boots Protective Mask Working At Handle Glass...
  • Page 5 General Assembly Instructions This set of assembly instructions is for our apex and reverse apex workshop range with double doors. Visuals in each of the steps are for reference only and may slightly vary depending on the workshop you have chosen. Any major differences will be outlined in the below steps.
  • Page 6 Step 1: Position Floors POSITIONING YOUR SHED Before assembly, your Floor must be firm and level to ensure the shed lines up and is assembled properly. We recommend that there should be access to all sides of your shed for assembly and any maintenance. MULTIPLE FLOORS Position the Floors in your desired location.

  • Page 7: Step 2: Side Panel Assembly

    Step 2: Side Panel Assembly (USE YOUR PANEL CONFIGURATION SHEET FOR THIS STEP) LAY OUT PANELS WORK FROM BACK TO FRONT Lay out the panels around your shed Floor using your panel We recommend starting in a back corner and then work configuration sheet.
  • Page 8 SCREWS 8x10 Sheds SCREWS 8x12 Sheds SCREWS SECURE TO FLOOR BEARERS BENEATH Secure the Side Panels to the Floor by screwing into the floor bearers beneath. The above visuals show both 8x10 and 8x12 workshops when securing the panels to the bearers beneath. - 8 -...
  • Page 9 Step 3: Apex Sections Apex Sheds SCREWS SCREWS Reverse Apex Sheds SCREWS SCREWS APEX SECTIONS Position and secure the Apex Sections to the Side Panels as shown above. - 9 -...
  • Page 10 Step 4: Door Strips SCREWS SCREWS DOOR STRIPS Position and secure the Door Strips to the opening of the Door Panel framework as shown above. Door strip size (33x12x1631mm) SCREWS SLAMMING STRIP Position and secure the Slamming Strip onto the ‘closed’ door. This will be the Door without the lock on. Ensure you screw through the slamming strip into the Door framework as shown above.
  • Page 11 Step 5: Cover Strips SCREWS SCREWS SCREWS SCREWS CENTRAL APEX COVER STRIP APEX SHEDS ONLY COVER STRIPS Secure the Cover Strips to the corners and adjoining panels. Ensure they are flush to the bottom edge of the panels. Attach the Apex Cover Strips to the Apex Sections.

  • Page 12: Step 6: Roof Assembly

    Step 6: Roof Assembly Apex Sheds SCREWS SCREWS SCREWS Reverse Apex Sheds 8x10 REVERSE APEX SHED ONLY (SMALLER TRUSS BLOCK) SCREWS SCREWS TRUSS BLOCKS TRUSS Position and secure the Truss Blocks to the centre of each side of your workshop Position and secure the Truss centrally (between the Apex Sections).
  • Page 13 SCREWS SCREWS POSITIONING YOUR ROOF PANELS SECURE ROOF PANELS Position 2 x Roof Panels onto your Truss centrally and hook Work from the back to the front (apex sheds) or side to the other end into the Apex Section as shown above. Your side (reverse apex sheds) with 2 x Roof Panels.
  • Page 14 SCREWS APEX BLOCKS Use the Apex Blocks to pin the felt in place when tacking. Position and secure the Apex Blocks to the Apex Sections framework using the measurements as a guide. Repeat this process for both Apex Sections. Step 8: Fascia’s & Finials SCREWS SCREWS FASCIA’S &...
  • Page 15 Step 9: Window Fixings We have supplied extra window fixing packs for the workshops with more than 2 x Windows. Each fixing pack is for 1 x Window. In the event that you are missing any fixings for your window assembly, please use the fixing pack code below. WINDOW FIXING PACK CODE: TPASWINFP 3.5 x 20mm Screws Cranked Hinges...
  • Page 16 SCREWS WINDOW ASSEMBLY CASEMENT STAY Secure the Window to the Window Panel framework. Secure the Casement Stay & Pins to the Window and Ensure the pin on the hinges hook onto the T&G board on interior sill. Secure the Casement Stay with its supplied the front of the Window Panel and that the Window can open screws and use it to position the pins underneath.
  • Page 17 SECURE TO FRAMEWORK BEHIND SCREWS HINGE POSITION SCREWS NOTCH IN LINE WITH DOOR EDGE DOOR HINGES LOCK BLOCK Position and secure the hinges to the framework behind on Position and secure the Lock Block flush to the corner of the the Door.
  • Page 18 SCREWS SCREWS SCREWS DOOR INSTALLATION TURN BUTTONS Position the Door into the opening, ensuring it’s level. Position and secure a Turn Button to the top and bottom of Make sure the hinges are up against the T&G boards with a the Door, into the Slamming Strip behind as shown above.
  • Page 19 Forest Garden Ltd, Unit 288 Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB t: 0333 321 3142 w: forestgarden.co.uk e: info@forestgarden.co.uk EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland...
