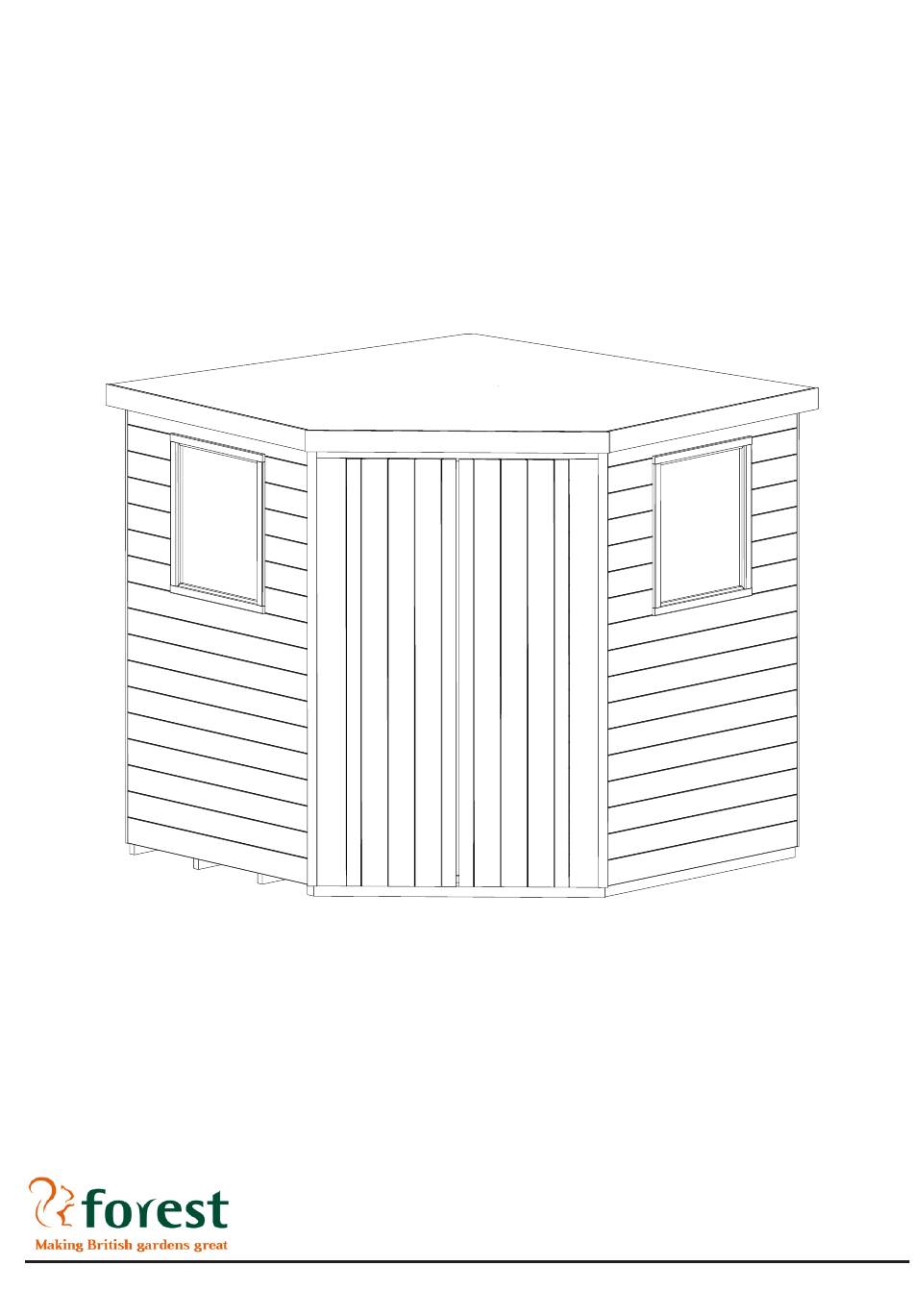

- Page 1 CORNER SHED 7"x7" TPCS77 Issue 0118 Forest Garden Ltd | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | Dy10 4JB...
- Page 2 Important : Assembly INFORMATION of this shed requires a minimum of two adults. This building is pressure treated to ensure longevity of all timber components and to protect against rot. This may leave a colour difference on some parts that will even out as the moisture content stabilises.
- Page 3 Step 3 50mm Screws Panel 4 (Left Back) Size: 1900x1929mm SCREW MUST GO Connect Walls TROUGH FLOOR PANEL AND INTO THE BATTENS OF FLOOR PANEL MUST PRE DRILL 50mm Screws 50mm Screws Into Floor Into Floor OVER- LAPPING DETAIL A Step 4 INSIDE VIEW MUST PRE DRILL...
- Page 4 Step 7 Batten 3 (Front Cover) 30mm Size: 40x12x1915mm 30mm Screws Screws 30mm Screws 30mm 30mm 30mm Screws Screws Screws Batten 3 (Front Cover) Size: 40x12x1915mm Batten 3 (Back Cover) Batten 3 (Back Cover) Size: 40x12x1915mm Size: 40x12x1915mm Batten 5 (Far Back Cover) Batten 5B (Far Back Cover) Size: 28x12x1839mm Size: 40x12x1839mm...
- Page 5 Step 11 Step 12 Through HALF Roof Panel Into 30mm BATTEN Overhang Screws 30mm 30mm Screws Screws 30mm Screws INTO ROOF DETAIL F DETAIL G BATTEN 30mm 30mm Screws Screws 30mm INTO INTO OVER- Screws ROOF HANG BATTEN 30mm 30mm Screws Screws Step 13...
- Page 6 Step 16 Step 17 Window Frame (Window) Size: 574x695mm 20mm 20mm 20mm 20mm Window Glaze (Window) Screws Screws Screws Screws Size: 487x623mm Batten 15 (Window Sill) Size: 45x28x556mm Batten 16 (Window 2) Size: 15x12x508mm 50mm Screws Batten 14 (Window 1) Size: 15x12x629mm 20mm 20mm...
