ISSUE: 0124
25 year guarantee
SHED INSTRUCTIONS
BASE KIT 2

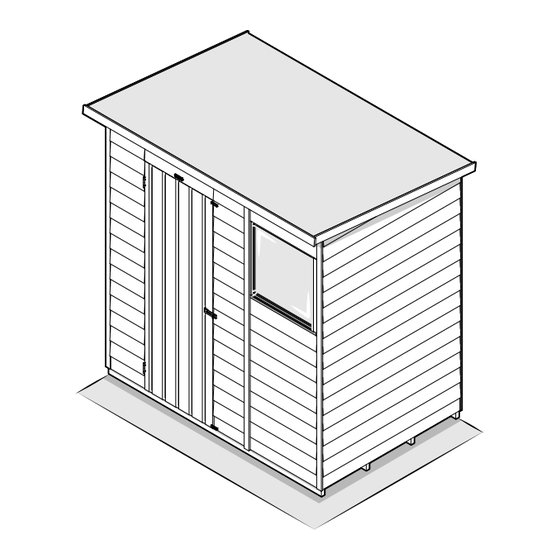

Pent sheds with a single door & pent roof beams for roof structure
Please note these instructions are generic as the construction for both shiplap and overlap sheds are the same.
Any differences will be outlined in the steps.
Missing something or need more information?
Visit our website for spare instructions and
Call our aftersales team on
more information
0333 321 3142
www.forestgarden.co.uk
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland
Advertisement
Table of Contents
Related Manuals for Forest 4LIFE SHED BASE KIT 2
Summary of Contents for Forest 4LIFE SHED BASE KIT 2
- Page 1 Visit our website for spare instructions and Call our aftersales team on more information 0333 321 3142 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland...
-
Page 2: Tools Required
BEFORE YOU START.. Please read through this guide to prepare yourself before assembling your shed. We recommend that you check all the components and fixings. Your parts list can be found on your shed label. All our sheds are constructed in the same way, they simply come with different components depending on the type of shed you have. - Page 3 CARE & ATTENTION To help you get the most out of our products it is useful to know a little more about the properties of timber, what is normal and how your shed may behave as the seasons change. Wood is an extremely durable material for construction but as a natural product when used outdoors it is susceptible to changes in the environment.
-
Page 4: Treatment Information
HEALTH & SAFETY We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure you are protected from any potential health and safety risks. Do not exempt yourself from wearing PPE. Cut-Resistant Protective Glasses Protective Boots Protective Mask Working At Gloves... - Page 5 IDENTIFY YOUR CHOSEN SHED From the floor plans below, identify your shed based on the width, depth and roof type provided. You will need this to identify the side panel positions before assembling your shed. Use the key as a guide. 1ft Panel (295 x 1831mm) 4ft Panel (1180 x 1831mm) (With &...
- Page 6 FLOOR ASSEMBLY THERE ARE NO FIXINGS FOR THIS SECTION. Look through the different visuals and follow the step that suits your chosen shed. FLOOR BEARERS Before assembly, your Floor must be firm and level to ensure the shed lines up and is assembled properly. We recommend that there should be access to all sides of your shed for assembly and any maintenance.
-
Page 7: Window Assembly
WINDOW ASSEMBLY (PLEASE SKIP THIS SECTION IF YOUR SHED HAS NO WINDOWS) FIXING PACK CONTAINS: FIXING PACK CODE: 4LIFEWINFP You may receive more than one of the same fixing pack to provide enough fixings for the sheds with more windows. 1.6 x 30mm Nails 3.5 x 30mm Screws 3.5 x 25mm Screws... - Page 8 STEP 2: WINDOW POSTIONING BOTTOM OF WINDOW OUTSIDE INSIDE WINDOW SITS ONTO INTERIOR SILL WINDOW(S) Position your Window(s) into the window opening as shown above. Ensure the bottom and top are resting on the Window Sills. STEP 3: SECURE WINDOW(S) SCREWS SCREWS WINDOW(S)
- Page 9 STEP 4: SECURING THE TOP BOARD NAILS NAILS FLUSH TO THE TOP OF PANEL FRAME TOP BOARD POSITION SECURE TOP BOARD Position the Top Board to the top of the Window Panel framework, ensuring it is flush as shown above. Secure the Top Board to the window panel framework behind with the nails provided.
-
Page 10: Side Panel Assembly
SIDE PANEL ASSEMBLY FIXING PACK CONTAINS: FIXING PACK CODE: SHEDPANELSFP You may receive more than one of the same fixing pack to provide enough screws for the larger shed sizes. 5 x 60mm Screws 4 x 50mm Screws 4 x 40mm Screws QTY: 3 QTY: 52 QTY: 2... - Page 11 STEP 2: SECURE SIDE PANELS TO FLOOR(S) SCREWS SCREWS SECURE 3FT - 4FT PANELS TO BEARER SECURE 1FT - 2FT PANELS TO BEARER SCREWS SCREWS SECURE PANELS TO BEARERS BENEATH ANGLE INTO BEARERS BENEATH SCREWS SCREWS SCREWS SECURE TO BEARERS OR FLOORBOARD SECURE PANELS TO BEARERS BENEATH BENEATH SECURE TO FLOOR BEARERS/FLOORBOARD BENEATH...
- Page 12 STEP 3: SECURE DOOR PANEL TO FLOOR SCREWS SCREWS SECURE DOOR PANEL TO BEARERS & FLOORBOARD BENEATH SCREWS SECURE DOOR PANEL TO BEARER BENEATH SECURE TO FLOOR BEARERS/FLOORBOARD BENEATH Secure the Door Panel to the Floor by screwing into the floor bearers beneath (50mm screws). Secure the Door Panel to the floorboards if there are no bearers beneath (40mm screws).
- Page 13 SCREWS 3FT & 4FT INFILL PANEL SCREWS SECURE INFILL PANELS TOGETHER SECURE INFILL PANELS TO SIDE PANELS Position and secure the Infill Panels to the top of the Side Panels, which will be the same size. Secure the Infill Panels together once they are secured to the Side Panels. STEP 5: SINGLE DOOR INFILL PANELS SCREWS SCREWS...
- Page 14 PENT SECTION ASSEMBLY FIXING PACK CONTAINS: FIXING PACK CODE: SHEDGABLEFP 4 x 50mm Screws QTY: 8 STEP 1: PENT SECTION ASSEMBLY PENT SHEDS SCREWS LARGER PENT SHEDS SCREWS PENT SECTIONS Position and secure the Pent Sections to the Side and Infill Panels.
- Page 15 COVER & DOOR STRIPS FIXING PACK CONTAINS: FIXING PACK CODE: SHEDSTRIPSFP You may receive more than one of the same fixing pack to provide enough screws for the larger shed sizes. 3.5 x 30mm Screws 4 x 50mm Screws QTY: 33 QTY: 4 STEP 1: DOOR BATTENS SCREWS...
- Page 16 STEP 3: COVER STRIPS FRONT ADJOINING PANELS FRONT CORNERS SIDE/BACK ADJOINING PANELS BACK CORNERS SCREWS SCREWS SCREWS SCREWS COVER STRIPS Secure the Cover Strips to the corners and adjoining panels. Ensure they are flush to the bottom edge of the panels. Make sure they secure to the framework behind and not into the joins.
- Page 17 PENT ROOF BEAM(S) ASSEMBLY FIXING PACK CONTAINS: FIXING PACK CODE: SHEDPENTBEAMSFP 3.5 x 25mm Screws QTY: 8 Z-Brackets (45mm) QTY: 4 STEP 1: Z-BRACKETS PREPARATION SCREWS 45mm Z-BRACKETS Position and secure the Z-brackets to both ends on your Roof Beam(s) as shown above. The Roof Beam should be flush to the Z-bracket.
- Page 18 SINGLE ROOF BEAM SCREWS TWO ROOF BEAMS SCREWS ROOF BEAM(S) Position and secure the Z-brackets to the Side Panels and Infill Panels framework. For the sheds with the single Roof Beam, position your Roof Beam in the centre of your shed as shown above. For the sheds with two Roof Beams, space your Roof Beams out evenly in your shed as shown above.
- Page 19 OSB ROOF SHEET & FELT FIXING PACK CONTAINS: FIXING PACK CODE: OSBSHEDROOFFP 3.5 x 30mm Screws Felt Tacks QTY: 60 QTY: 145 STEP 1: OSB ROOF SHEETS & ROOF STRIPS 6x4 PENT SHED SCREWS SCREWS FRONT & BACK ROOF STRIPS SIDE ROOF STRIPS 7x5 PENT SHED SCREWS...
- Page 20 STEP 2: SECURE ROOF SHEETS SINGLE ROOF BEAM SCREWS TWO ROOF BEAMS SCREWS ROOF SHEETS Position and secure the OSB Roof Sheets to the Pent Sections framework, Side Panels framework and the Roof Beams. Ensure each OSB Roof Sheet sits half way onto each Roof Beam. The overhang at the back should be approximately 45-50mm. STEP 3: FELT SINGLE ROOF BEAM 2 x FELT PIECES...
- Page 21 FASCIA’S & FINIALS FIXING PACK CONTAINS: FIXING PACK CODE: 4LIFEFASCIASFP 4 x 40mm Screws 3.5 x 25mm Screws 1.6 x 25mm Pin 4LIFE Shed Badge QTY: 16 QTY: 4 QTY: 2 QTY: 1 STEP 1: FASCIA ASSEMBLY SCREWS SCREWS SINGLE SIDE FASCIA DOUBLE SIDE FASCIA SCREWS SCREWS...
- Page 22 SCREWS PENT FASCIA’S Position and secure the Fascia’s into the front and back Pent Sections framework and Roof Strips behind as shown above. STEP 2: BADGE PINS PIN YOUR BADGE Position and secure your badge above the door, into the framework behind with the pins provided.
- Page 23 SINGLE DOOR INSTALLATION FIXING PACK CONTAINS: FIXING PACK CODE: 4LIFESINGLEDOORFP 3.5 x 25mm Screws QTY: 21 Turn Buttons Flush Hinges Hasp & Staple (150mm) QTY: 2 QTY: 2 QTY: 1 STEP 1: DOOR HINGES & INSTALLATION HINGE POSITION OVERLAP CLOSED DOOR NOTCH IN LINE WITH DOOR FACE...
- Page 24 STEP 2: DOOR FIXINGS FRAMEWORK SCREWS HASP & STAPLE Fix the Hasp and Staple as shown. Ensure the screws go into the framework behind. SCREWS SCREWS TURN BUTTONS Position and secure a turn button to the top and bottom of the Door, through the Panels framework as shown above.
