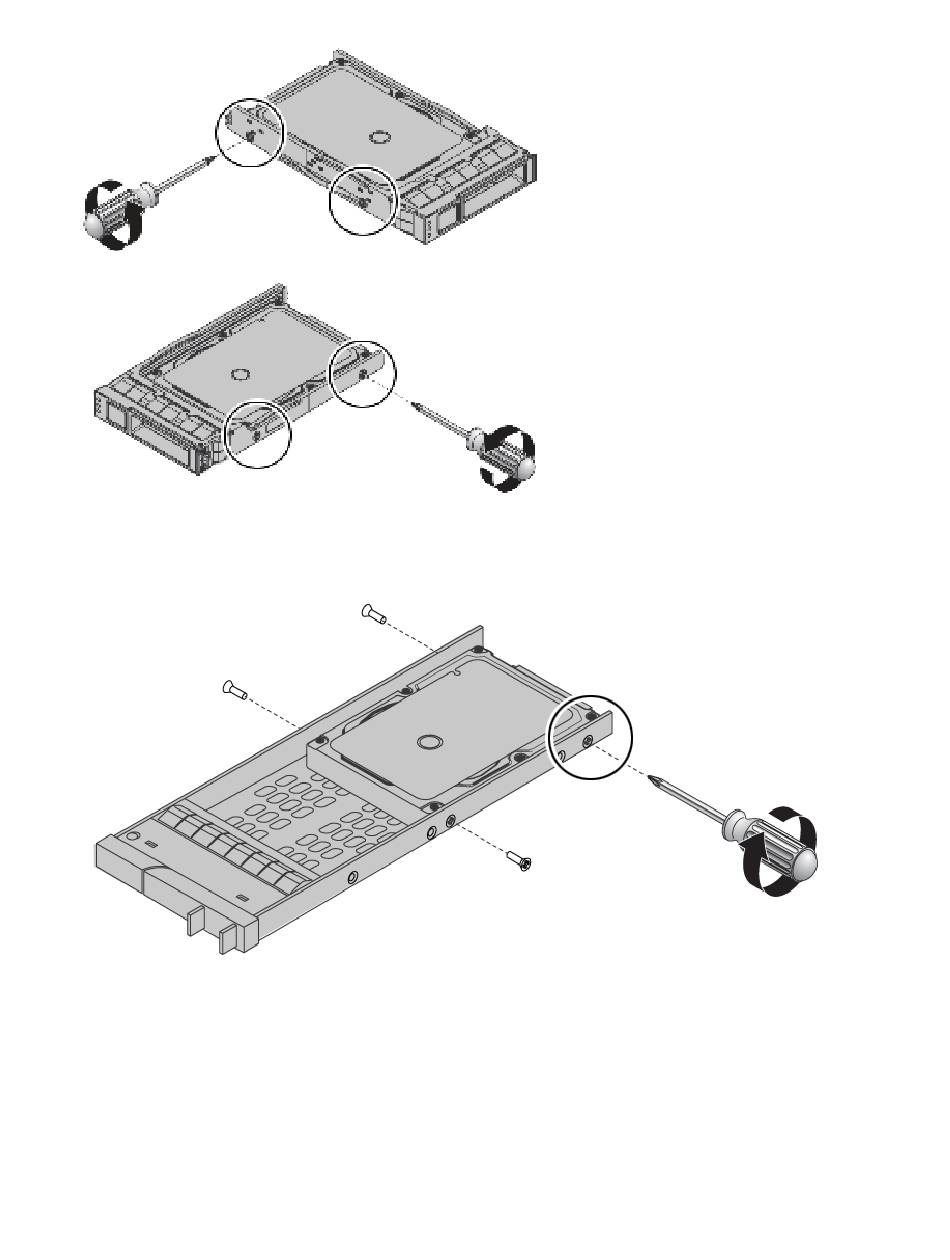

2. Install the new SSD into the drive carrier that is compatible with the DE2-24P Drive Enclosure. Use the extra drive
carrier and the screws provided in this kit.
NOTE: Do not reuse the existing screws.
3. Place the new overlay label over the top of the base part number and bar code label. This allows the correct part
number of the new drive and carrier assembly to be visible.
The SSD is now ready to be installed into a DE2-24P Drive Enclosure.
4. Install the failed drive into the original (shorter) drive carrier provided in the kit and return all of the parts to Oracle.
