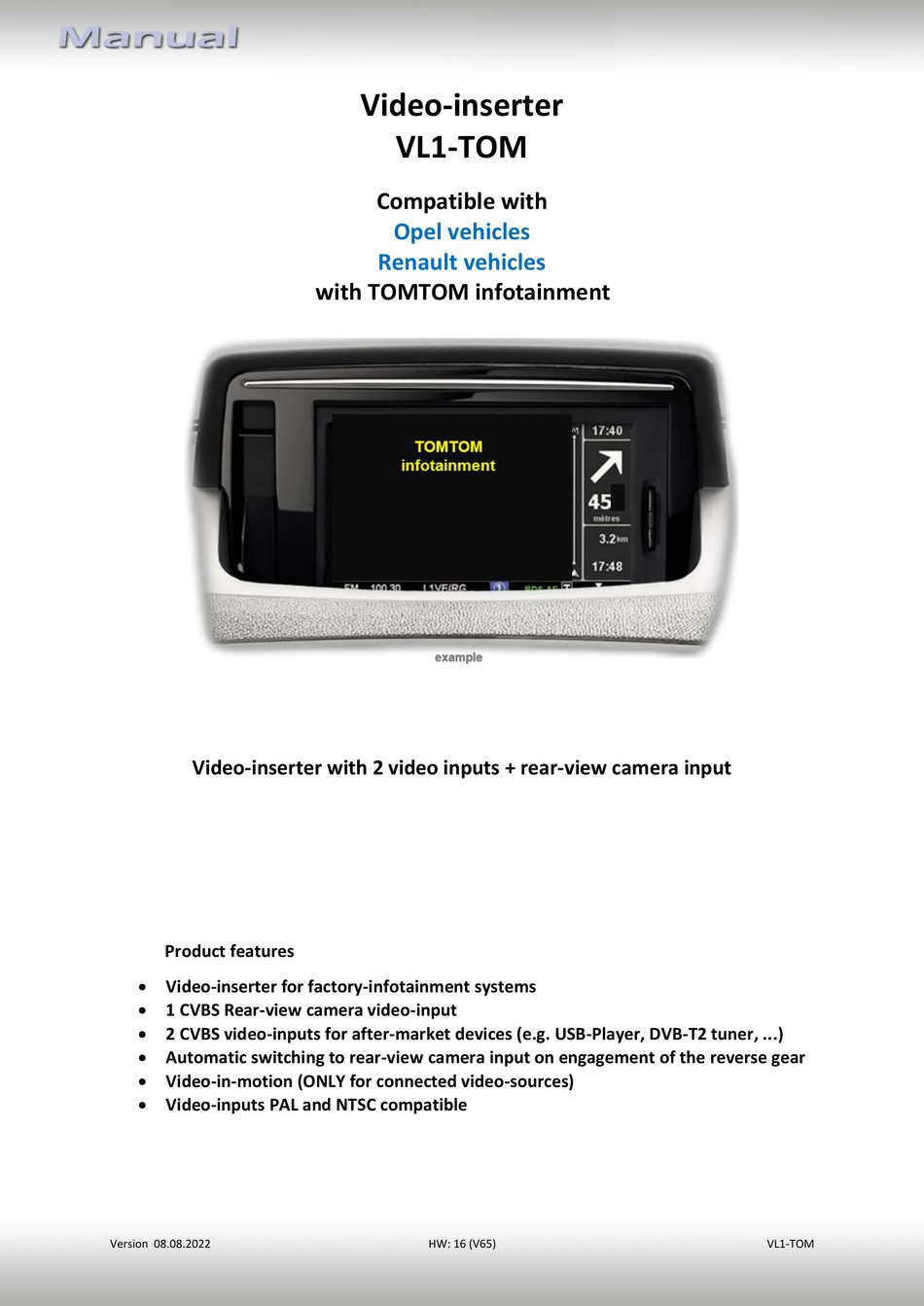

Video-inserter
VL1-TOM
Compatible with
Opel vehicles
Renault vehicles
with TOMTOM infotainment
Video-inserter with 2 video inputs + rear-view camera input
Product features
Video-inserter for factory-infotainment systems
1 CVBS Rear-view camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Version 08.08.2022
HW: 16 (V65)
VL1-TOM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz VL1-TOM
Summary of Contents for NavLinkz VL1-TOM
- Page 1 Video-inserter VL1-TOM Compatible with Opel vehicles Renault vehicles with TOMTOM infotainment Video-inserter with 2 video inputs + rear-view camera input Product features Video-inserter for factory-infotainment systems 1 CVBS Rear-view camera video-input 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...) ...
-
Page 2: Table Of Contents
Connection – external keypad 2.9. Picture settings 3. Video interface operation 3.1. By external keypad 3.2. By white wire of the 6pin cable 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
1.3. Connectors – Video interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 5: Dip-Switch Settings - Interface
If set to ON, the interface switches to its rear-view camera input while the reverse gear is engaged. Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF. Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 6: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface box is prepared to be connected behind the vehicle`s monitor. The monitor has to be removed for the installation Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 7: Connection Schema
2.2. Connection schema Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 8: Connection - 6Pin Interface Cable
(Reverse signal) will be described in chapter “After-market rear-view camera”. The white wire, can be used by +12V impulse to switch the enabled video sources , same as the keypad (see chapter “video interface- operation”). Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 9: Installation - Daughter Pcb
2.4. Installation – daughter PCB Version 08.08.2022 HW: 16 (V65) VL1-TOM... - Page 10 Version 08.08.2022 HW: 16 (V65) VL1-TOM...
- Page 11 Version 08.08.2022 HW: 16 (V65) VL1-TOM...
-
Page 12: Connection - Video Sources
Connect the rear-view camera’s male RCA to the video interface’s female RCA „Camera IN”. Connect the male RCAs of possibly existing video sources 1 and 2 to the video interface’s female RCAs „Video IN1“ and „Video IN2“. Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 13: Audio-Switch And Audio-Insertion
AUX input). When switching the video interface from AV1 to AV2, the audio signal is also switched automatically. Attention: The audio cable CAB-FV-AUDIO shown in the diagram is not included in the delivery contents and is optionally available! Version 08.08.2022 HW: 16 (V65) VL1-TOM... - Page 14 Audio input signal R/L of source AV1 Audio output signal R/L for factory audio AUX or FM-modulator Ground Attention: The audio cable CAB-FV-AUDIO shown in the diagram is not included in the delivery contents and is optionally available! Version 08.08.2022 HW: 16 (V65) VL1-TOM...
-
Page 15: After-Market Rear-View Camera
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green switching input cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 16: Connection - External Keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 17: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Sharpness AV1/2 no function RGB in no function V POS vertical picture position H POS horizontal picture position Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 18: Video Interface Operation
Video input 0.7V - 1V Video input formats NTSC/PAL RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 158 x 25 x 109 mm (B x H x T) Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 19: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 08.08.2022 HW: 16 (V65) VL1-TOM... -
Page 20: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
