Video-inserter
VL1-MBN2

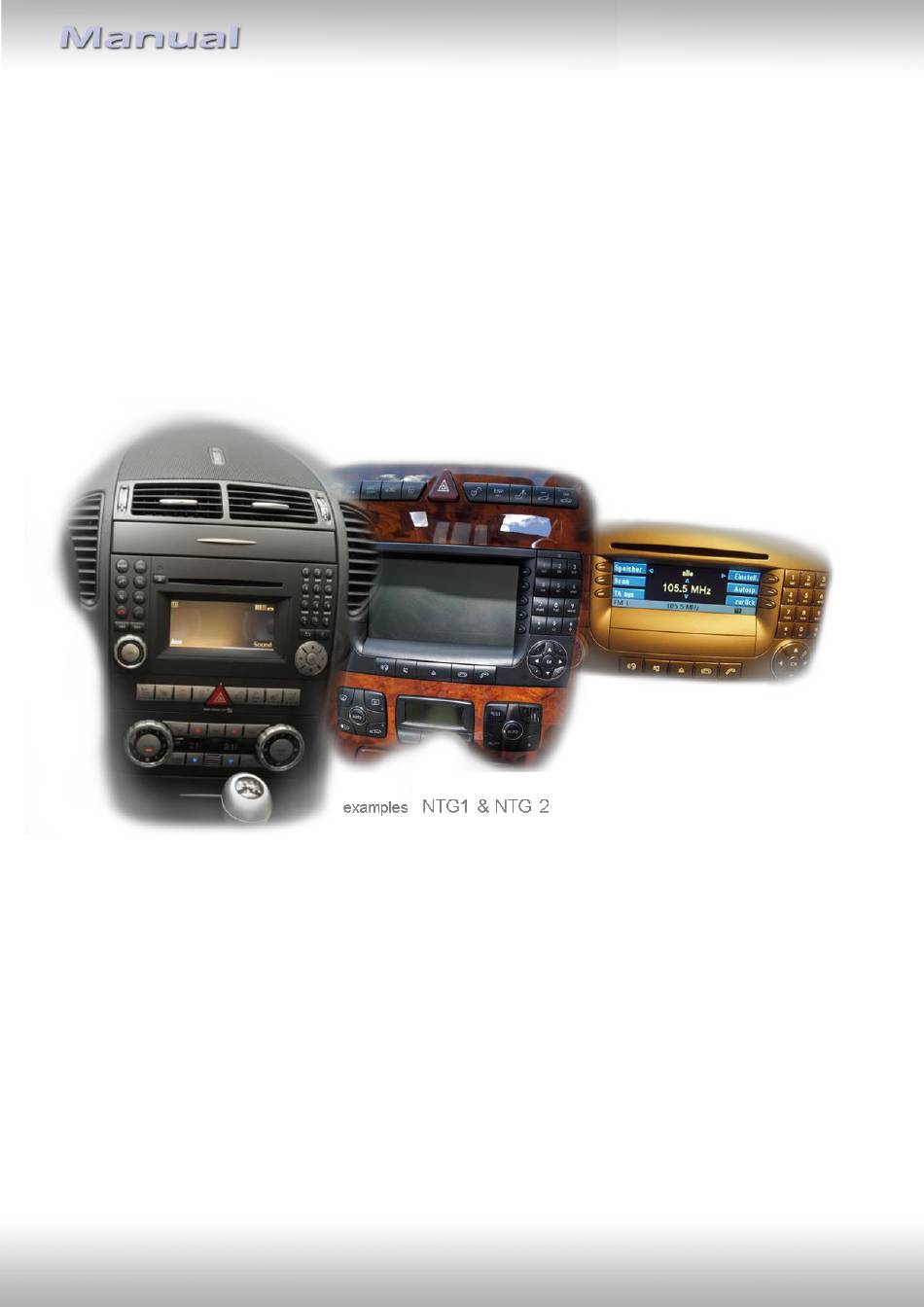

Compatible with Mercedes Benz vehicles
with Comand APS NTG1 and NTG2 infotainment
Video-inserter with 2 video inputs + rear-view camera input
Product features
• Video-inserter for factory-infotainment systems
• 2 CVBS video-inputs for after-market devices (e.g. USB-player, DVB-T2 tuner)
• Built-in audio-switch (no audio-insertion)
• Rear-view camera CVBS video-input
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible (in exceptional cases PAL - see restrictions
Version 22.11.2024
HW: FV09(V41) + FV09 V41.A / V3.4.A
VL1-MBN2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz VL1-MBN2
Summary of Contents for NavLinkz VL1-MBN2
- Page 1 Video-inserter VL1-MBN2 Compatible with Mercedes Benz vehicles with Comand APS NTG1 and NTG2 infotainment Video-inserter with 2 video inputs + rear-view camera input Product features • Video-inserter for factory-infotainment systems • 2 CVBS video-inputs for after-market devices (e.g. USB-player, DVB-T2 tuner) •...
-
Page 2: Table Of Contents
Picture settings and guide lines 3. Video interface operation 3.1. By external keypad 3.2. By white wire of the 6pin cable 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 3: Legal Information
1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Video quality of inserted picture is often limited. It is also possible that inserted picture has a color touch (e.g., greenish). This cannot be changed, nor predicted prior to installation. We therefore recommend the use only for camera systems. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 5: Boxes And Connectors
The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. 1.3.2. Daughter PCB Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 6: Dip-Switch Settings - Interface
1.3.3.3. Monitor specific settings (dip6 to dip8) Set all 3 dip switches to OFF. Dips 1 and 4 are out of function and have to be set to OFF. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 7: Installation
The Interface Box shell be installed behind the head unit and the daughter PCB will be installed between the monitor panel and the mainboard of the Head Unit. For this the Head Unit has to be removed and dismantled. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 8: Connection Schema
2.2. Connection schema Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 9: Connection - 6Pin Interface Cable
Note: The connection of the green wire (Reverse signal) will be described in chapter “After- market rear-view camera”. The white wire, can be used to switch the enabled video sources same as the keypad (see chapter “video interface-operation”). The grey wire stays unconnected. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 10: Connection - Daughter Pcb And Ribbon Cables
Depending on the system, either 2 pin-twisted or 1 pin-twisted and 1 pin- straight ribbon cable have to be installed. NTG1: Use 1 x pin-twisted and 1 x pin-straight ribbon cables. NTG2: Use 2 x pin twisted ribbon cables. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 11: Ribbon Cable
Electrical the contacts have to be transmitted similar, in other words the left contact of the monitor panel have to be connected with the left contact of the mainboard. Please take note of the contact surfaces of the flex cables during installation. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 12: Ribbon Cable
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. 3) Avoid cable contusion or cable injury caused by sharp-edged metal. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 13: Connection - Picture Signal Cable
Lead the picture signal cable, connected to the daughter PCB, out of the housing at a suitable point. Connect the enclosed picture signal cable’s female 8pin connector, connected to the daughter PCB, to the male 8pin connector of the video interface. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 14: Connection - Video Sources
Connect the rear-view camera’s RCA to the female RCA „CAM“ of the video cable. Connect the RCA of the video source 1 and video source 2 to the female RCA „IN1“ and „IN2“ of the video cable. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 15: Audio-Switch And Audio-Insertion
RCA port “Audio OUT”. Connect the audio-RCA of AV-source 1 and AV source 2 to the female RCA port of the audio cable’s „Audio 1 IN“ und „Audio 2 IN“. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 16: After-Market Rear-View Camera
(87) of the relay. Connect the reverse gear light signal/power to coil terminal (85). Connect vehicle’s ground to coil terminal (86) of relay. Connect permanent battery power to input terminal (30) of relay. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 17: Connection - Video Interface And External Keypad
Note: Even if the switching through several video sources could be done be using the white wire instead of the external keypad, the keypad’s invisible connection and availability is strongly recommended. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 18: Picture Settings
IN2 and CAM share the same settings, which must be made on IN2. Note: Please adjust while a working video source is connected to the selected video-input of the interface. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 19: Video Interface Operation
0.7V - 1V Video input formats NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 160 x 25 x 102 mm (W x H x D) Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 20: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 22.11.2024 HW: FV09(V41) + FV09 V41.A / V3.4.A VL1-MBN2... -
Page 21: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
