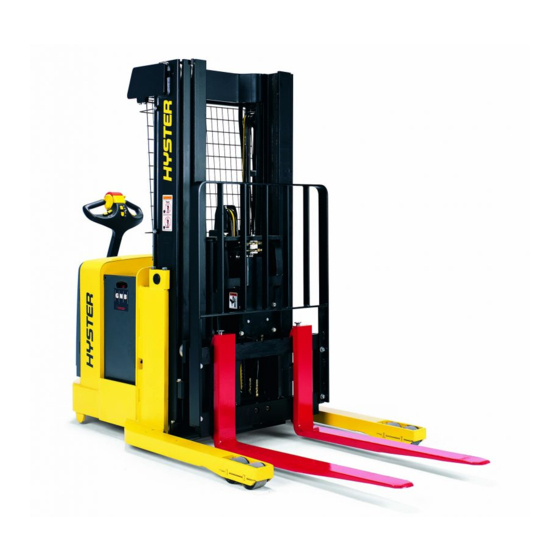

- Page 1 Hyster C455 (W20ZR, W30ZR, W40Z) Forklift Service Repair Manual...
- Page 2 DIAGRAMS W30-40ZA [B453, C453]; W20-30ZR [B455, C455]; W25-30-40ZC [B454, C454] PART NO. 1524256 8000 SRM 1029...
- Page 3 • Keep the tools clean and in good condition. • Always use HYSTER APPROVED parts when making repairs. Replacement parts must meet or ex- ceed the specifications of the original equipment manufacturer. • Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to remove parts.
- Page 4 Figure 15. Without Sideshift..........................30 Figure 16. With SideShift..........................32 Figure 17. With or Without Sideshift....................... 34 Figure 18. With Sideshift and Auxiliary......................36 This section is for the following models: (W30-40ZA) [B453, C453]; (W20-30ZR) [B455, C455]; (W25-30-40ZC) [B454, C454] ©2016 HYSTER COMPANY...
- Page 5 Thanks very much for your reading, Want to get more information, Please click here, Then get the complete manual NOTE: If there is no response to click on the link above, please download the PDF document first, and then click on it. Have any questions please write to me: admin@servicemanualperfect.com...
- Page 6 "THE QUALITY KEEPERS" HYSTER APPROVED PARTS...
- Page 7 8000 SRM 1029 Diagrams, Schematics or Arrangements THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 8 Diagrams, Schematics or Arrangements 8000 SRM 1029 W30-40ZA WITHOUT SIDESHIFT...
- Page 9 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 1. Wiring Schematic...
- Page 10 Diagrams, Schematics or Arrangements 8000 SRM 1029...
- Page 11 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 2. Wiring Diagram...
- Page 12 Diagrams, Schematics or Arrangements 8000 SRM 1029 W30-40ZA WITH SIDESHIFT...
- Page 13 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 3. Wiring Schematic...
- Page 14 Diagrams, Schematics or Arrangements 8000 SRM 1029...
- Page 15 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 4. Wiring Diagram...
- Page 16 Diagrams, Schematics or Arrangements 8000 SRM 1029 W20-30ZR WITHOUT SIDESHIFT...
- Page 17 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 5. Wiring Schematic...
- Page 18 Diagrams, Schematics or Arrangements 8000 SRM 1029...
- Page 19 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 6. Wiring Diagram...
- Page 20 Diagrams, Schematics or Arrangements 8000 SRM 1029 W20-30ZR WITH SIDESHIFT...
- Page 21 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 7. Wiring Schematic...
- Page 22 Diagrams, Schematics or Arrangements 8000 SRM 1029...
- Page 23 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 8. Wiring Diagram...
- Page 24 Diagrams, Schematics or Arrangements 8000 SRM 1029 W25-30-40ZC WITHOUT SIDESHIFT...
- Page 25 8000 SRM 1029 Diagrams, Schematics or Arrangements Figure 9. Wiring Schematic...
