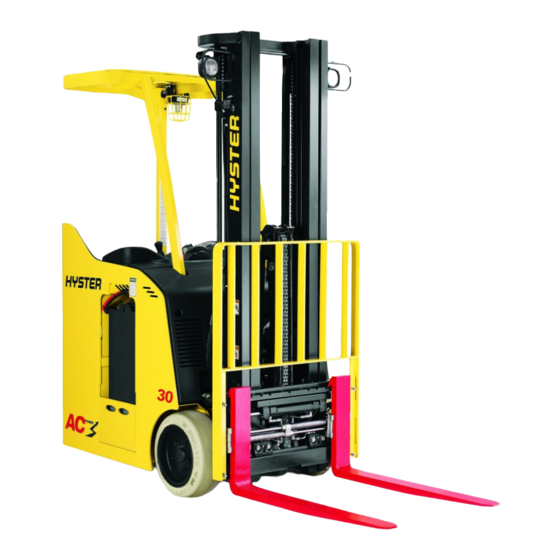

- Page 1 Hyster C219 (E30HSD3, E35HSD3, E40HSD3) Forklift...
- Page 2 USER INTERFACE - SUPERVISOR E30HSD , E35HSD , E40HSD [C219] PART NO. 4131296 2200 SRM 2023...
- Page 3 • Keep the tools clean and in good condition. • Always use HYSTER APPROVED parts when making repairs. Replacement parts must meet or ex- ceed the specifications of the original equipment manufacturer. • Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to remove parts.
-
Page 4: Table Of Contents
P1.17 4th Function In Speed ........................10 P1.18 4th Function Out Speed .........................10 P1.40 Sideshift Speed Free ........................10 Operator Passwords ............................10 Add Password ..............................11 Delete Password ............................11 Edit Password ............................... 11 Operator Password ............................11 Clear Log ............................... 11 Operator Logs ..............................11 ©2015 HYSTER COMPANY... - Page 5 Thanks very much for your reading, Want to get more information, Please click here, Then get the complete manual NOTE: If there is no response to click on the link above, please download the PDF document first, and then click on it. Have any questions please write to me: admin@servicemanualperfect.com...
- Page 6 Table of Contents TABLE OF CONTENTS (Continued) Operator 1-150 .............................. 11 Information ................................12 I1 Model .................................12 I3 Serial Number ............................12 I5 Truck Voltage ............................12 Software Versions ............................. 13 This section is for the following models: (E30HSD3, E35HSD3, E40HSD3) [C219]...
-
Page 7: General
2200 SRM 2023 General General INTRODUCTION The Common Control System (CCS) was developed to achieve a commonality of programming traits and display menus across a wide range of fork lift products. The ability to use one common programming method increases the effectiveness of the supervisor through similarity of functions when using the display interface and display menus and sub-menus. -
Page 8: Dash Display Menu Access
General 2200 SRM 2023 DASH DISPLAY MENU ACCESS Use the appropriate button on the display keypad to enter any digit between 1 and 5. The cursor will To access the dash display menu system: automatically move to the next position after a number has been entered. -
Page 9: Menu Structure
2200 SRM 2023 Menu Navigation MENU STRUCTURE Use the UP (#1) and DOWN (#3) buttons to navi- gate to the menu item allowed for your password The base menu is structured to provide access to level. Use the LEFT (#4) and RIGHT (#2) buttons the following individual menus. -
Page 10: Supervisor-Level Menu
Supervisor-Level Menu 2200 SRM 2023 Supervisor-Level Menu The Supervisor-Level menu allows a supervisor ac- a supervisor can access menu items that are not cess to the dash display menu system to view oper- visible at Operator level access. See Table 2. See ator logs, truck data, and adjust truck systems and Table 1 for the submenu choices available at the settings. -
Page 11: Hour Meters
2200 SRM 2023 Supervisor-Level Menu HOUR METERS the Hour Meters menu you can view the three dif- ferent hour meter functions. See Table 3. Scroll Hour meter data is incrementally stored in the dis- through the Hour Meters menu using the UP (#1) play during operation and the data is recorded in and DOWN (#3) buttons and press the RIGHT (#2) the Traction controller every 6 minutes. -
Page 12: H1 Truck Hours
Supervisor-Level Menu 2200 SRM 2023 H1 Truck Hours H30 Traction Node Hours The Truck Hours hourmeter accumulates time The Traction Hours hourmeter shows the total when the key switch is in the ON position and the number of hours of operation of the traction con- operator presence switch is activated. -
Page 13: Performance Level 1
2200 SRM 2023 Supervisor-Level Menu Performance Level 1 Table 5. Performance Level 1 Menu Press → P1.1 PERFORMANCE 1 Button FORWARD ↕ P1.2 REVERSE ↕ P1.3 ACCELERATION ↕ P1.4 PLUG ↕ P1.5 COAST ↕ P1.6 LIFT SPEED ↕ P1.7 LOWER SPEED ↕... -
Page 14: P1.1 Forward
Supervisor-Level Menu 2200 SRM 2023 Table 5. Performance Level 1 Menu (Continued) P1.13 TILT SPEED FREE ↕ P1.14 TILT ACCEL ↕ P1.15 TILT DECEL ↕ P1.16 SIDE SHIFT SPEED MAIN ↕ P1.17 4TH FUNC IN SPD ↕ P1.18 4TH FUNC OUT SPD ↕... -
Page 15: P1.6 Lift Speed
2200 SRM 2023 Supervisor-Level Menu P1.6 Lift Speed P1.11 Lower Decel This parameter allows the user to adjust the mast This parameter allows the user to adjust solenoid lift speed from the maximum lift speed to some deceleration while lowering from the maximum de- lower speed within the parameter range. -
Page 16: P1.17 4Th Function In Speed
Supervisor-Level Menu 2200 SRM 2023 P1.17 4th Function In Speed • Password - In the password display, you are allowed a five digit password utilizing the This parameter allows the user to adjust the maxi- numbers 1 through 5 (zero is not a valid mum 4th Function In speed. -
Page 17: Add Password
2200 SRM 2023 Supervisor-Level Menu Table 6. Operator Password Menu (Continued) CLEAR LOG Add Password Clear Log Use this menu to add operator passwords. To enter Use this screen to clear all stored information from a new password at the Passwords screen, enter the the operator log. -
Page 18: Information
Supervisor-Level Menu 2200 SRM 2023 INFORMATION through the Information menu using the UP (#1) and DOWN (#3) buttons and press the RIGHT (#2) The Information menu displays specific information button to enter the desired selection. Press the about the lift truck. The parameters are installed LEFT (#4) button to return to the previous menu. -
Page 19: Software Versions
2200 SRM 2023 Supervisor-Level Menu SOFTWARE VERSIONS Displays truck software version. This truck auto- matically coordinates the software of all nodes. One software version number is used to indicate the to- tal truck software. Table 9. Software Versions SOFTWARE VERSIONS Press →... - Page 20 NOTES...
