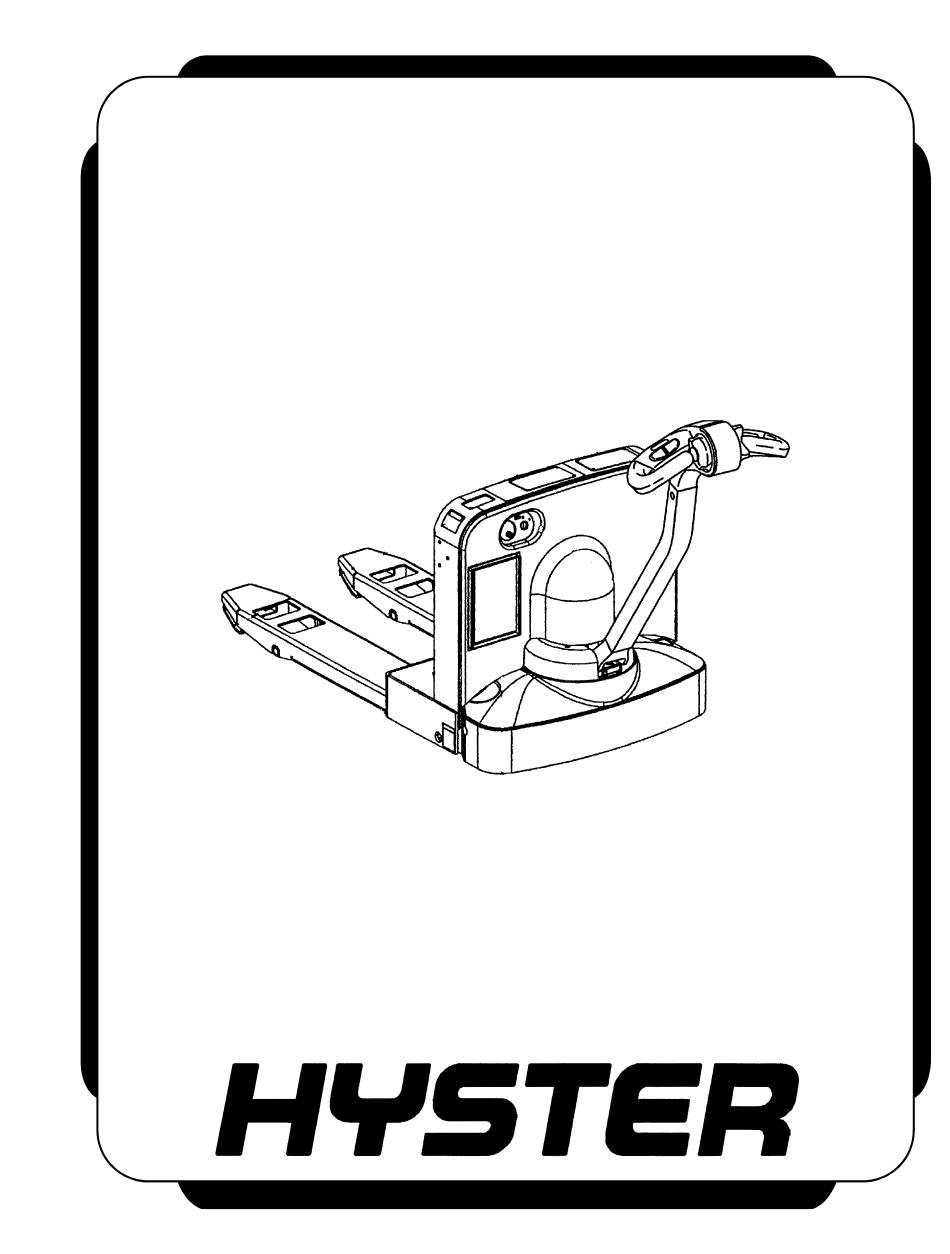

- Page 1 CAPACITIES AND SPECIFICATIONS W40Z [B218]; W45Z [C215]; W50Z [D215] PART NO. 1499833 8000 SRM 1010...
- Page 2 • Use the correct tools for the job. • Keep the tools clean and in good condition. • Always use HYSTER APPROVED parts when making repairs. Replacement parts must meet or exceed the specifications of the original equipment manufacturer. • Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to remove parts.
-
Page 3: Table Of Contents
Battery Specifications and Adjustments ......................4000 LB - 24 Volt ............................4500 - 12 Volt ..............................4500 and 5000 LB - 24 Volt ........................... This section is for the following models: W40Z [B218]; W45Z [C215]; W50Z [D215] ©2006 HYSTER COMPANY... - Page 4 "THE QUALITY KEEPERS" HYSTER APPROVED PARTS...
-
Page 5: Hydraulic Oils
8000 SRM 1010 Hydraulic Oils Hydraulic Oils W40/45Z (and W50Z Standard Construction Only) Type For All Hydraulically Actuated Equipment Ambient Air Temp. Condition Normal Cold Storage Anticipated Ambient Air 0 to +43 C (+32 to +109 F) 0 to 32 C (+32 to 26 F) Temperature Range Actual Useable Operation Oil... -
Page 6: Gear Oils
No Product Union 76 Unocal MP Gear Lube LS 80W/90 No Product Field Personnel Note: The products listed above are the approved sources that meet or exceed HYSTER specifications. The use of products other than that listed above is unauthorized. -
Page 7: Grease
288 C (550 F) 288 C (550 F) Field Personnel Note: The product listed above is the approved source that meets or exceeds HYSTER specifications. The use of products other than that listed above is unauthorized. Required for W50Z - Cold Storage/Arctic Packages... -
Page 8: Hydraulic System
Weight 8000 SRM 1010 Hydraulic System Operating Pressure Ampere Draw Relief Setting Truck Size Volts Pressure No Load Rated Load No Load Rated Load Amp Draw 4000lb 2.1 MPa 7.7 MPa 17.15 MPa (300 psi) (1800 psi) (2450 psi) 4500lb 3.85 MPa 12.6 MPa 19.6 MPa... -
Page 9: Tires
8000 SRM 1010 Battery Specifications and Adjustments Tires Weight and Voltage Drive Tire Load Wheel 4000 lb 9 × 4 in. 3.25 × 4.5 in. 4500 lb, 12 Volts 9 × 4 in. 3.25 × 4.5 in. 4500 lb, 24 Volts 9 ×... -
Page 10: 4500 - 12 Volt
Battery Specifications and Adjustments 8000 SRM 1010 Figure 1. Battery Compartment Recom- Com- Ampere Kilowatt Com- mended Number of partment Weight Cell Size Hours Hours partment Cells Width (Y) Height (Max) (Max) (Max) Length (X) (Max) (Max) Standard Battery Pack 721.4 mm 200.7 mm 607 mm... -
Page 11: 4500 And 5000 Lb - 24 Volt
8000 SRM 1010 Battery Specifications and Adjustments Recom- Com- Ampere Kilowatt Com- Number of partment mended Weight Cell Size Hours Hours partment Cells Width (Y) Height (Max) (Max) (Max) Length (X) (Max) (Max) 792.5 mm 198 mm 591.8 mm 232 kg (31.2 in.) (7.8 in.) (23.3 in.) - Page 12 NOTES ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
- Page 14 TECHNICAL PUBLICATIONS 8000 SRM 1010 10/06 (9/05)(1/02) Printed in U.S.A.
