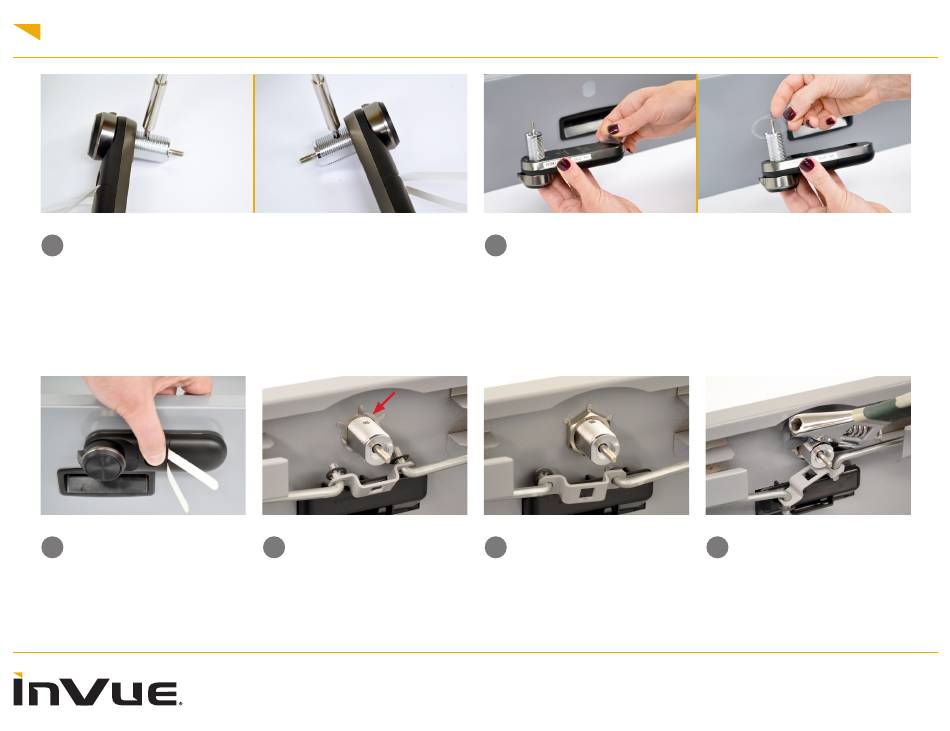

LIVE Cam Lock LL301
6
Insert and tighten the 2 small screws to secure the shaft adapter.
8
Insert the shaft through the hole
in the drawer. Press the lock body
against the surface for at least 10
seconds.
Note: If using the optional security
screw, insert and tighten the M4
screw through the drilled hole
(step 3c).
9
Place the lock washer over the
shaft.
7
Peel the clear liners from the 2 adhesives on the lock body.
10
Thread the nut onto the shaft.
2
11
Use a wrench to tighten the nut.
