  • Page 1 Universal Lock (For 6 mm panels) PL106...

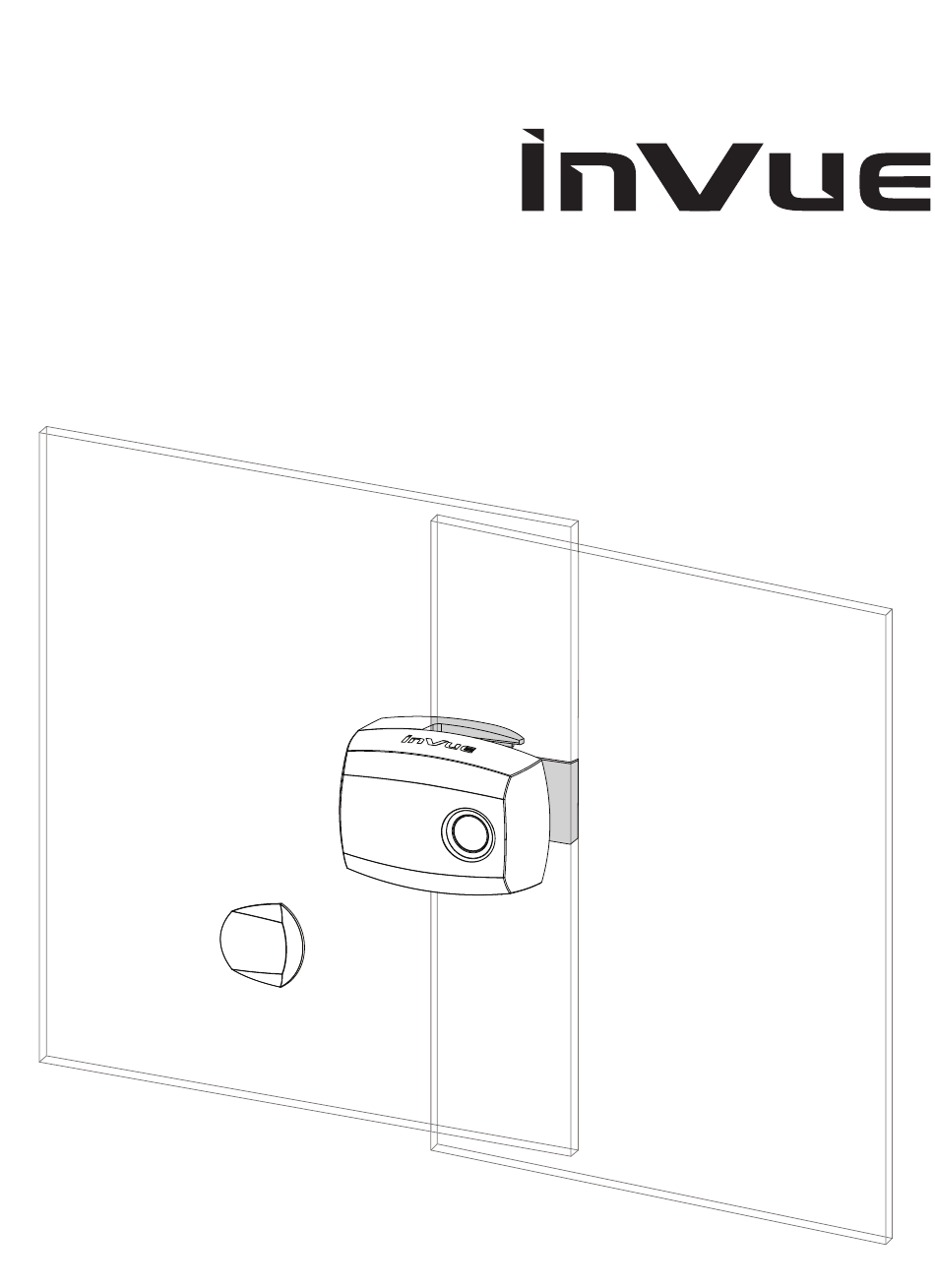

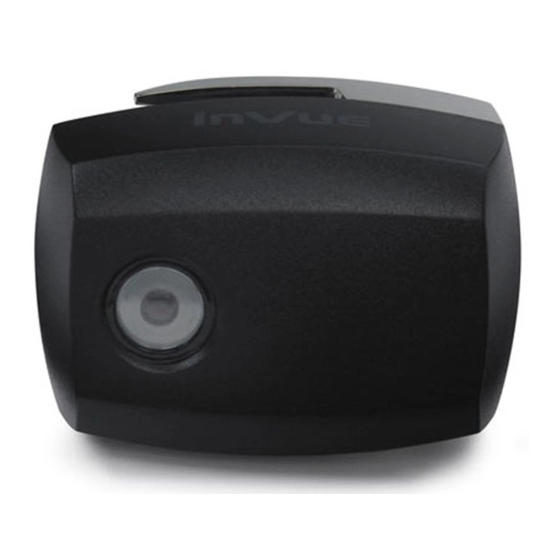

  • Page 2 OVERVIEW Review entire instruction guide before starting installation. System Components 1. Universal Lock & Panel Handle (PL106) 2. Strike Plate (PL120)* Universal 3. IR2 Key (PK4400) Lock (PL106) Strike Plate (PL120) Setup in 4 easy steps: 1. Mount strike place onto back panel Panel 2.
  • Page 3 Determine if the front panel is on the left or right hand Fully close panels. Insert correctly sized strike plate side. Note: The illustrations in this booklet are for behind front panel where lock will be positioned. Use right front panel orientation. For left front panel sizing tool (PL156) or strike plate selection guide below cabinet install in opposite direction.
  • Page 4 Push tab 2 firmly against edge of front panel while Break off tab 2 by pulling firmly on leading edge. SLOWLY pulling tab 1. Discard tab 2. PUSH FIRMLY PULL LEADING SLOWLY EDGE TAB 2 Press tab 2 towards back panel and hold for 10 seconds.
  • Page 5 Slide lock onto edge of front panel and over strike Push lock firmly against edge of front panel while plate. Important! Tab 3 should remain on outside of SLOWLY pulling tab 3. front panel. PUSH PULL SLOWLY FIRMLY TAB 3 TAB 3 After tab 3 has been removed, press lock against front panel for 10 seconds to set adhesive.
  • Page 6 Open and close panels to ensure lock and strike plate Open panel. Peel away tab 4 on back side of strike engage smoothly. plate. TAB 4 Tightly wrap strap around back panel. Firmly press LOCK entire surface of strap to ensure full contact with panel. Repeat and press down entire surface 10 times.
  • Page 7 Fully close panels. Position template against lock body. Note: Panel Handle can be installed above or below lock. Remove clear film on panel handle. Position handle inside template and press for 10 seconds against panel to set adhesive. RIGHT FRONT PANEL PANEL HANDLE...
  • Page 8 LOCK STATUS INDICATORS Use panel handle to ensure glass panels are fully closed. Position IR2 Key* against lock, push button and wait for “beep” before removing key. Lock and unlock product several times to ensure proper operation. Unlocked *IR2 Key must be charged and activated.
  • Page 9 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.9000.3957 © 2012 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
