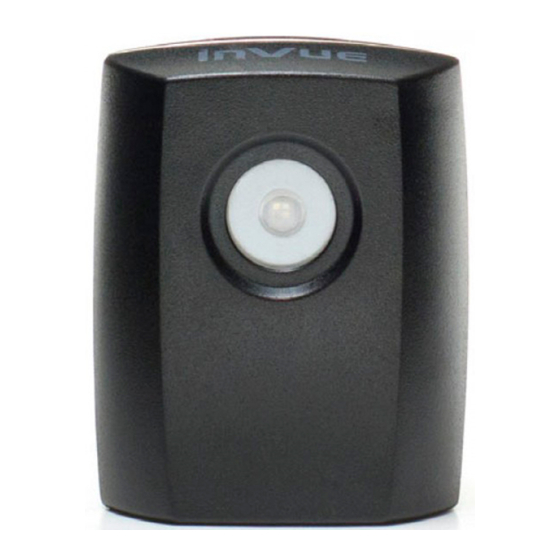

Summary of Contents for inVue PL401

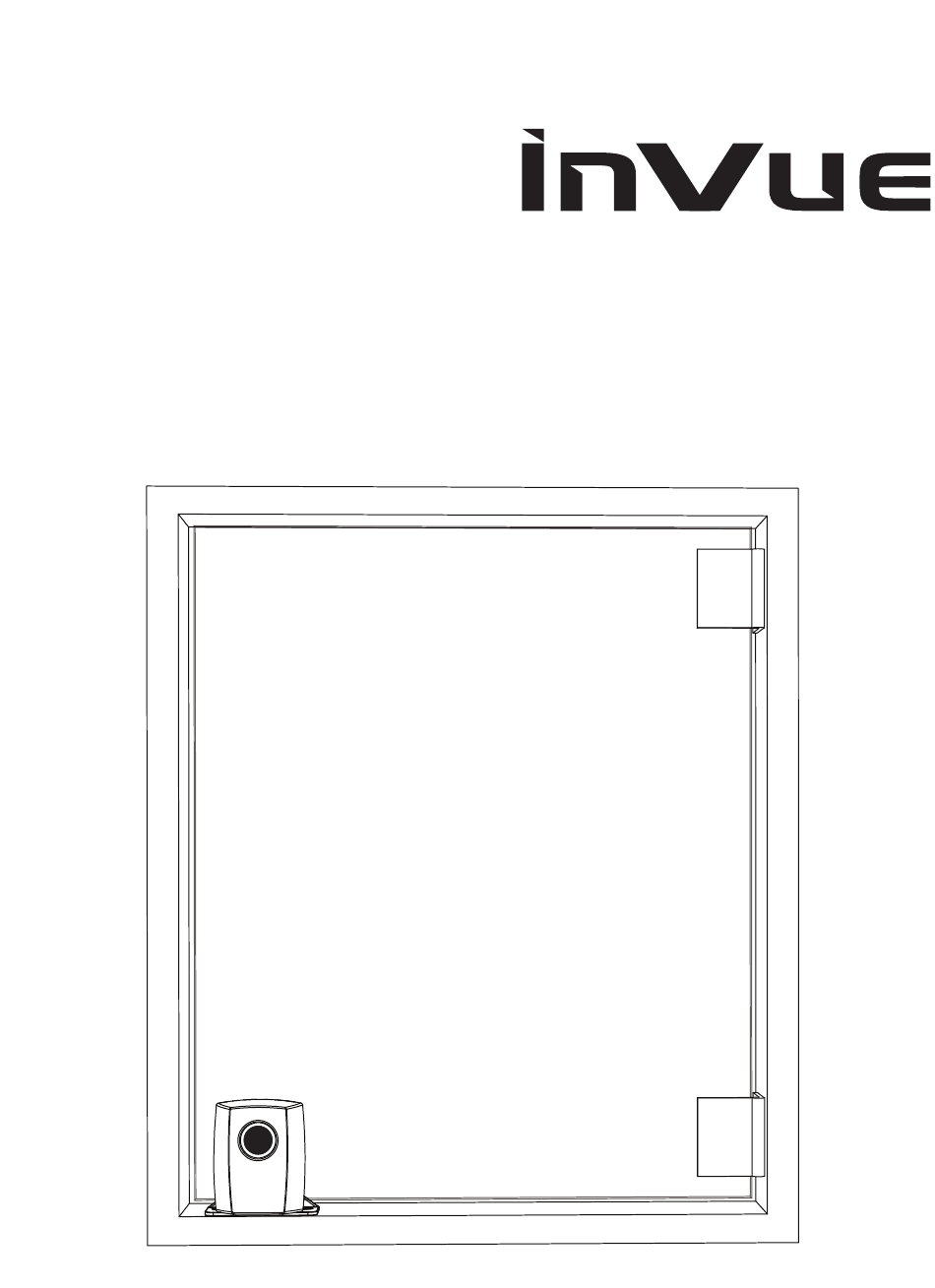

  • Page 1 Smart Lock Showcase Lock PL401...
  • Page 2 12.7 mm (0.5”). Showcase Lock Base Plate System Components PL401 (Included with PL401) 1. Showcase Lock (PL401) 2. Base Plate & Base Plate Template (included) 3. Alcohol Wipe (included) 4. IR2 Key (PK4400) Tool Requirements 1. Pencil 2. Power Drill and Bit 3.

  • Page 3: Lock Assembly

    LOCK ASSEMBLY Determine location of lock. Align template with front Lock should be positioned on swing-out end of panel door of glass and mark drill holes and routed pocket to as- (opposite hinges). semble lock base. Note: Illustrations in this guide are for installations with lock positioned Note: Illustrations below shows top view of cabinet.
  • Page 4 Use router tool to route pocket a minimum depth of Attach base plate to cabinet with 3 wood screws pro- 12.7 mm (0.5”). Use a 2 mm (0.08”) drill bit for 3 screw vided and a screwdriver. Bottom of base plate should holes.
  • Page 5 Wipe front of panel with alcohol wipe where you intend Slide lock body onto glass panel. Close glass panel to mount lock. Allow alcohol to air dry for a mini- and test fit lock body into lock base. Confirm proper fit/ mum of 5 minutes or dry alcohol with lint free cloth alignment.
  • Page 6 Lightly hold lock body in position and remove Test lock to confirm proper function. Use IR2 Key to numbered tabs in order (#1 then #2). Press lock against lock/unlock installation (see page 12). glass panel for at least 10 seconds. Tab 1 Tab 2...
  • Page 7 LOCK OPERATION USING IR2 KEY LOCK STATUS INDICATORS Position IR2 Key against lock, push button and wait for “beep” before removing key. Lock and unlock cabinets several times to ensure proper operation. Unlocked IR2 Key must be charged and activated. See IR2 Key instruction guide.
  • Page 9 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
