inVue L410 Quick Start Manual

L410 Sounder Lock
PL801 -SOUND

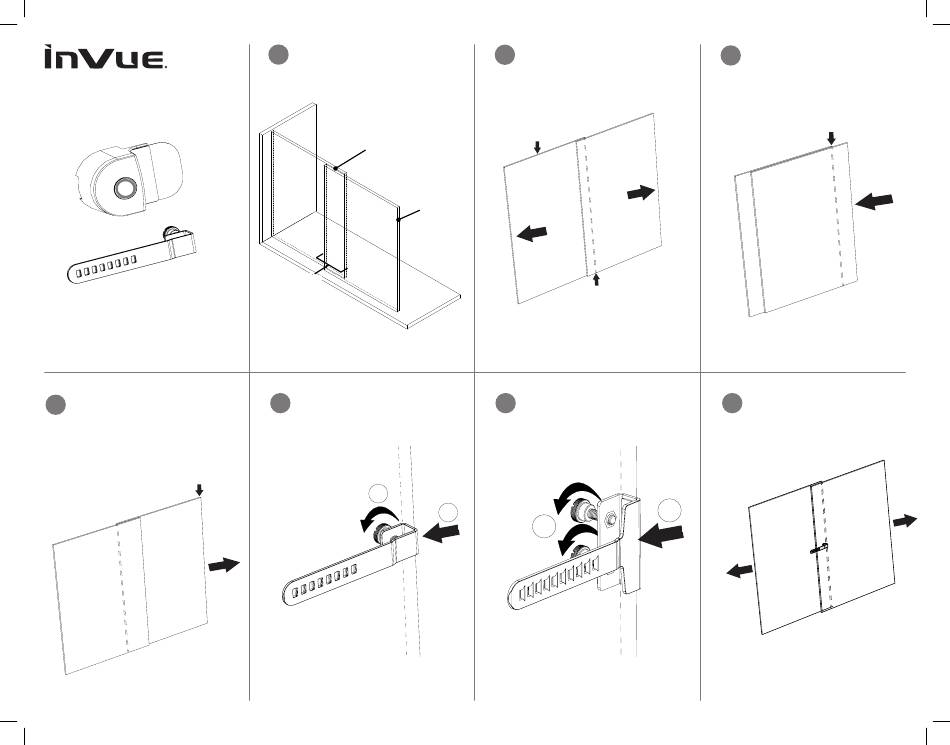

Move the inner panel out to have
4
access to the hidden edge of the
inner glass panel.
Hidden Edge
Determine that the fixture meet the
1
below specifications. if it does not, DO
NOT MOUNT THE L410.
Glass Gap
Range:
4.5-11.5 mm
Glass
Thickness:
4.8-8 mm
Glass Overlap
Range:
22-110 mm
5a
Slide strike plate over the edge of
inner panel. Tighten screw.
2
1
Fully close both glass panels and
2
identify the inner glass panel.
Inner Panel
Hidden Edge
5b
If using the wide attachment strike
plates (PL820-11 or PL820-21),
tighten both screws.
1
2
Open the outer panel fully.
3
Hidden Edge
6
Fully close both glass panels.
